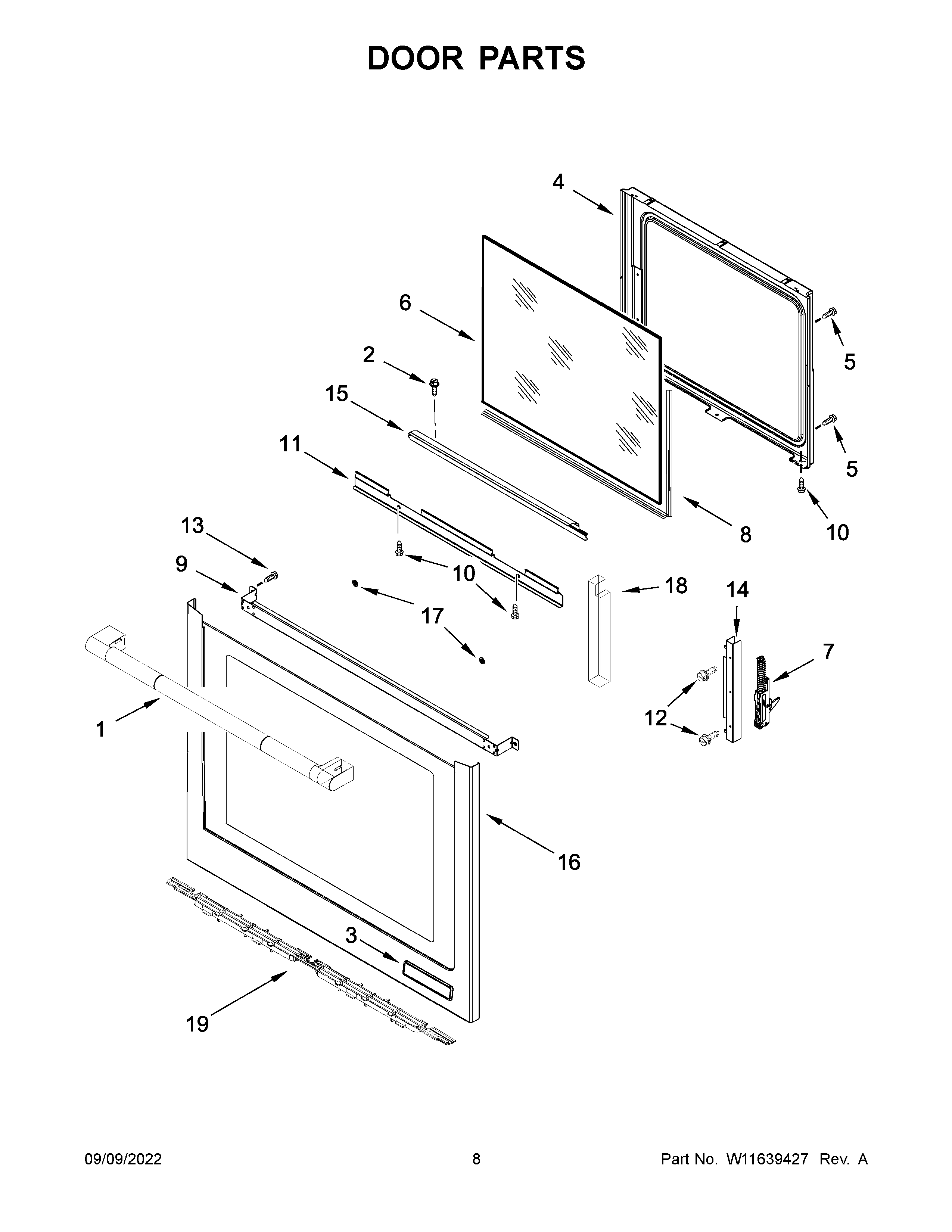

JES1750ML0 05 – DOOR PARTS

Products

PositionProduct
1ASSEMBLY, DOOR HANDLE (STAINLESS)
2W11245710 Whirlpool Refrigerator Screw
3W11700312 Whirlpool Nameplate
4W10902192 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6W11339500 Whirlpool Door Glass
7W11647009 Whirlpool Door Hinge
8W11673273 Whirlpool Spacer Glass
9W10541911 Whirlpool Mounting Bracket
10WP355214 Whirlpool Screw
11W10813140 Whirlpool Glass Bracket
12W10777162 Whirlpool Screw
13WP8533988 Whirlpool Screw Fastener
14W11744483 Whirlpool Support
15W11251351 Whirlpool Vent Trim
16W11647013 Whirlpool Door Glass
17W11676355 Whirlpool Washer
18W11025151 Whirlpool Insulation
19BOTTOM, DOOR COVER
