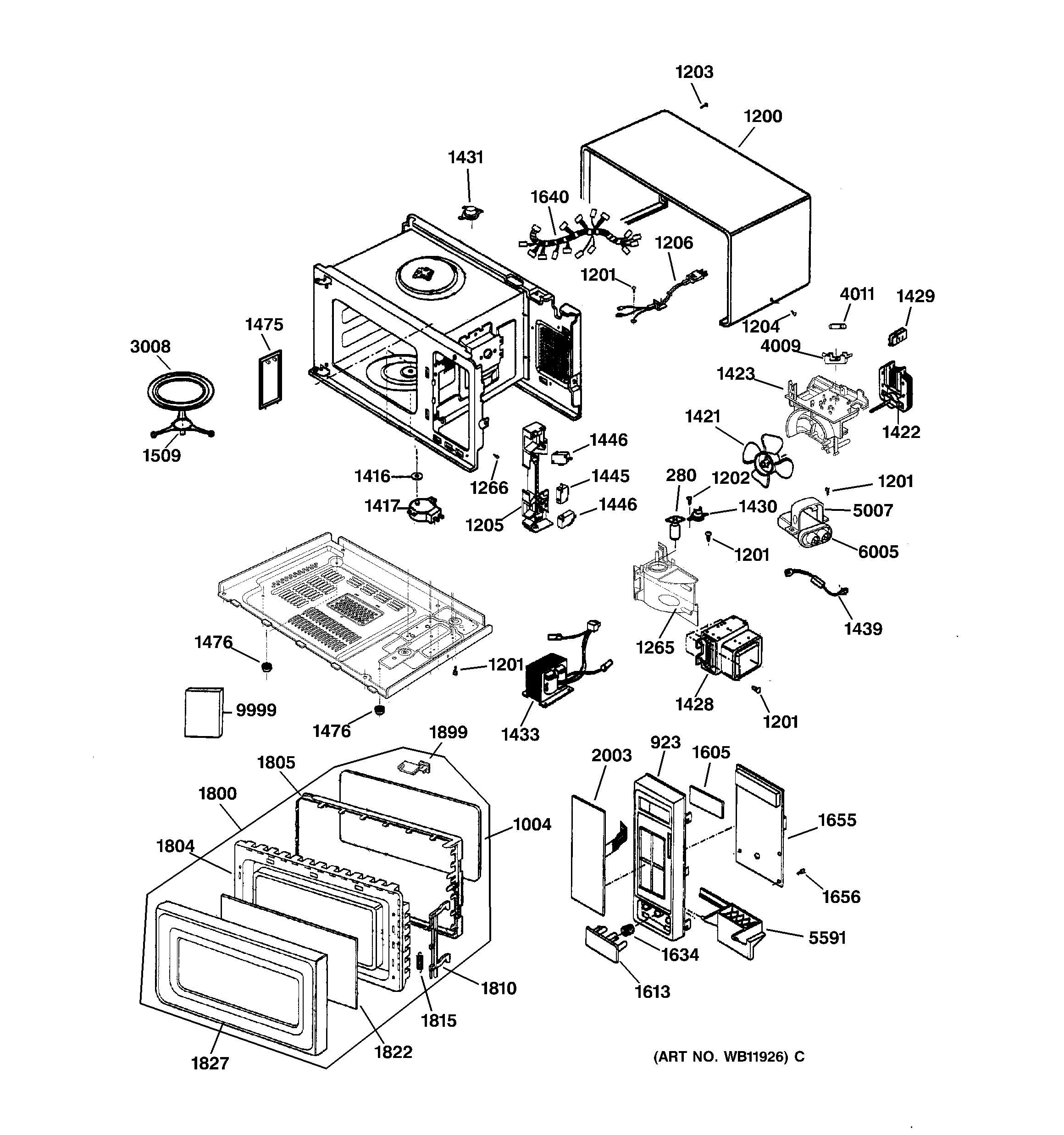

JES735WD001 MICROWAVE PARTS

Products

Position	Product
280	WB36X10063 GE Microwave Lamp
923	GEN WB07X10428
1004	GEN WB55X10015
1200	GEN WB56X10203
1201	WB02X10745 GE Binding Head Screw
1202	GEN WB02X10752
1203	WB02X10727 GE Screw
1204	WB1X1511 GE Screw
1205	GEN WB06X10084
1206	POWER CORD ASS'Y
1265	GEN WB38X10053
1266	WB01X10121 GE Oven Screw
1416	GEN WB02X10751
1417	MOTOR, TURNTABLE
1421	FAN
1422	GEN WB26X10096
1423	GEN WB38X10052
1428	GEN WB27X10463
1429	INSULATOR
1430	GEN WB24X10073
1431	GEN WB24X10074
1433	GEN WB27X10464
1439	DIODE ASSY,DIODE+CAB
1445	GEN WB24X10071
1446	PRIMARY INTERLOCK SWITCH
1475	WB06X10764 GE Oven Cover Assembly (Resin)
1476	GEN WB06X10307
1509	ROLLER GUIDE ASS'Y
1605	DIGITRON COVER
1613	GEN WB03X10124
1634	WB09X10006 GE Oven Button Spring
1640	GEN WB18X10148
1655	GEN WB27X10465
1656	WB02X10729 GE Oven Main PCB Assembly Screw
1800	DOOR ASS'Y
1804	GEN WB55X10422
1805	GEN WB55X10432
1810	GEN WB06X10085
1815	SPRING,ALL
1822	GEN WB55X10423
1827	GEN WB55X10426
1899	CAP,MWO
2003	GEN WB27X10039
3008	GEN WB49X10010
4009	GEN WB06X10205
4011	GEN WB27X1089
5007	BRACKET,HVC
5591	LEVER,RELEASE
6005	CAPACITOR, H.V.
9999	GEN 49-40014
9999	GEN 31-20962
