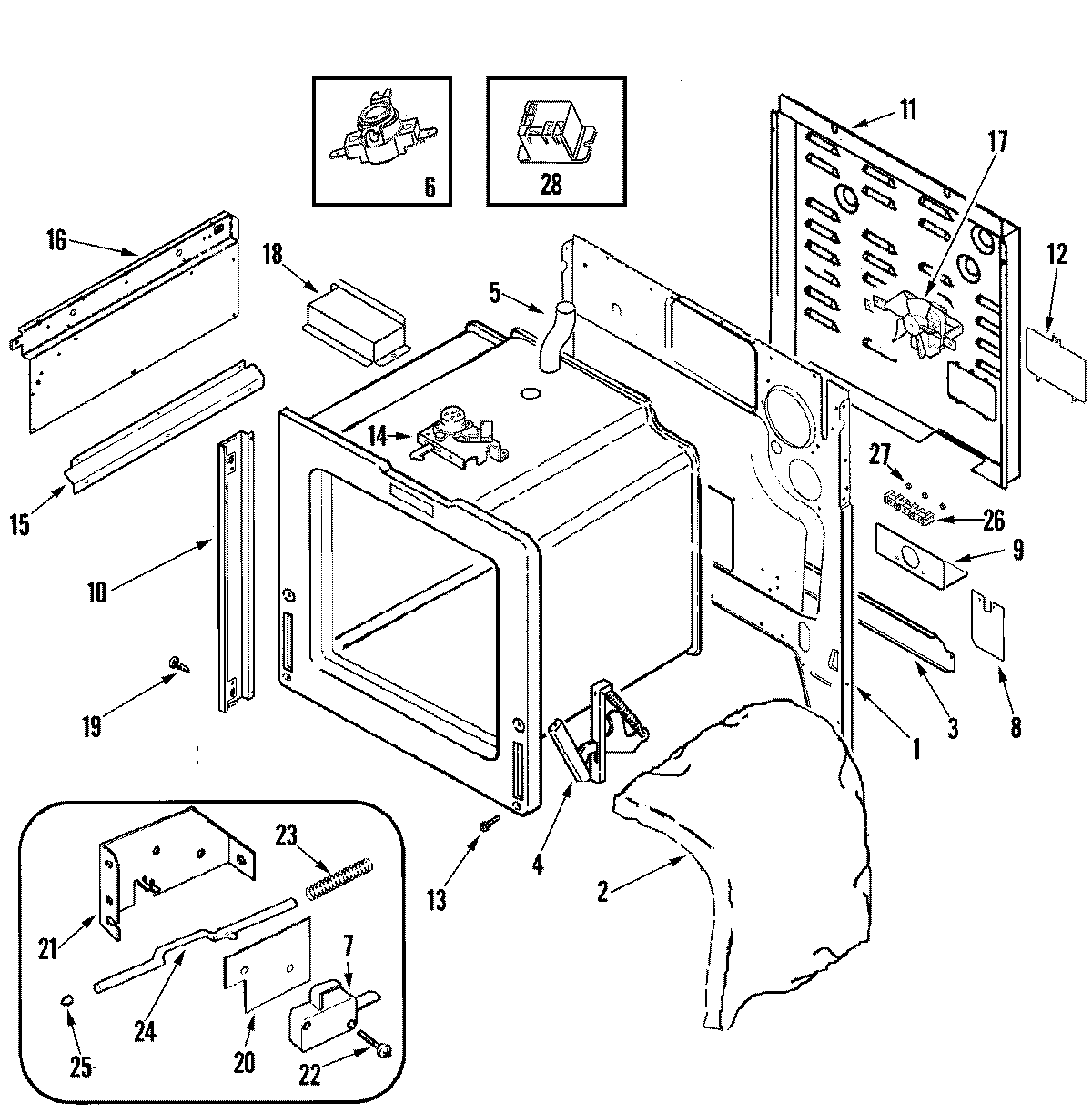

JES8750BAB 01 – BODY

JES8750BAB 01 – BODY

Written by

in

JES8750BAB 01 – BODY

Products

PositionProduct
1BACK, MAIN
2MAY 74011480
3EXTENSION, MAIN BACK
474011475 Whirlpool Range Oven Door Hinge Assembly
5MAY 74011486
6MAY 74010818
7SWTCH-LITE
7WP74008263 Whirlpool Door Switch
8INSULATOR, POWER CORD
9MAY 74011488
10WP3608F138-70 Whirlpool Side Trim
114005F810-51 Whirlpool Access Cover
12COVER, TERMINAL BLOCK
13WP4159193 Whirlpool Screw
1474010819 Whirlpool Latch Assembly
15EXTENSION, HEAT SHEILD
16MAY 74011484
162618F206-51 Whirlpool Panel
17WPW10586440 Whirlpool Blower Fan
18COVER, DOOR LATCH
19WP74003976 Whirlpool Screw
20MAY 74008264
21BRACKET, SWITCH ACTUATOR
22MAY 22002368
24ROD, DOOR LIGHT SWITCH
25MAY 74001631
26WPW10245259 Whirlpool Terminal Block
27WP7103P027-60 Whirlpool Nut
