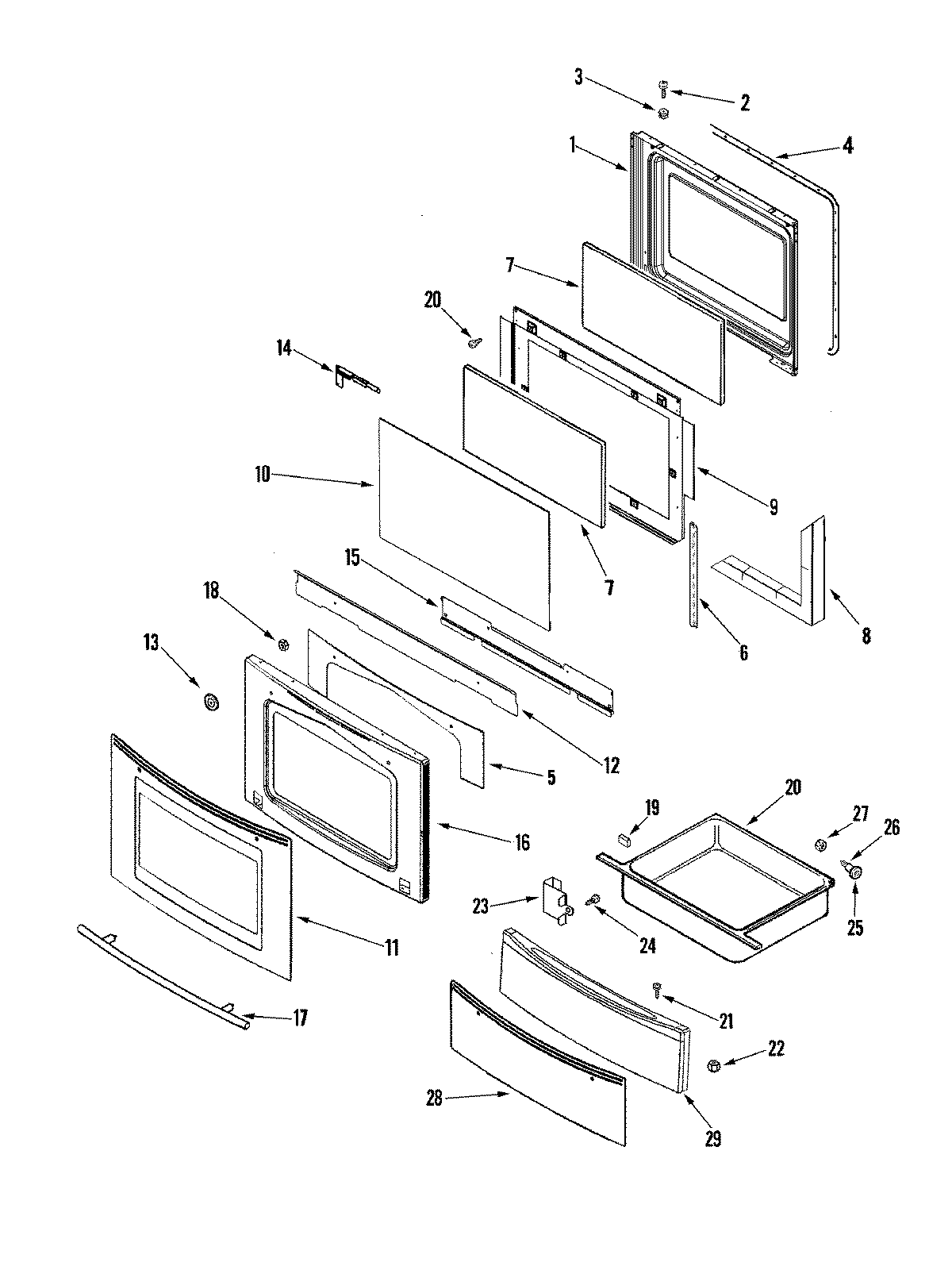

JES8750BAB 04 – DOOR/DRAWER (SER PRE 11)

Products

Position	Product
1	LINING, DOOR
2	WP98008545 Whirlpool Screw
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
5	MAY 74011509
6	3801F886-51 Whirlpool Mounting Bracket
7	74003645 Whirlpool Range Oven Door Inner Glass
8	INSULATION, OVEN DOOR
9	3601F373-51 Whirlpool Baffle
10	GLASS, DOOR (INNER/COATED)
11	MAY 74011511
12	MAY 74011049
13	MAY 74009194
14	MAY 74011463
14	MAY 74011797
15	MAY 74011464
16	MAY 74011507
17	WP74008625 Whirlpool Door Handle
18	WP3400029 Whirlpool Dishwasher Nut
19	WP74005546 Whirlpool RU Spacer
20	DRAWER, STORAGE
21	SCREW
22	74005230 Whirlpool Oven Lock Nut (8-32)
23	MAY 74010896
24	SCREW, 8 X 1/2
25	WP74004078 Whirlpool Door Roller
26	SHAFT, STORAGE DRAWER ROLLER
27	WP488130 Whirlpool Air Conditioner Nut
28	SCREW (8BX3/8-NI)
28	MAY 74011543
29	WP2416F086-70 Whirlpool Panel Assembly
