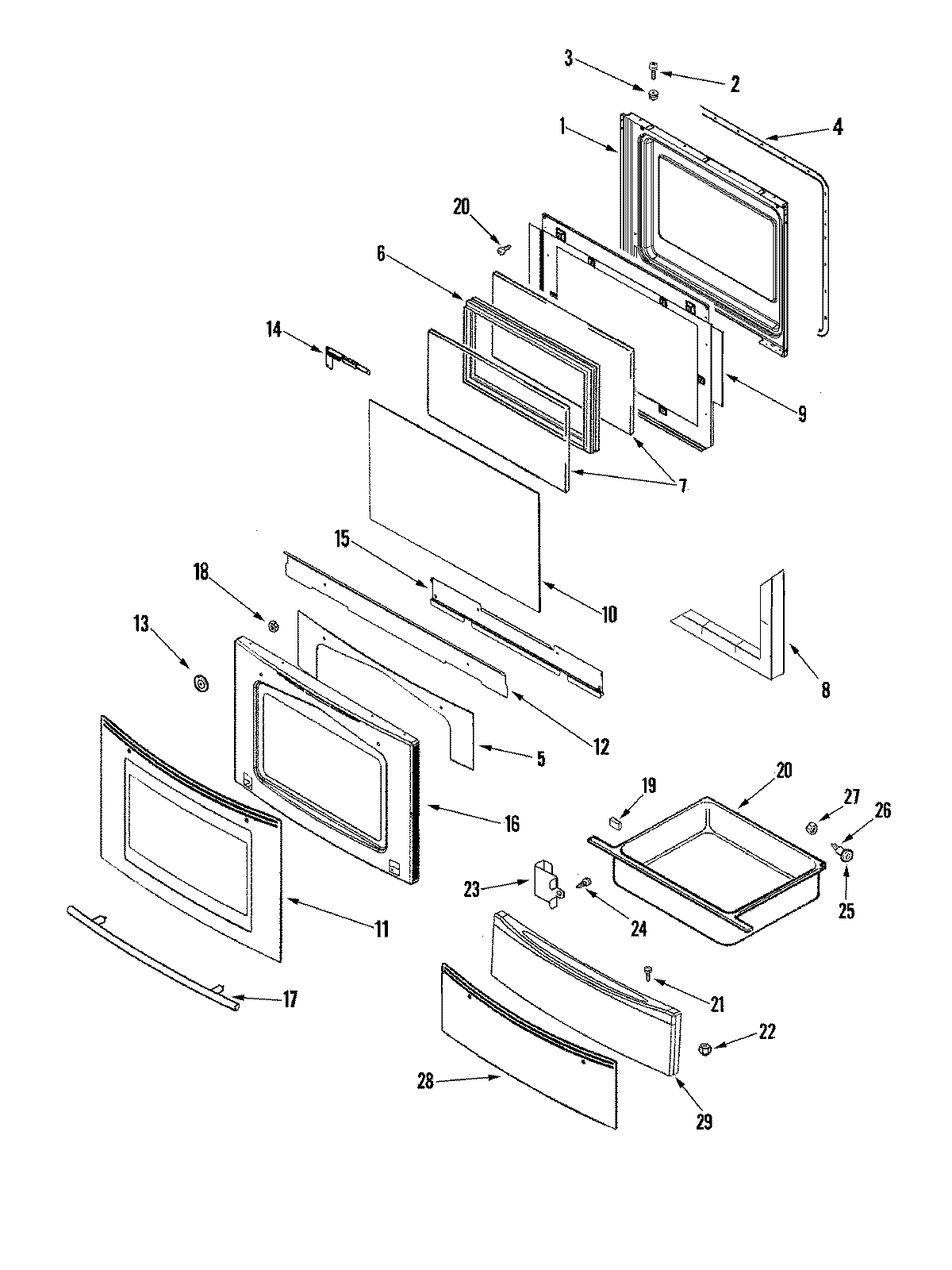

JES8750BAF 03 – DOOR/DRAWER (SER PRE 10)

JES8750BAF 03 – DOOR/DRAWER (SER PRE 10)

Written by

in

JES8750BAF 03 – DOOR/DRAWER (SER PRE 10)

Products

PositionProduct
1MAY 74003642
2WP98008544 Whirlpool Screw Assembly
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5MAY 74011509
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8INSULATION, OVEN DOOR
9MAY 74011339
10GLASS, DOOR (INNER/COATED)
11MAY 74011510
12MAY 74011049
13MAY 74009194
14MAY 74011504
14MAY 74011503
15MAY 74007215
163603F075-71 Whirlpool Door Frame
17WP74008625 Whirlpool Door Handle
18WP3400029 Whirlpool Dishwasher Nut
19WP74005546 Whirlpool RU Spacer
20DRAWER, STORAGE
21SCREW
2274005230 Whirlpool Oven Lock Nut (8-32)
23MAY 74010896
24SCREW, 8 X 1/2
25WP74004078 Whirlpool Door Roller
26SHAFT, STORAGE DRAWER ROLLER
27WP488130 Whirlpool Air Conditioner Nut
28MAY 74011544
28SCREW (8BX3/8-NI)
29MAY 74011642
