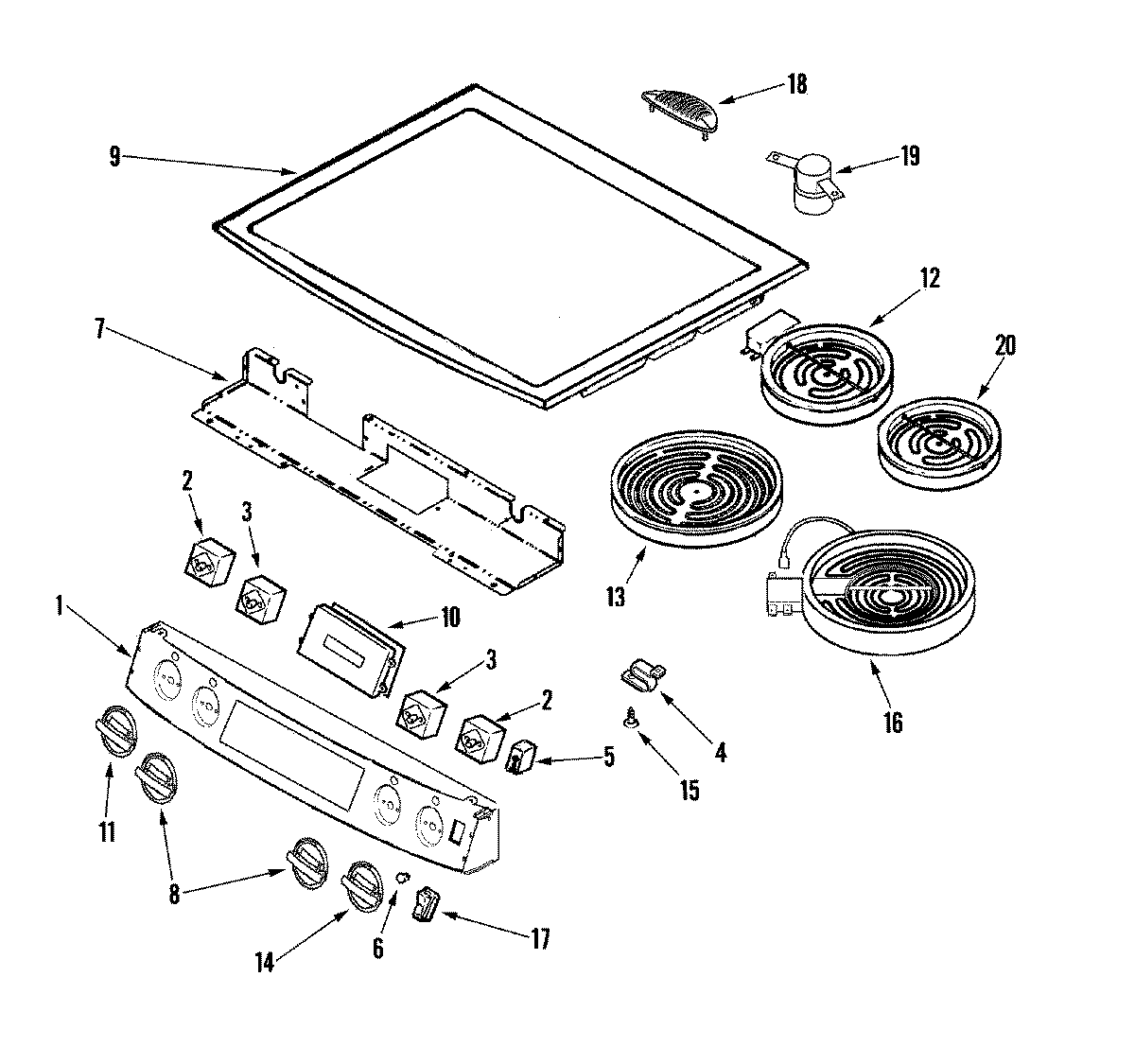

JES8750BAS 02 – CONTROL PANEL/TOP ASY

JES8750BAS 02 – CONTROL PANEL/TOP ASY

Written by

in

JES8750BAS 02 – CONTROL PANEL/TOP ASY

Products

PositionProduct
1MAY 74011715
2SWITCH-ELMNT
3WP7403P238-60 Whirlpool Infinite Switch (Small Element)
4MAY 74007845
5WP74004153 Whirlpool Indicator Light
6WP22001948 Whirlpool Indicator Lens
7MAY 74011761
8WP74011493 Whirlpool Burner Knob
9MAY 74011716
10WP8507P225-60 Whirlpool Electronic Control Board
10WP59002061 Whirlpool Microwave Screw
11WP74011550 Whirlpool Stove Burner Control Knob
12MAY 74008573
13W10823692 Whirlpool Dual Radiant Element
14WP74011631 Whirlpool Burner Knob Stainless Steel
15SCREW (6ABX.25-ZN)
16W10823718 Whirlpool Surface Element
17SWITCH, ROCKER (BLK)
18MAY 74011632
19TUBE, VENT (UPR)
20MAY 74011620
