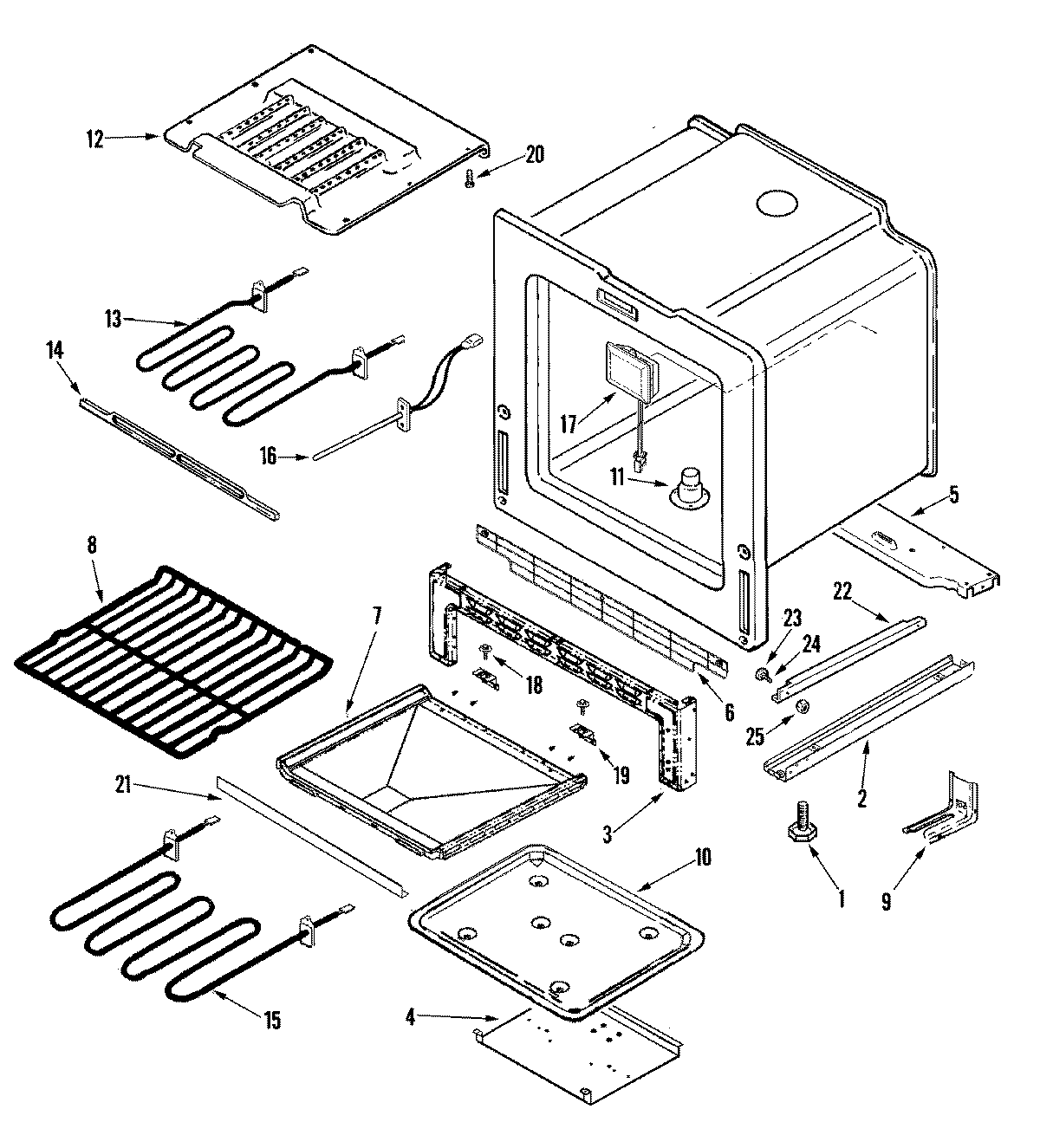

JES8750BAS 05 – OVEN/BASE

Products

Position	Product
1	WP74010805 Whirlpool Screw
2	4020W035-80 Whirlpool Bottom PE
3	PEDESTAL, FRONT
4	MAY 74006591
5	SUPPORT, VALVE REGULATOR
6	MAY 74011482
7	MAY 74010853
8	WPW10282492 Whirlpool Oven Rack
9	WP7101P485-60 Whirlpool Anchor Tip
9	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
10	MAY 74010806
11	PLATE, VENT COVER
11	MAY 74010808
12	MAY 74008408
13	MAY 74011479
14	MAY 74003563
15	WP7406P411-60 Whirlpool Bake Element
16	12001656 Whirlpool Range Oven Temperature Sensor
17	MAY 74011220
18	WP74003976 Whirlpool Screw
19	MAY 74010812
20	MAY 74010505
21	MAY 74010807
22	RUNNER, DRAWER
23	WP74004078 Whirlpool Door Roller
24	SHAFT, STORAGE DRAWER ROLLER
25	74005230 Whirlpool Oven Lock Nut (8-32)
