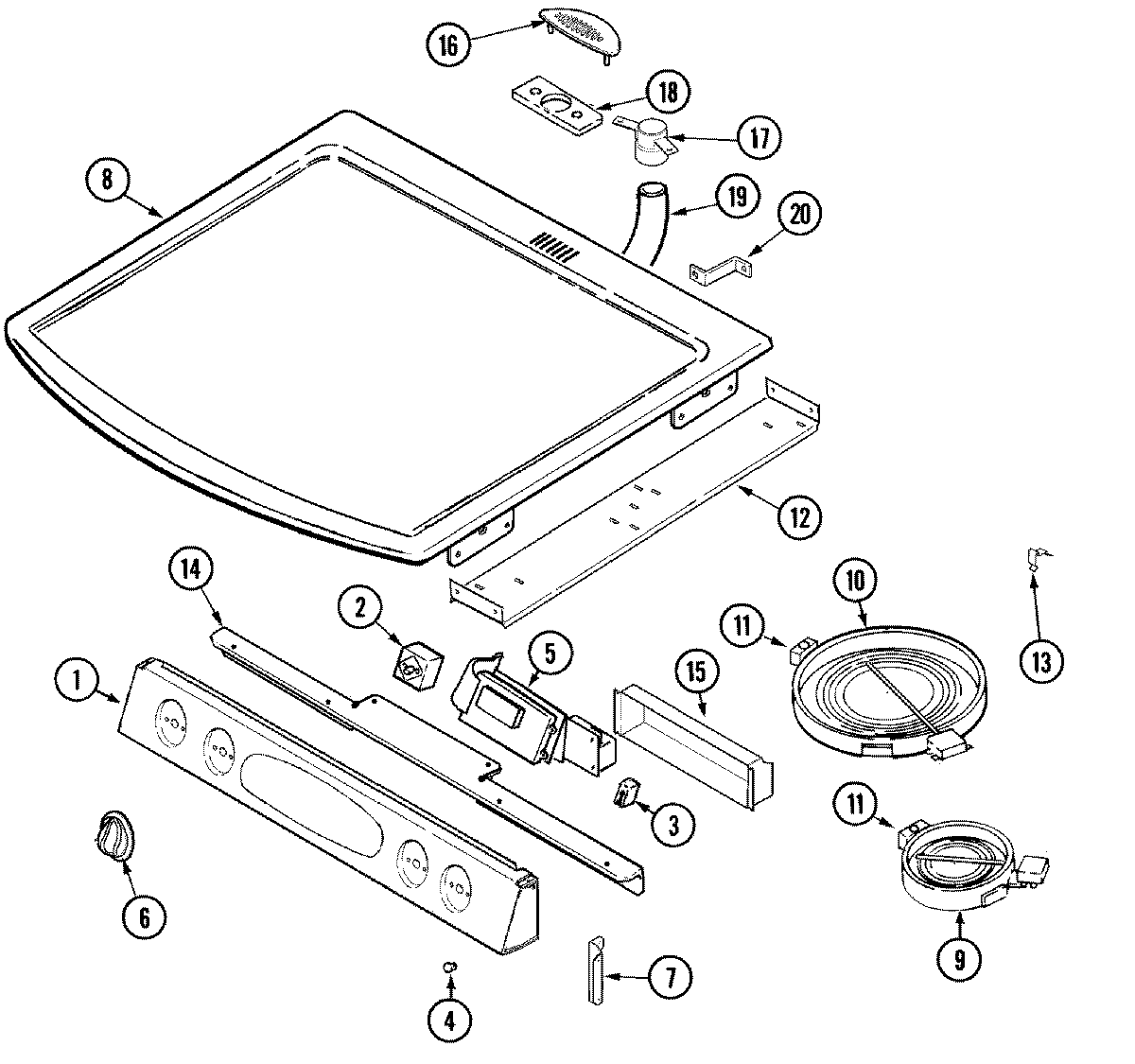

JES8850AAB 02 – CONTROL PANEL/TOP ASSY

Products

Position	Product
1	MAY 74005742
2	SWITCH-INF
2	MAY 71003201
2	12002125 Whirlpool Range Oven Cooktop Dual Infinite Burner Switch Kit
3	MAY 7407P100-60
4	WP22001948 Whirlpool Indicator Lens
5	MAY 74006358
5	MAY 74009316
5	MAY 74007369
5	MAY 74005731
6	MAY 74005706
6	MAY 74005708
7	SCREW (8ABX1/2``-BLK)
7	MAY 74005729
8	MAY 74005714
9	W10823711 Whirlpool Surface Element Left Front and Right Rear
9	MAY 74007123
9	MAY 74008573
9	MAY 74008574
10	W10823710 Whirlpool Surface Element
10	MAY 74008575
10	MAY 74007218
11	MAY 71003486
12	SCREW
12	MAY 74005760
13	SPRING, ELEMENT SUPPORT
14	SCREW (8BX3/8-NI)
14	MAY 74005756
15	SCREW
15	MAY 74005755
16	MAY 74005757
16	7103P166-60 Whirlpool Nut
17	TUBE, VENT (UPR)
18	MAY Y04100462
19	MAY 74005726
20	MAY 74005776
24	MAY 74007232
