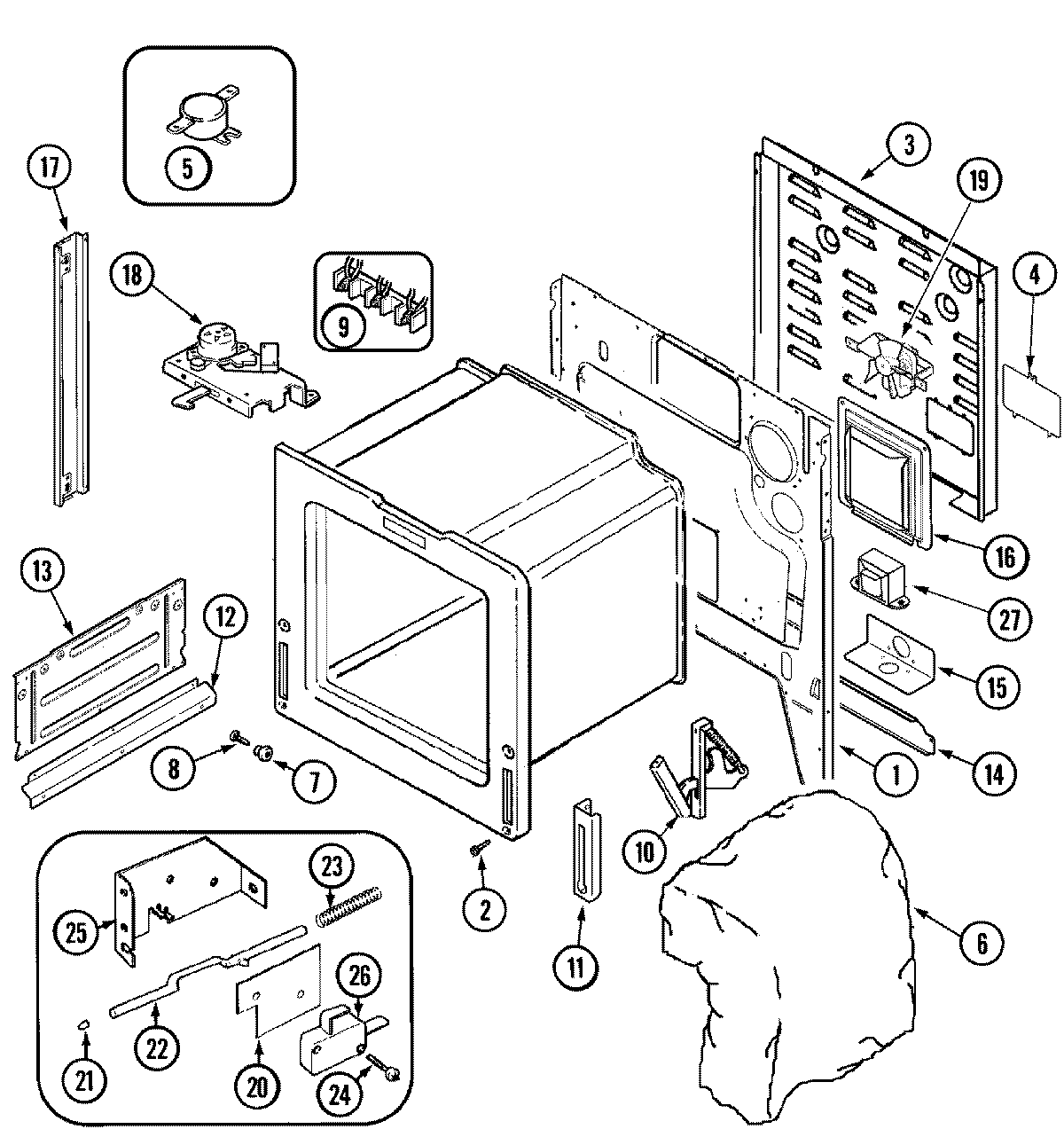

JES8850AAQ 01 – BODY

Products

Position	Product
1	MAY 74005721
2	SCREW (10-24X5/16-NI)
3	MAY 74005265
4	COVER, TERMINAL BLOCK
5	WP71001844 Whirlpool Thermostat
6	MAY 74005771
6	MAY 74003503
6	WP74010942 Whirlpool Insulation
7	MAY 8004P024-60
8	W11693756 Whirlpool Screw Assembly
9	MAY 74002305
9	MAY 74002306
9	MAY 74002230
9	WPW10245259 Whirlpool Terminal Block
9	MAY 74002303
9	MAY 74002301
10	74011142 Whirlpool Stove Range Oven Door Hinge and Spring
11	MAY 74004173
12	MAY 74005728
12	MAY 74004176
13	MAY 74004177
14	MAY 74005722
15	W10190166 Whirlpool Service Bracket
16	MAY 74004348
17	MAY 74005017
18	MAY 74004327
18	MAY 74005675
18	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
19	SCREW
19	MAY 74004947
20	MAY 74001872
21	MAY 74001631
22	ROD, DOOR LIGHT SWITCH
24	MAY 7101P330-60
25	BRACKET, SWITCH ACTUATOR
26	MAY 74001802
27	MAY 74005416
