JES8850AAQ 03 – DOOR/DRAWER

JES8850AAQ 03 – DOOR/DRAWER

Written by

in

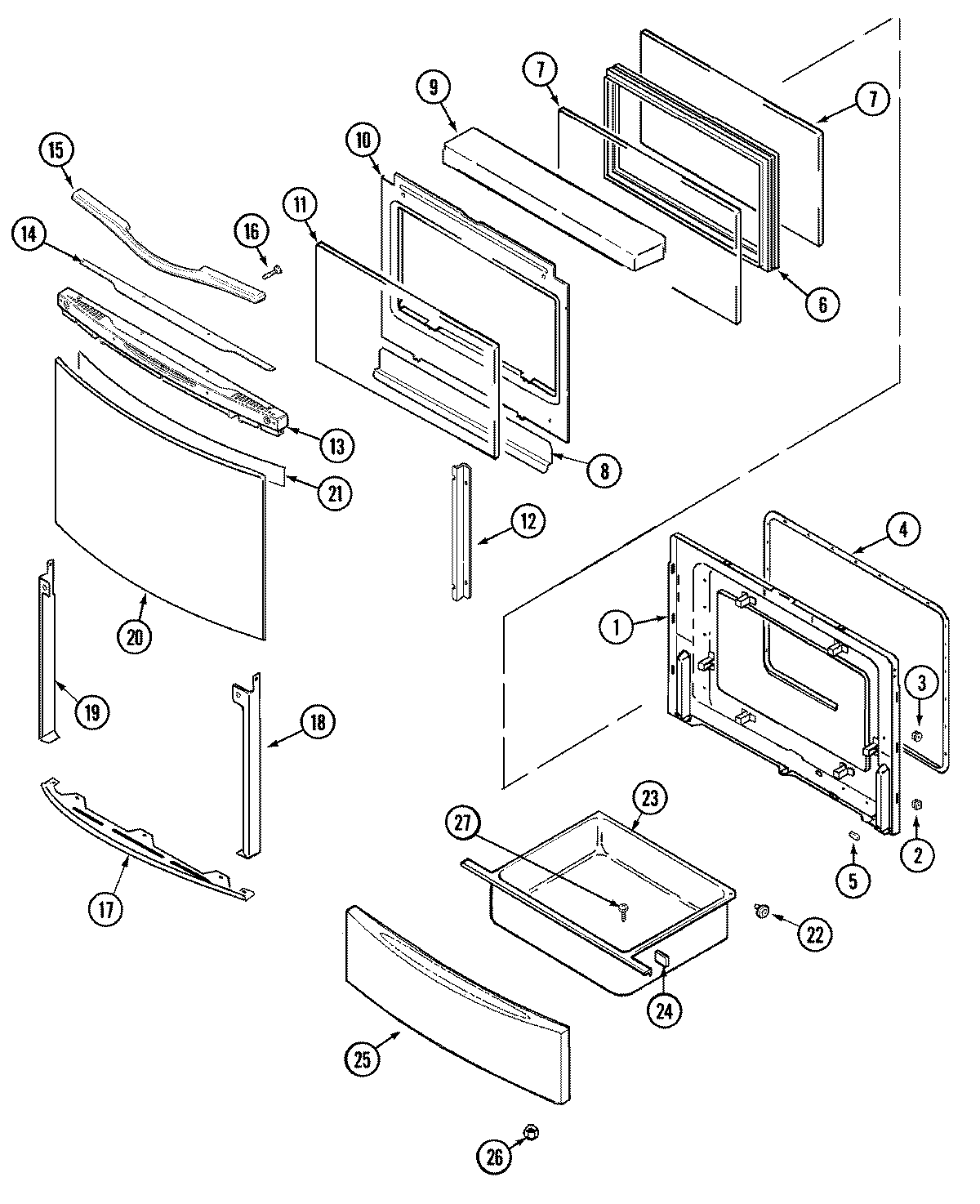

JES8850AAQ 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74003642
2NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8MAY 74005761
9INSULATION, OVEN DOOR
10MAY 74003648
11MAY 74005774
12MAY 74003650
13MAY 74005712
14MAY 74005711
15MAY 74005713
16MAY 71003275
17MAY 74005763
17SCREW
18MAY 74005779
19WP74009541 Whirlpool Screw Assembly
19MAY 74005780
20MAY 74005719
21TAPE, FOIL 29“ X 2“
22MAY 74003566
22SHAFT, STORAGE DRAWER ROLLER
22WP488130 Whirlpool Air Conditioner Nut
23MAY 71003042
24WP74005546 Whirlpool RU Spacer
25MAY 74005775
26WPW10131078 Whirlpool Nut Assembly
27WP7101P072-60 Whirlpool Screw
28MAY 74003639
