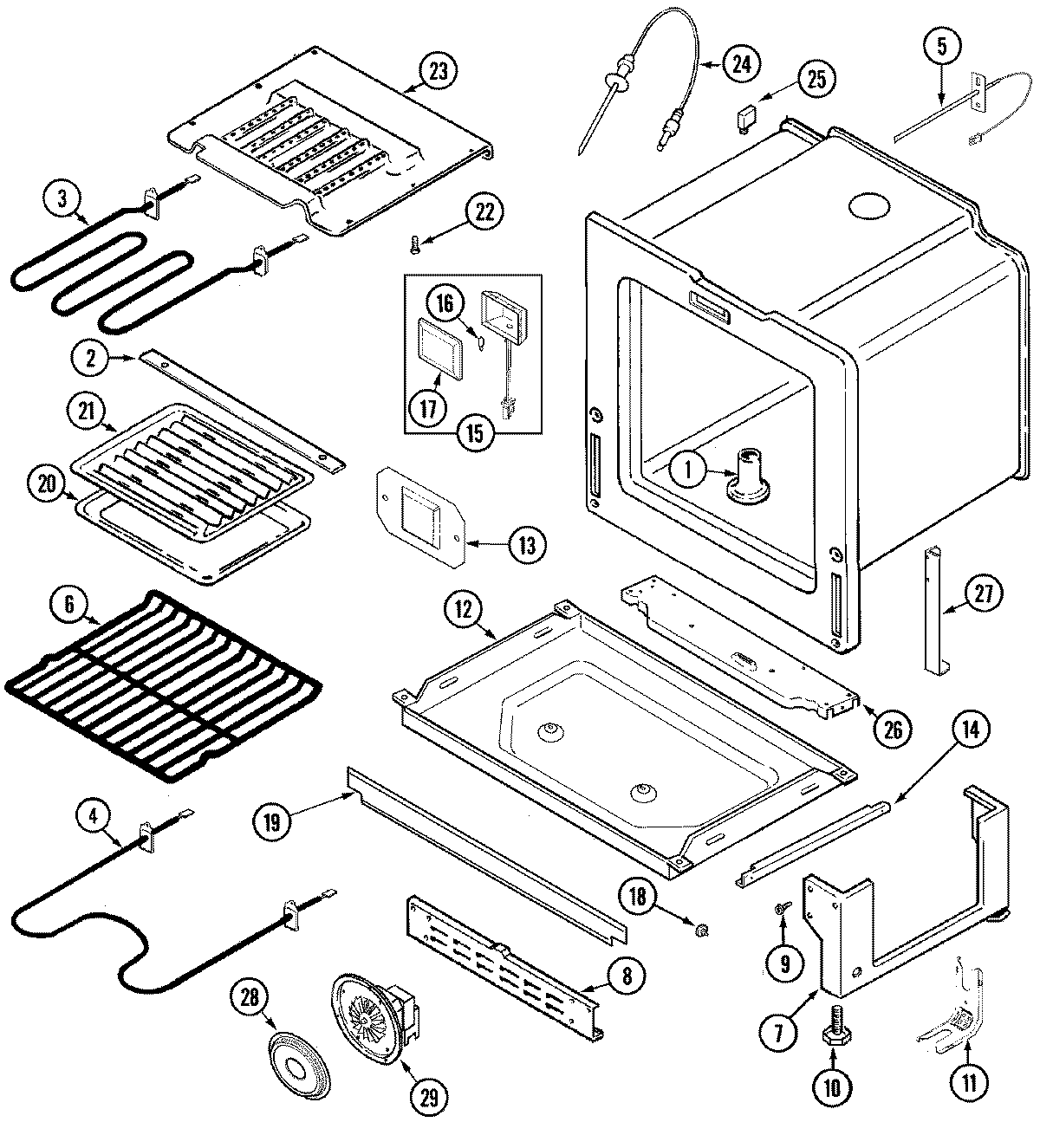

JES8850AAQ 04 – OVEN/BASE

Products

Position	Product
1	MAY 74005720
2	WP400021-1 Whirlpool Screw
2	MAY 74003563
3	W11676350 Whirlpool Broil Element
4	WP74010750 Whirlpool Oven Bake Element
5	12001656 Whirlpool Range Oven Temperature Sensor
6	WPW10282492 Whirlpool Oven Rack
7	MAY 74005772
8	MAY 4020F001-80
10	W11665456 Whirlpool Range Level Foot
11	WP7101P485-60 Whirlpool Anchor Tip
11	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
12	MAY 74005250
13	MAY 74005777
14	RUNNER, DRAWER
15	MAY 74005773
16	W10886919 Whirlpool Light Bulb
17	WP74004607 Whirlpool Light Lens
18	WP74004078 Whirlpool Door Roller
18	74005230 Whirlpool Oven Lock Nut (8-32)
18	SHAFT, STORAGE DRAWER ROLLER
19	WP74009541 Whirlpool Screw Assembly
19	MAY 74005778
20	MAY Y3401F02019
21	MAY Y3413F01619
23	MAY 74003564
24	WP71001870 Whirlpool Temperature Probe Sensor
25	MAY 74009649
25	MAY 71001863
25	MAY Y703356
26	MAY 74005464
26	MAY 7101P068-60
26	W10080180 Whirlpool Nut
27	MAY 74004780
27	SCREW
28	COVER, CONVECT
29	MAY 71003203
