JES8850AAS 03 – DOOR/DRAWER (STL)

JES8850AAS 03 – DOOR/DRAWER (STL)

Written by

in

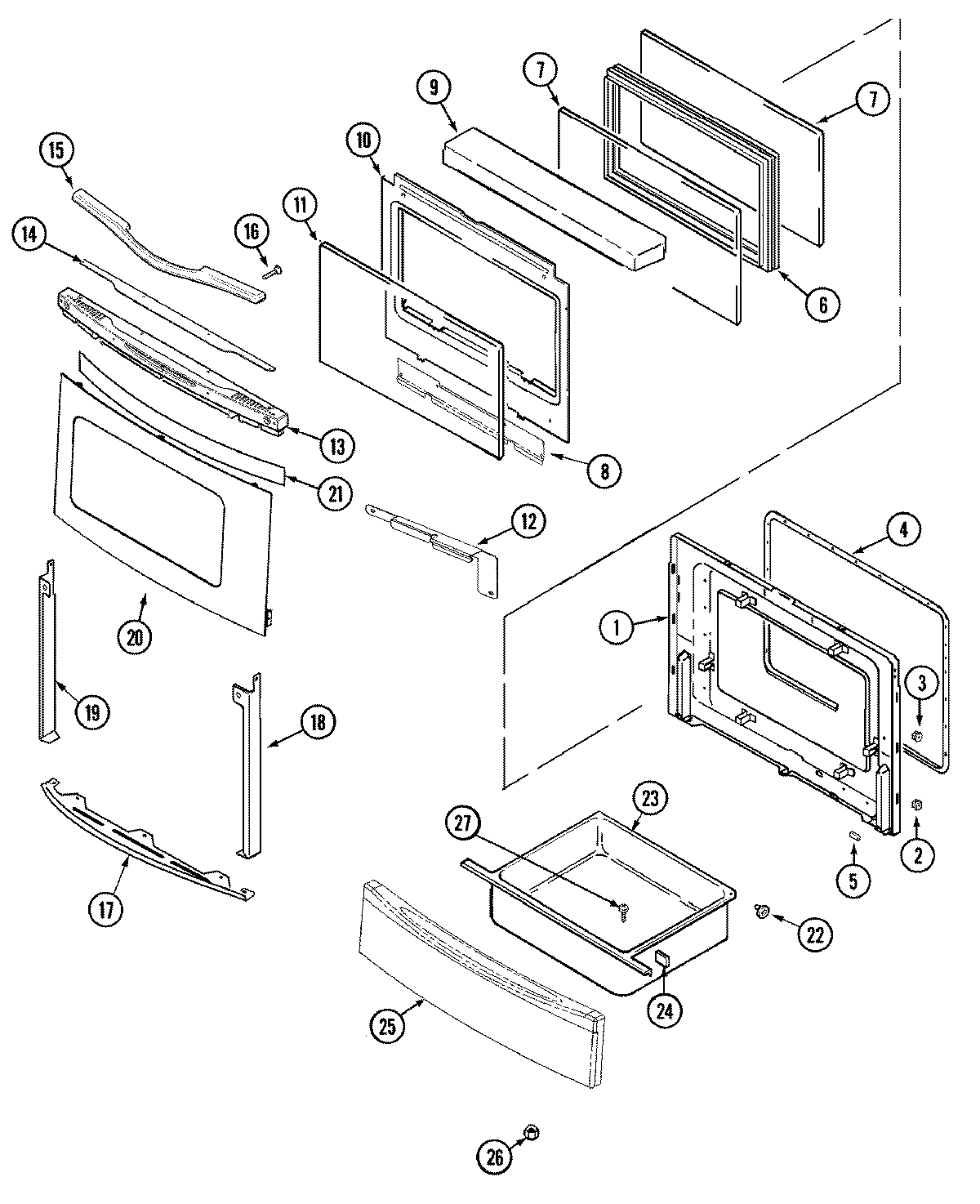

JES8850AAS 03 – DOOR/DRAWER (STL)

Products

PositionProduct
1MAY 74003642
2NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8MAY 74007215
9INSULATION, OVEN DOOR
10MAY 74003648
11MAY 74007214
12MAY 74007206
12MAY 74007205
12MAY 74001280
13MAY 74005700
14SCREW (8ABX1/2“-BLK)
14MAY 74005704
15MAY 74005698
16MAY 71003275
17MAY 74005763
17MAY 74007207
17SCREW
18MAY 74005693
19MAY 74005695
19WP98008545 Whirlpool Screw
20MAY 74007211
21TAPE, FOIL 29“ X 2“
21MAY 4870F005-60
22SHAFT, STORAGE DRAWER ROLLER
22WP488130 Whirlpool Air Conditioner Nut
22MAY 74003566
23MAY 71003042
24WP74005546 Whirlpool RU Spacer
25MAY 74007210
26WPW10131078 Whirlpool Nut Assembly
27WP7101P072-60 Whirlpool Screw
