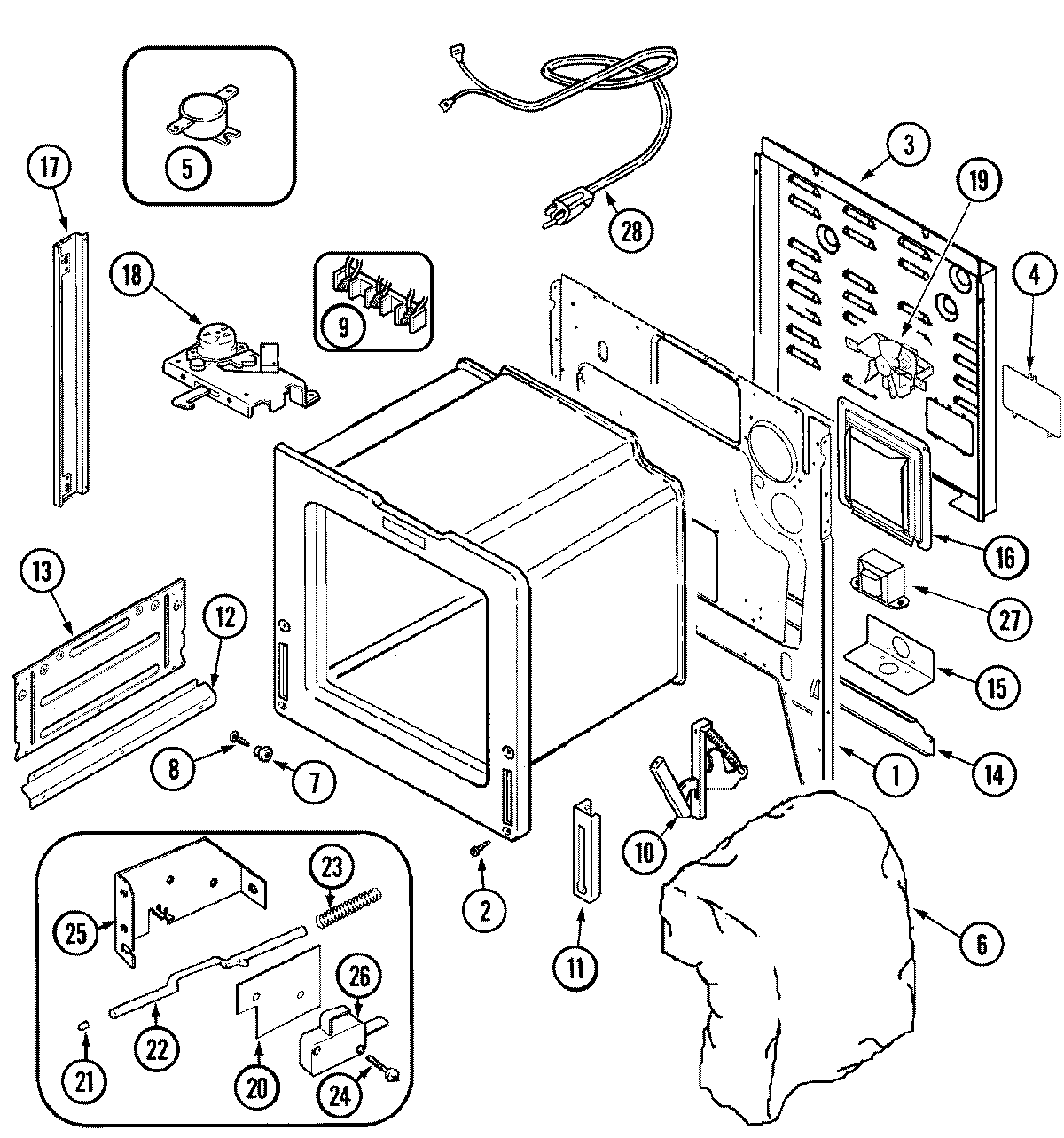

JES8850ACS 01 – BODY

Products

Position	Product
1	MAY 74005721
2	SCREW (10-24X5/16-NI)
3	MAY 74005265
4	COVER, TERMINAL BLOCK
5	WP71001844 Whirlpool Thermostat
6	MAY 74003503
6	MAY 74005771
6	WP74010942 Whirlpool Insulation
7	MAY 8004P024-60
8	W11693756 Whirlpool Screw Assembly
9	MAY 7401P038-60
9	MAY 74002230
10	74011142 Whirlpool Stove Range Oven Door Hinge and Spring
11	MAY 74004173
12	MAY 74005728
12	MAY 74004176
13	MAY 74004177
14	MAY 74005722
15	W10190166 Whirlpool Service Bracket
16	MAY 74004348
17	MAY 74004216
18	MAY 74005675
18	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
19	MAY 74004947
19	SCREW
20	MAY 74001872
21	MAY 74001631
22	ROD, DOOR LIGHT SWITCH
24	MAY 7101P330-60
25	BRACKET, SWITCH ACTUATOR
26	MAY 74001802
27	MAY 74005416
28	MAY 74006398
29	RELAY, AUXILIARY (DPDT)
