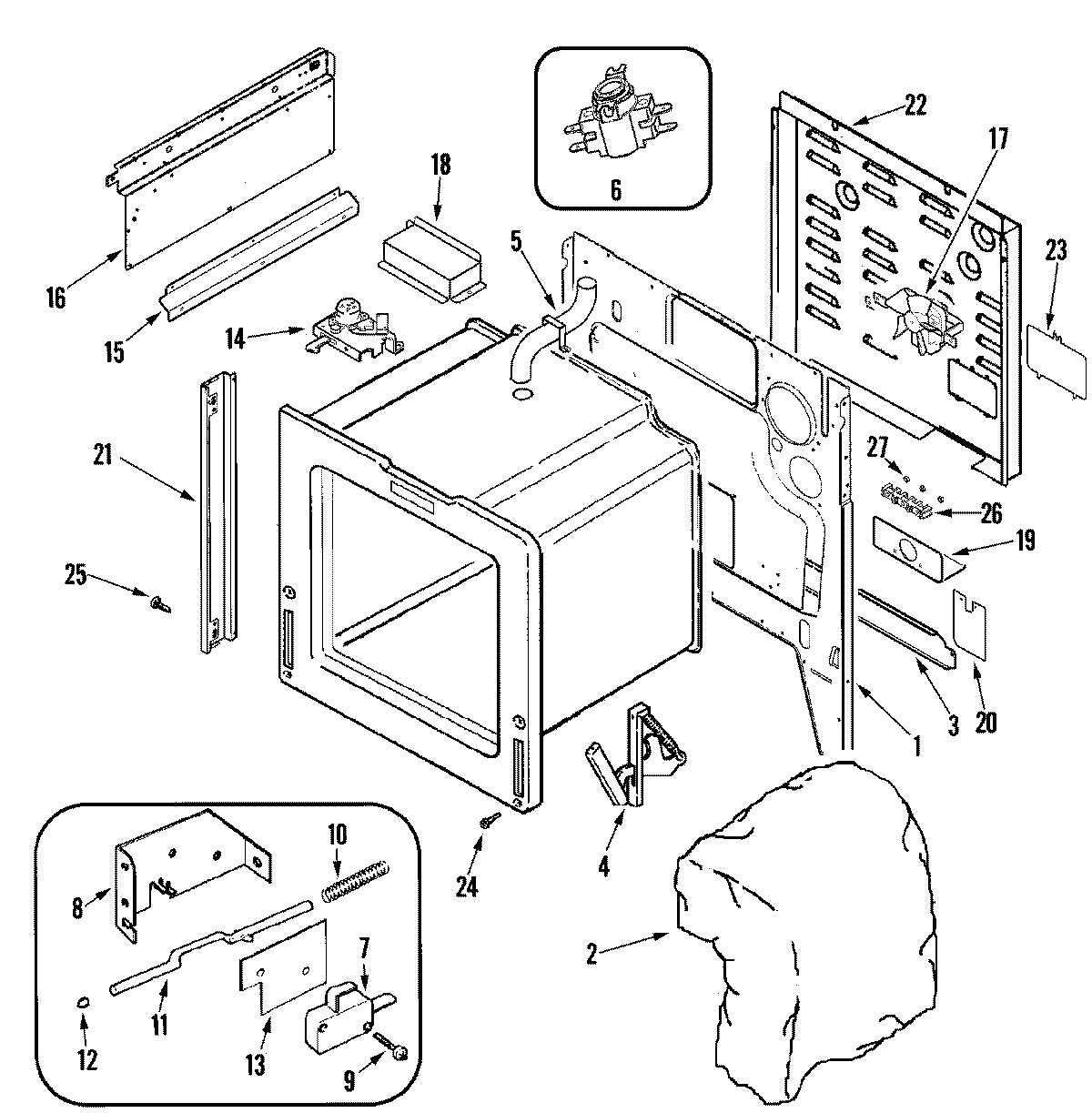

JES8850BAF 01 – BODY

JES8850BAF 01 – BODY

Written by

in

JES8850BAF 01 – BODY

Products

PositionProduct
1BACK, MAIN
2INSULATION, WRAPPER
3EXTENSION, MAIN BACK
474011475 Whirlpool Range Oven Door Hinge Assembly
5MAY 74010817
5TUBE, VENT
674008265 Whirlpool Oven High Limit Thermostat
7WP74008263 Whirlpool Door Switch
7SWTCH-LITE
8BRACKET, SWITCH ACTUATOR
9MAY 22002368
11ROD, DOOR LIGHT SWITCH
12MAY 74001631
13MAY 74008264
1474010819 Whirlpool Latch Assembly
15EXTENSION, HEAT SHEILD
162618F206-51 Whirlpool Panel
16PANEL, SHIELD (LT)
17WPW10586440 Whirlpool Blower Fan
18COVER, DOOR LATCH
19MAY 74011488
20INSULATOR, POWER CORD
21WP3608F138-71 Whirlpool Side Trim Assembly
224005F810-51 Whirlpool Access Cover
23COVER, TERMINAL BLOCK
24WP4159193 Whirlpool Screw
25WP74003976 Whirlpool Screw
26WPW10245259 Whirlpool Terminal Block
27WP7103P027-60 Whirlpool Nut
