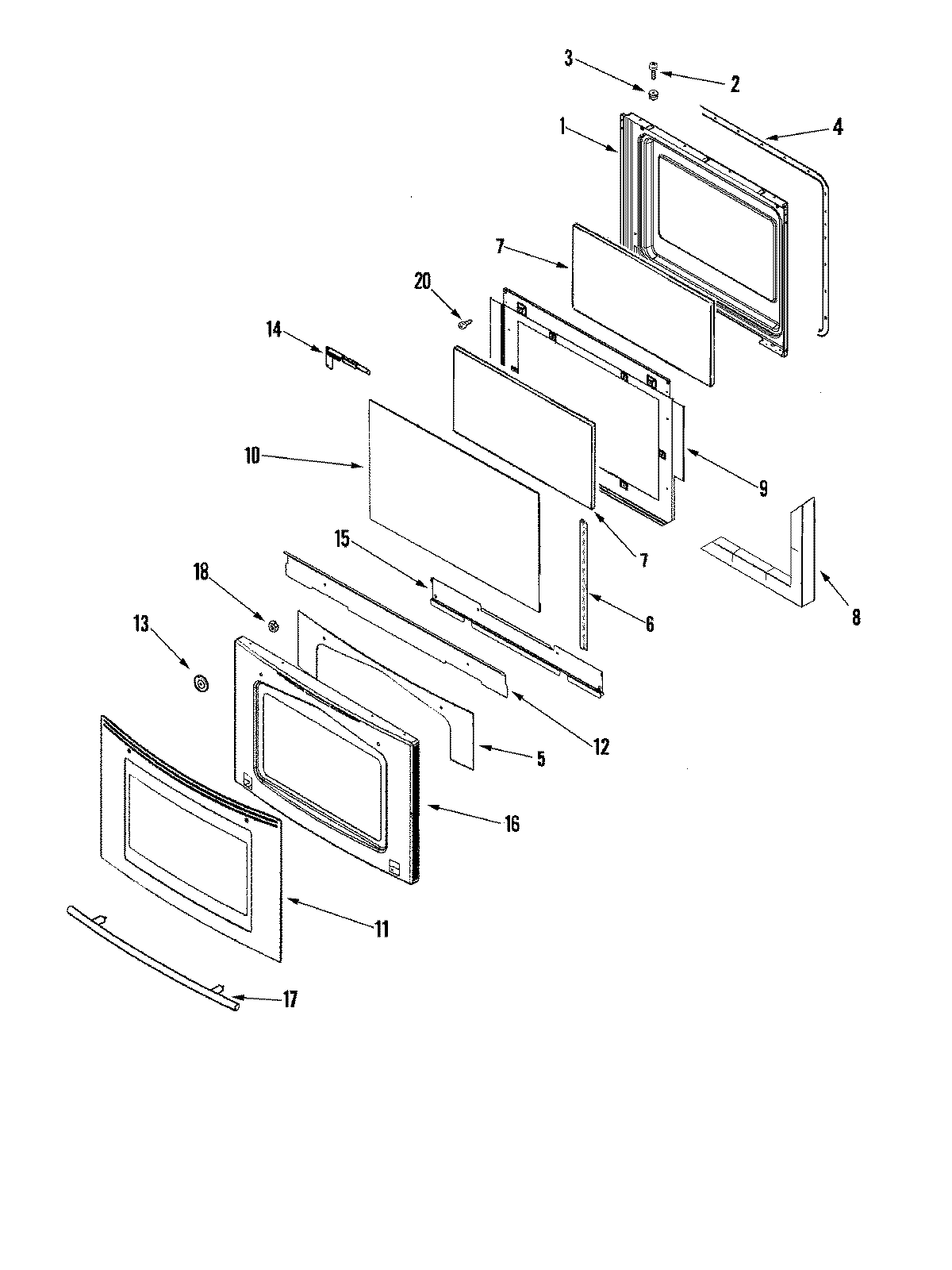

JES8850BAS 04 – DOOR (SER PRE 11)

Products

Position	Product
1	LINING, DOOR
2	WP98008545 Whirlpool Screw
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
5	MAY 74011509
6	3801F886-51 Whirlpool Mounting Bracket
7	74003645 Whirlpool Range Oven Door Inner Glass
8	INSULATION, OVEN DOOR
9	3601F373-51 Whirlpool Baffle
10	GLASS, DOOR (INNER/COATED)
11	MAY 74011542
11	FRAME, DOOR (STAINLESS)
12	MAY 74011049
13	MAY 74009194
14	MAY 74011463
14	MAY 74011797
15	MAY 74011464
16	MAY 74011507
17	WP74008625 Whirlpool Door Handle
18	WP3400029 Whirlpool Dishwasher Nut
