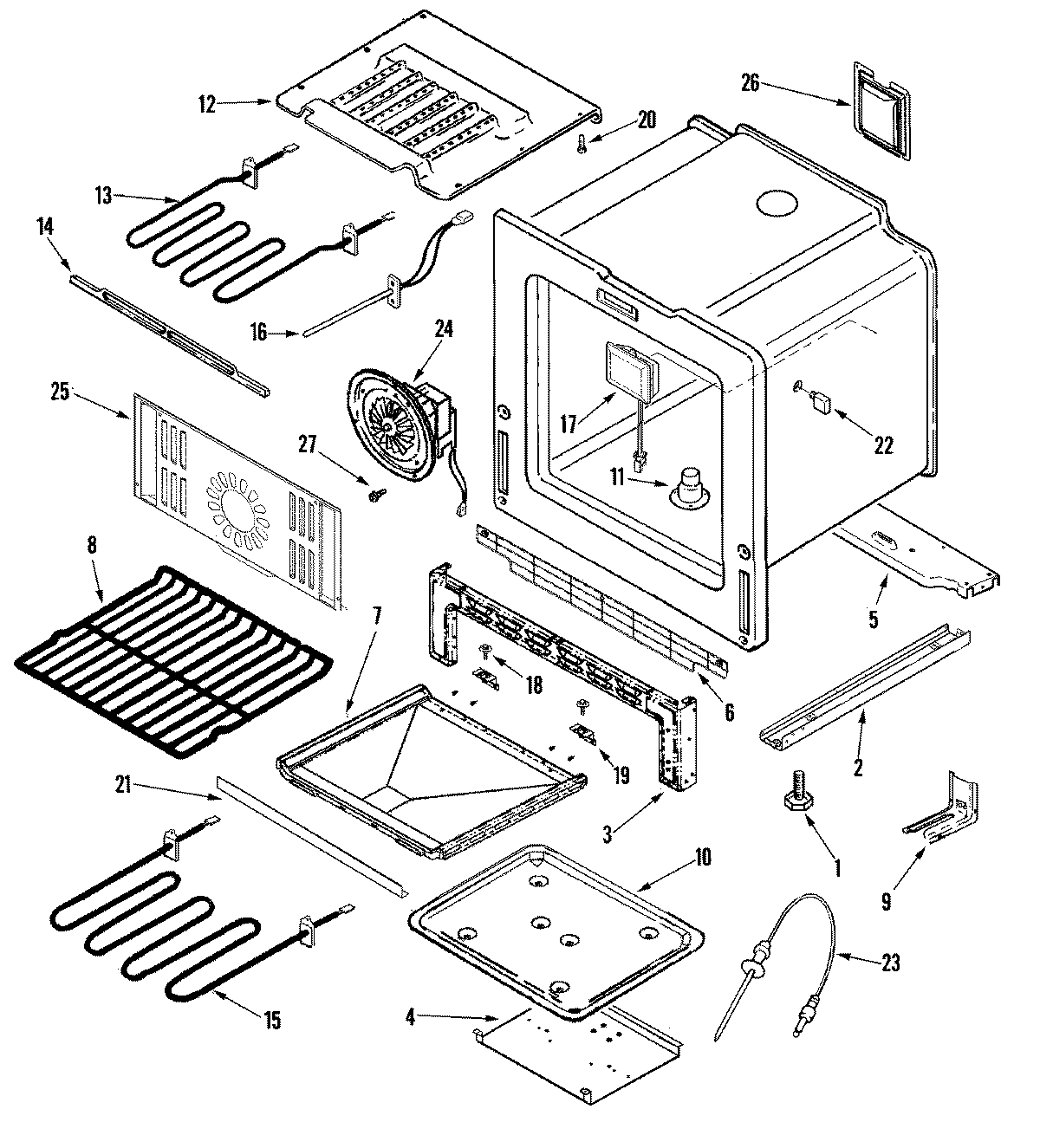

JES8850BAS 05 – OVEN/BASE

Products

Position	Product
1	WP74010805 Whirlpool Screw
2	4020W035-80 Whirlpool Bottom PE
3	PEDESTAL, FRONT
4	MAY 74006591
5	SUPPORT, VALVE REGULATOR
6	MAY 74011482
7	MAY 74010853
8	WPW10282492 Whirlpool Oven Rack
9	WP7101P485-60 Whirlpool Anchor Tip
9	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
10	MAY 74010806
11	MAY 74010808
11	PLATE, VENT COVER
12	MAY 74008408
13	MAY 74011479
14	MAY 74003563
15	WP7406P411-60 Whirlpool Bake Element
16	12001656 Whirlpool Range Oven Temperature Sensor
17	MAY 74011220
19	MAY 74010812
20	MAY 74010505
21	MAY 74010807
22	WP7408P086-60 Whirlpool Receptacle
23	WP7430P038-60 Whirlpool Meat Probe Sensor
24	MAY 74011517
25	WPW10186795 Whirlpool Convection Baffle
26	MAY 74010814
27	WP74003976 Whirlpool Screw
