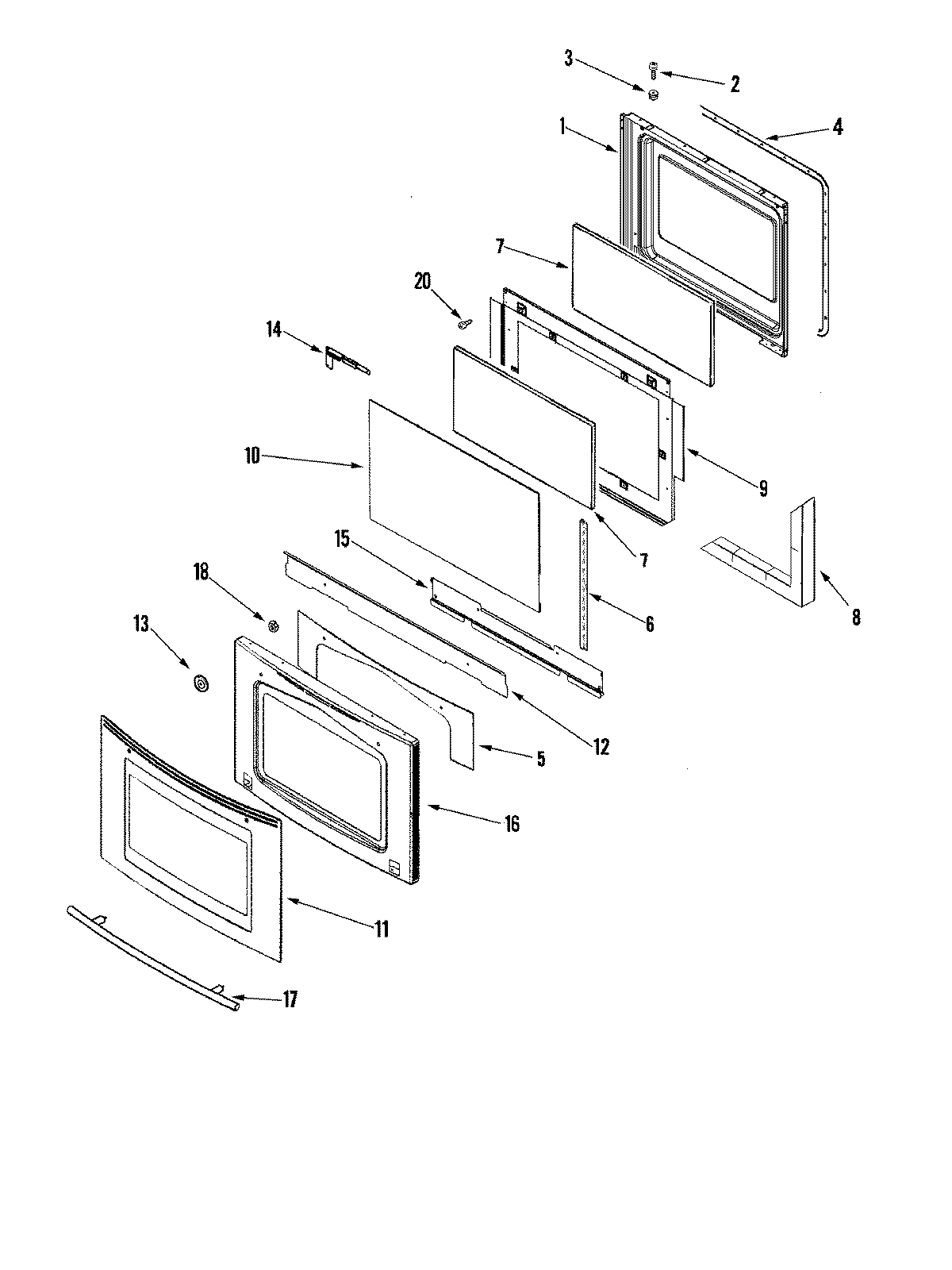

JES8850BCW 04 – DOOR (SER PRE 11)

Products

Position	Product
1	LINING, DOOR
2	WP98008544 Whirlpool Screw Assembly
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
5	MAY 74011509
6	3801F886-51 Whirlpool Mounting Bracket
7	74003645 Whirlpool Range Oven Door Inner Glass
8	INSULATION, OVEN DOOR
9	3601F373-51 Whirlpool Baffle
10	GLASS, DOOR (INNER/COATED)
11	MAY 74011510
12	MAY 74011049
13	MAY 74009194
14	MAY 74011463
14	MAY 74011797
15	MAY 74011464
16	3603F075-71 Whirlpool Door Frame
17	WP74008625 Whirlpool Door Handle
18	WP3400029 Whirlpool Dishwasher Nut
