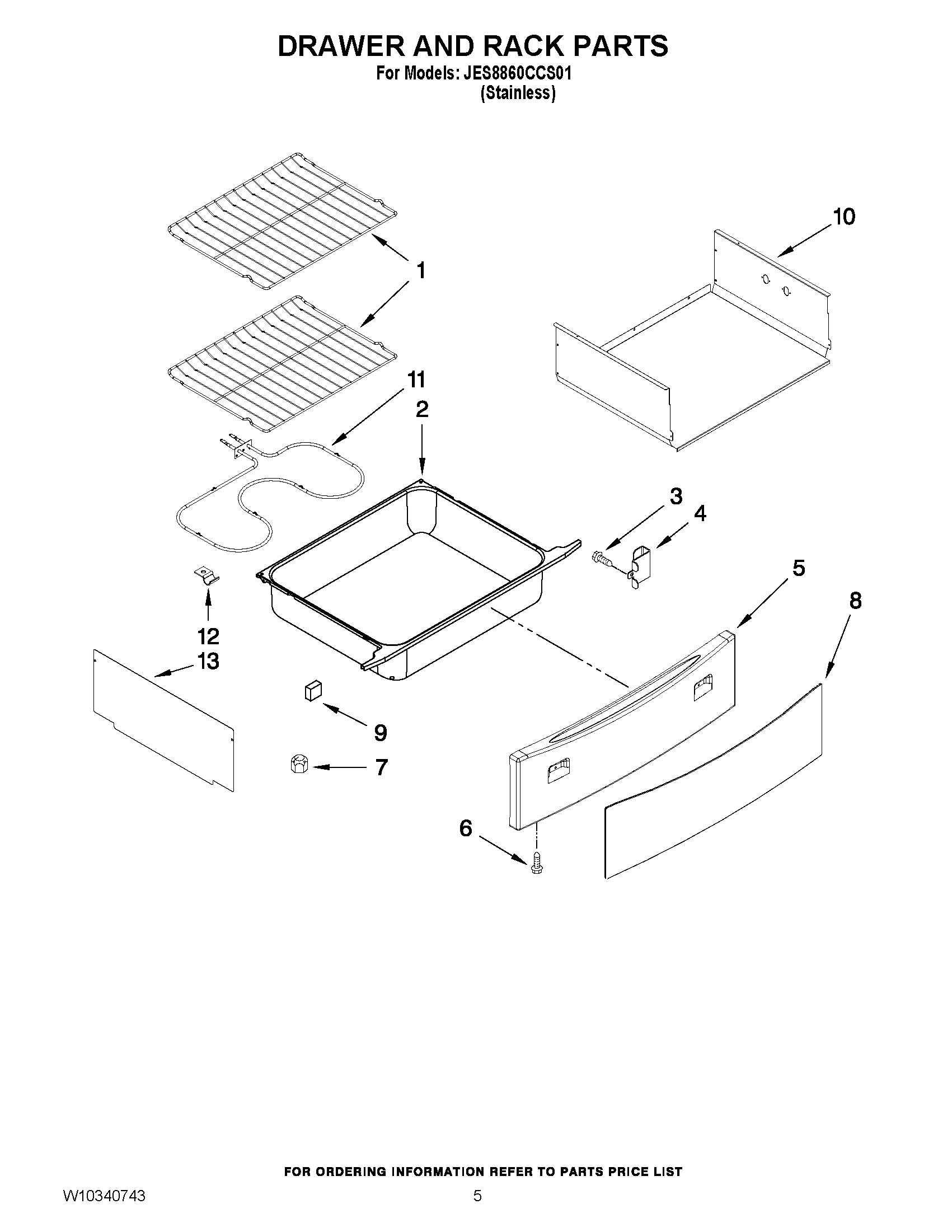

JES8860CCS01 04 – DRAWER AND RACK PARTS

JES8860CCS01 04 – DRAWER AND RACK PARTS

Written by

in

JES8860CCS01 04 – DRAWER AND RACK PARTS

Products

PositionProduct
1RACK, OVEN (2)
2DRAWER, WARMING
3WP7101P072-60 Whirlpool Screw
4MAY 3801F887-51
5PANEL, DRAWER (BLACK)
6MAY 7101P376-60
7WPW10131078 Whirlpool Nut Assembly
8GLASS, DRAWER (STAINLESS)
9MAY 8010P130-60
10BODY, WARM DRAWER
11MAY W10310262
12SUPPORT, ELEMENT
13MAY 3604F414-51
