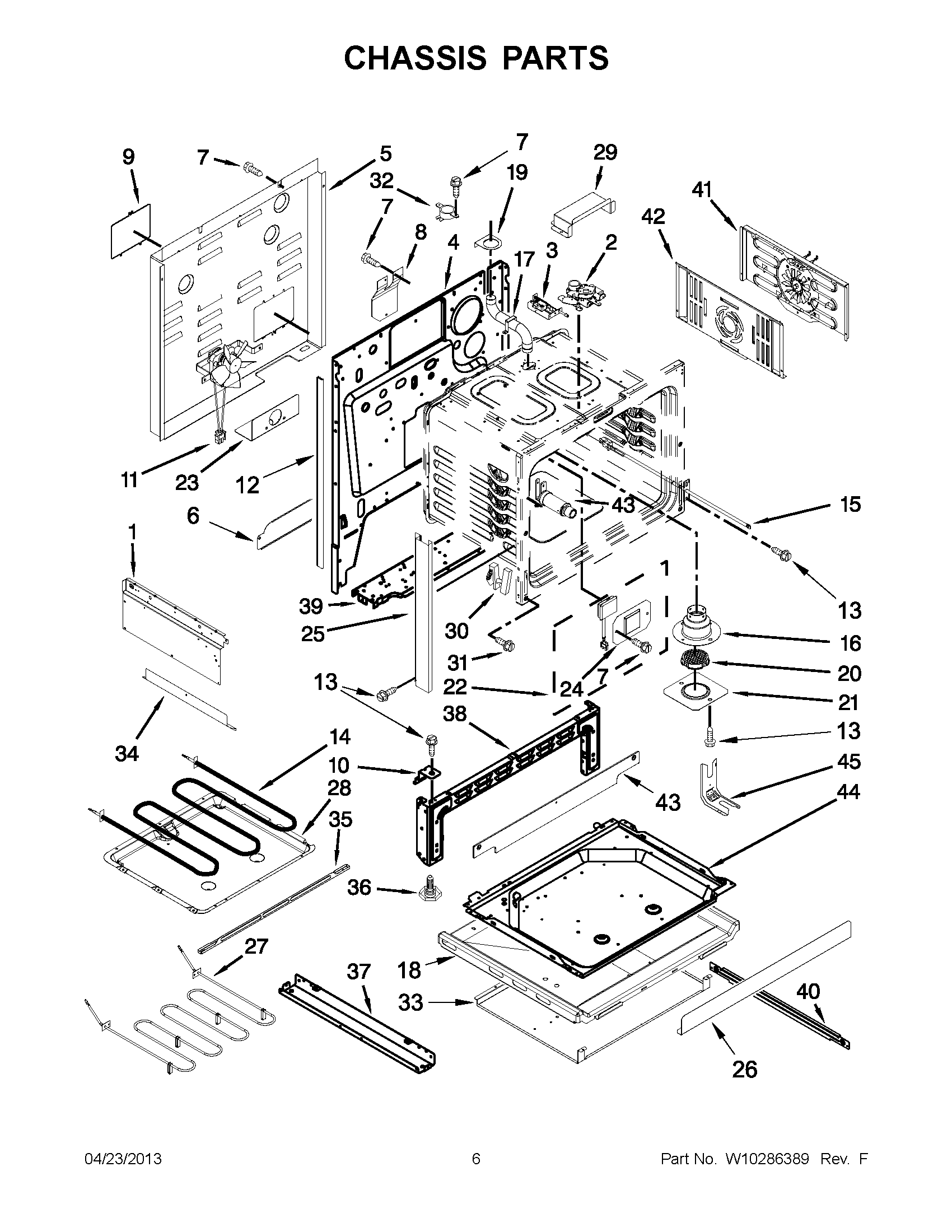

JES8860CCW00 03 – CHASSIS PARTSadmin2025-04-26T09:22:20+00:00JES8860CCW00 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY 7430P038-60 |
| NI | INSULATION, OVEN BOTTOM |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY 7002P471-60 |
| NI | MAY 7002P445-60 |
| NI | BLOCK, TERMINAL |
| NI | MAY W10221108 |
| 1 | MAY 2618F206-51 |
| 1 | MAY 2618F201-51 |
| 2 | MAY 8002P089-60 |
| 3 | ASSY., LIGHT SW |
| 4 | BACK, MAIN |
| 5 | COVER, MAIN WIRE |
| 6 | MAY 3826F066-51 |
| 7 | MAY 7101P426- 60 |
| 8 | MAY 7003P101-60 |
| 9 | COVER, TERMINAL |
| 10 | SUPPORT, OVEN BTM. |
| 11 | MAY 7427P094-60 |
| 12 | MAY W10183566 |
| 13 | MAY 7101P500-60 |
| 14 | MAY 7406P430-60 |
| 15 | MAY 7430P042-60 |
| 16 | MAY 8026P096-60 |
| 17 | TUBE, VENT MIDDLE |
| 18 | MAY 2205F060-19 |
| 19 | MAY 3605F345-51 |
| 20 | SCREEN, SMOKE ELM. |
| 21 | MAY 3605F354-45 |
| 22 | MAY 7407P180-60 |
| 23 | MAY 3801F911-51 |
| 24 | MAY 4005F684-51 |
| 25 | TRIM, SIDE (BLACK (2)) |
| 25 | MAY 3608F138-71 |
| 26 | MAY 4005F749-45 |
| 27 | MAY 7406P411-60 |
| 28 | PAN, BAKE |
| 29 | COVER, DOOR LATCH |
| 30 | Hinge, Door (2) |
| 31 | SCREW (10-24X5/16-NI) |
| 32 | MAY 7403P647-60 |
| 33 | SHIELD, WARM. DWR. |
| 34 | MAY 3826F064-51 |
| 35 | SUPPORT, BROIL ELEMENT |
| 36 | LEG, LEVELING |
| 37 | MAY 4020W035-80 |
| 38 | PEDESTAL, FRONT |
| 39 | SUPPORT |
| 40 | MAY W10293200 |
| 41 | MAY 7427P129-60 |
| 42 | MAY 3605F346-19 |
| 43 | TRIM, FRONT FRAME |
| 44 | MAY 3804F231-51 |
| 45 | BRACKET, ANTI-TIP |
