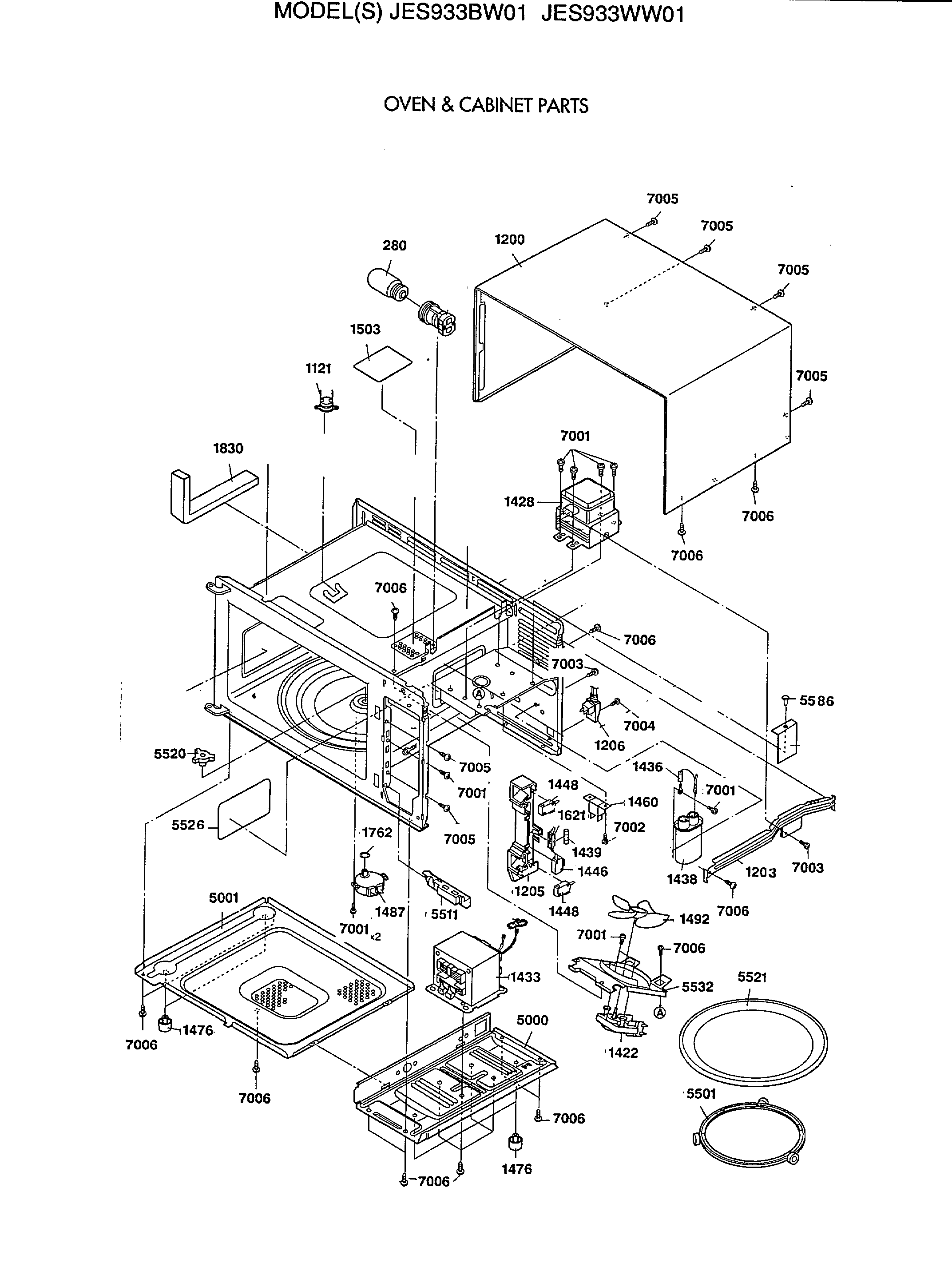

JES933WW01 OVEN & CABINET PARTS
Products
| Position | Product |
|---|---|
| 280 | OVEN LAMP |
| 1121 | FLAME SENSOR |
| 1200 | GEN WB56X2167 |
| 1203 | GEN WB06X0445 |
| 1205 | GEN WB06X0432 |
| 1206 | GEN WB18X0551 |
| 1422 | GEN WB26X0174 |
| 1428 | GEN WB27X1049 |
| 1433 | GEN WB27X1048 |
| 1436 | GEN WB27X1047 |
| 1438 | GEN WB27X0755 |
| 1439 | SWITCH WITH FUSE ASM |
| 1446 | MONITOR SWITCH |
| 1448 | SENSING & 2ND LOCK SWIT. |
| 1460 | GEN WB27X0442 |
| 1476 | GEN WB06X0431 |
| 1487 | GEN WB26X0161 |
| 1492 | GEN WB06X0433 |
| 1503 | GEN WB04X0142 |
| 1516 | GEN WB04X0183 |
| 1621 | GEN WB08X0313 |
| 1762 | O-RING |
| 1830 | GEN WB06X0436 |
| 5000 | GEN WB56X2165 |
| 5001 | BOTTOM PLATE, LEFT |
| 5501 | GEN WB06X0438 |
| 5511 | GEN WB06X0335 |
| 5520 | GEN WB01X1476 |
| 5521 | GEN WB49X0684 |
| 5526 | GEN WB06X0435 |
| 5532 | GEN WB06X0434 |
| 5586 | CLIP-STIRRER |
| 7001 | GEN WB01X1240 |
| 7002 | GEN WB01X1445 |
| 7003 | SCREW |
| 7004 | GEN WB01X1501 |
| 7005 | SCREW |
| 7006 | SCREW |
| 9999 | GEN 31-20011 |
| 9999 | GEN 49-8667 |
