JES9750AAW 04 – DOOR/ACCESS PANEL

JES9750AAW 04 – DOOR/ACCESS PANEL

Written by

in

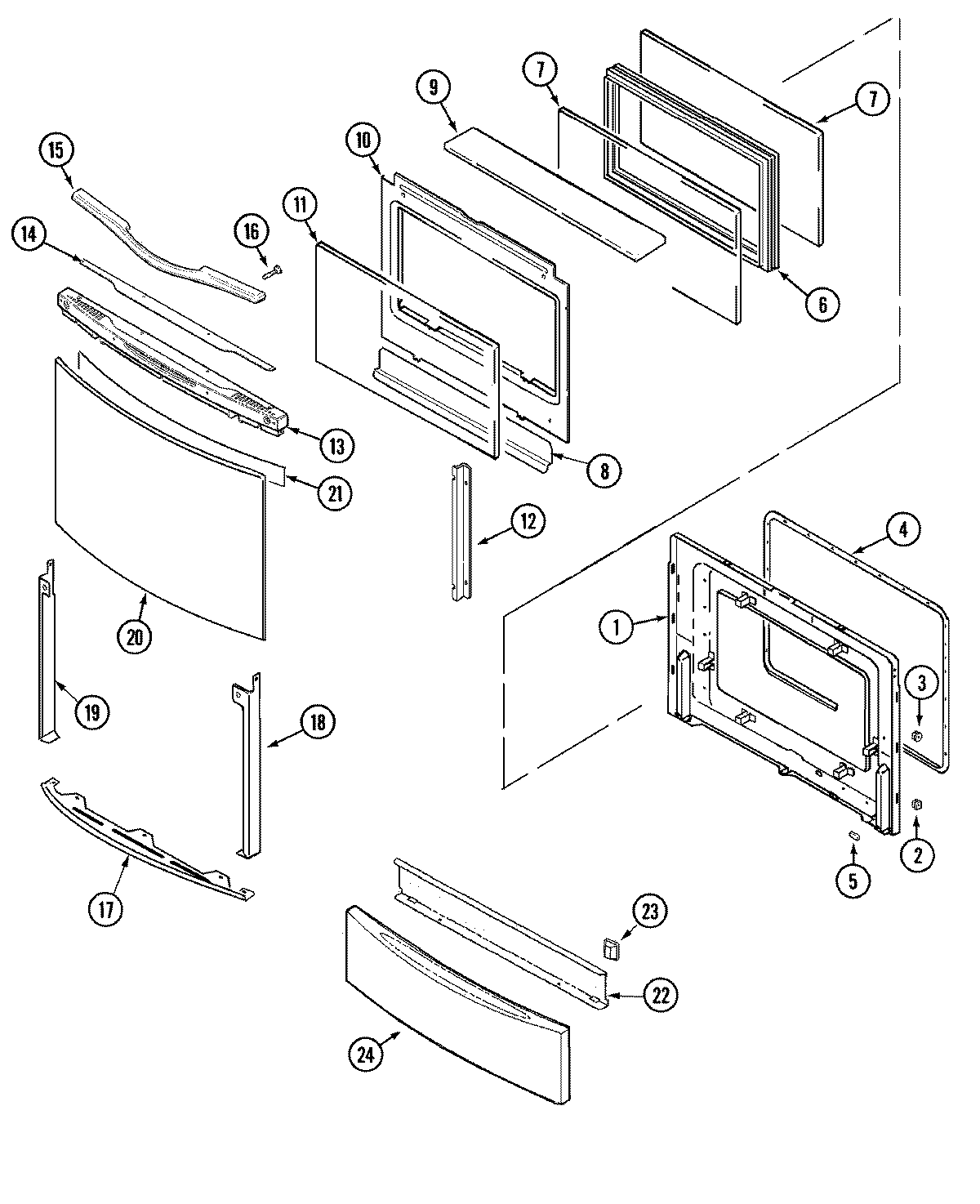

JES9750AAW 04 – DOOR/ACCESS PANEL

Products

PositionProduct
1MAY 74003642
2NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5WP74005546 Whirlpool RU Spacer
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8MAY 74005761
9INSULATION, OVEN DOOR
10MAY 74003648
11MAY 74005774
12MAY 74003650
13MAY 74005699
14WP98008544 Whirlpool Screw Assembly
14MAY 74005703
15MAY 74005697
16MAY 71003275
17MAY 74005763
18MAY 74005694
19WP98008545 Whirlpool Screw
19MAY 74005696
20MAY 74005717
21TAPE, FOIL 29“ X 2“
22SCREW
22MAY 74005807
23MAY 71002106
24MAY 74005691
