JES9750BAB 02 – BODY

JES9750BAB 02 – BODY

Written by

in

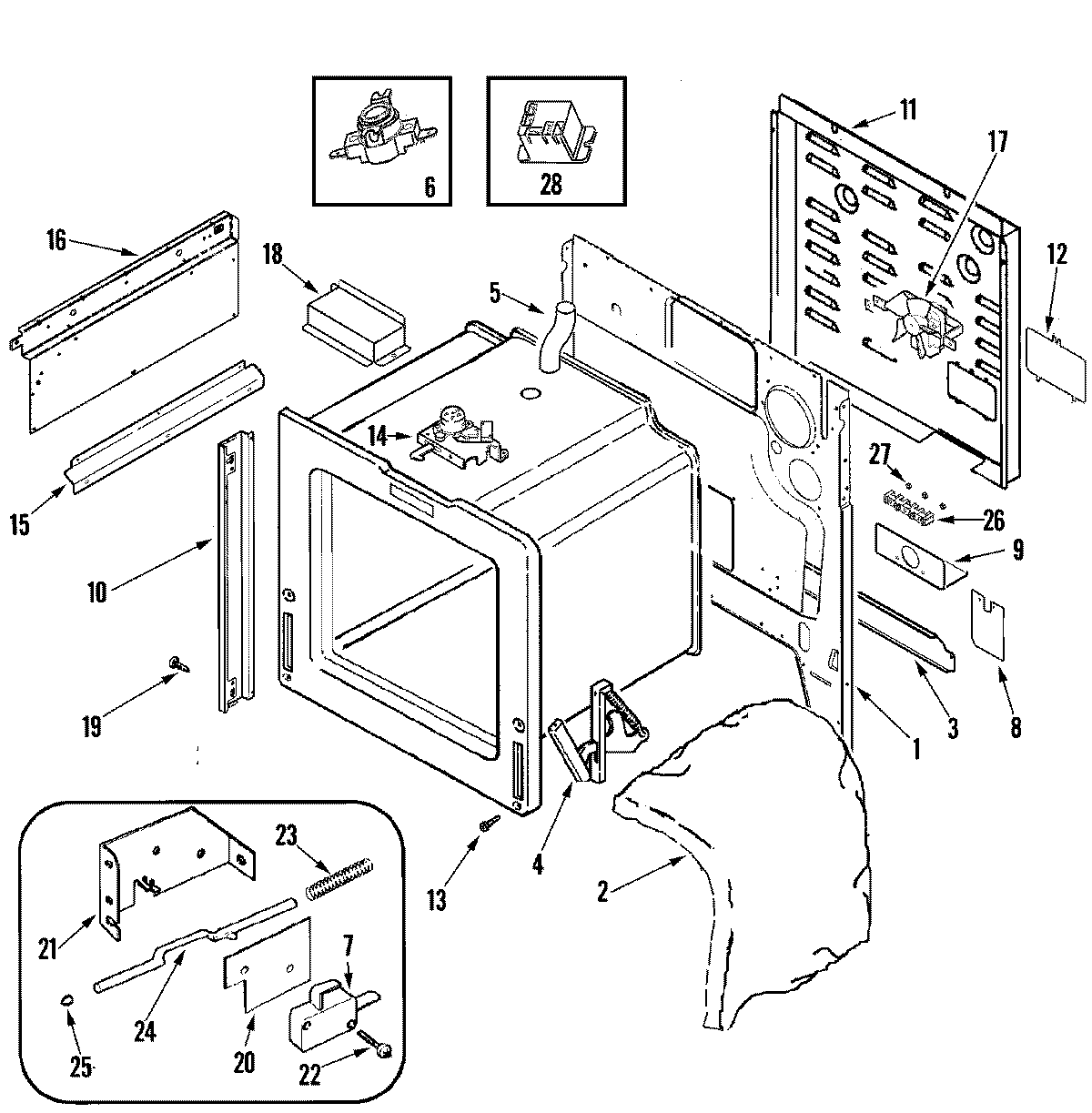

JES9750BAB 02 – BODY

Products

PositionProduct
1BACK, MAIN
2MAY 74011480
3EXTENSION, MAIN BACK
474011475 Whirlpool Range Oven Door Hinge Assembly
5MAY 74011486
6MAY 74010818
7SWTCH-LITE
7WP74008263 Whirlpool Door Switch
8INSULATOR, POWER CORD
9MAY 74011488
10WP3608F138-70 Whirlpool Side Trim
114005F810-51 Whirlpool Access Cover
12COVER, TERMINAL BLOCK
13WP4159193 Whirlpool Screw
1474010819 Whirlpool Latch Assembly
15EXTENSION, HEAT SHEILD
162618F206-51 Whirlpool Panel
16MAY 74011484
17WPW10586440 Whirlpool Blower Fan
18COVER, DOOR LATCH
19WP74003976 Whirlpool Screw
20MAY 74008264
21BRACKET, SWITCH ACTUATOR
22MAY 22002368
24ROD, DOOR LIGHT SWITCH
25MAY 74001631
26WPW10245259 Whirlpool Terminal Block
27WP7103P027-60 Whirlpool Nut
28MAY 74010517
