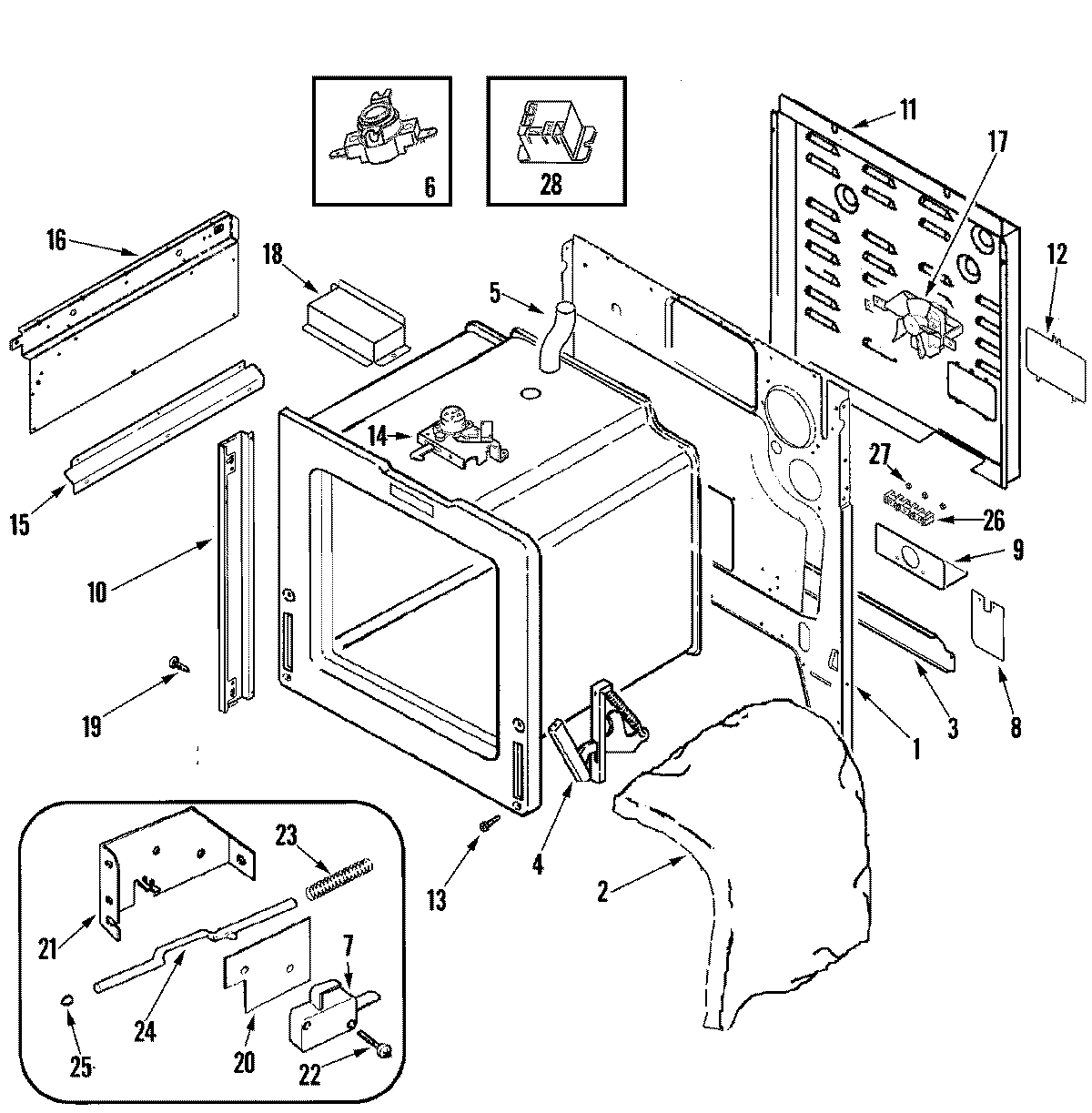

| 1 | BACK, MAIN |
| 2 | MAY 74011480 |
| 3 | EXTENSION, MAIN BACK |
| 4 | 74011475 Whirlpool Range Oven Door Hinge Assembly |
| 5 | MAY 74011486 |
| 6 | MAY 74010818 |
| 7 | SWTCH-LITE |
| 7 | WP74008263 Whirlpool Door Switch |
| 8 | INSULATOR, POWER CORD |
| 9 | MAY 74011488 |
| 10 | WP3608F138-70 Whirlpool Side Trim |
| 11 | 4005F810-51 Whirlpool Access Cover |
| 12 | COVER, TERMINAL BLOCK |
| 13 | WP4159193 Whirlpool Screw |
| 14 | 74010819 Whirlpool Latch Assembly |
| 15 | EXTENSION, HEAT SHEILD |
| 16 | 2618F206-51 Whirlpool Panel |
| 16 | MAY 74011484 |
| 17 | WPW10586440 Whirlpool Blower Fan |
| 18 | COVER, DOOR LATCH |
| 19 | WP74003976 Whirlpool Screw |
| 20 | MAY 74008264 |
| 21 | BRACKET, SWITCH ACTUATOR |
| 22 | MAY 22002368 |
| 24 | ROD, DOOR LIGHT SWITCH |
| 25 | MAY 74001631 |
| 26 | WPW10245259 Whirlpool Terminal Block |
| 27 | WP7103P027-60 Whirlpool Nut |
| 28 | MAY 74010517 |
