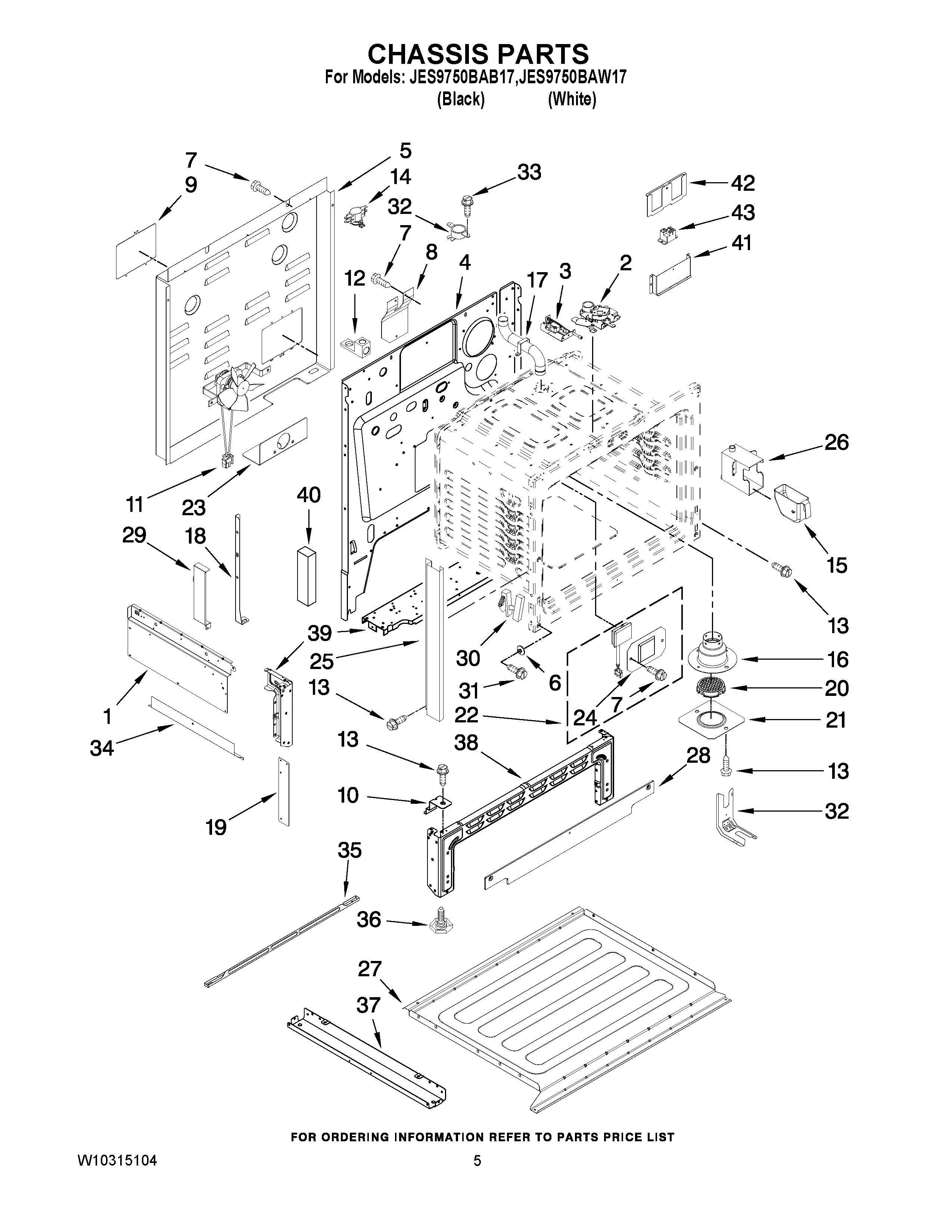

JES9750BAW17 04 – CHASSIS PARTS
Written by
in
JES9750BAW17 04 – CHASSIS PARTS
Products
Position
Product
NI
INSULATION, OVEN BOTTOM
NI
MAY 7002P466-60
NI
MAY 7002P468-60
1
MAY 2618F202-51
1
MAY 2618F206-51
2
MAY 8002P089-60
3
ASSY., LIGHT SW
4
BACK, MAIN
5
COVER, MAIN WIRE
6
MAY 8004P024-60
8
MAY 7003P101-60
9
COVER, TERMINAL
10
MAY 3807F615-51
11
MAY 7427P094-60
12
BLOCK, WIRE ADAPTER (3)
14
SWITCH, HI-LIMIT
15
MAY 8312P190-60
16
MAY 8026P096-60
17
MAY 8026P094-60
18
MAY 3807F732-51
19
MAY 3801F929-51
20
SCREEN, SMOKE ELM.
21
MAY 3605F344-45
22
MAY 7407P180-60
23
MAY 3801F911-51
24
TUBE, DRAIN
25
TRIM, SIDE (BLACK (2))
26
MAY 8312P191-60
27
RETAINER, INSUL. (BOTTOM)
28
TRIM, FRONT FRAME
29
MAY 3604F336-51
30
Hinge, Door (2)
31
SCREW (10-24X5/16-NI)
32
BRACKET, ANTI-TIP
33
MAY 7101P426- 60
34
MAY 3826F064-51
35
SUPPORT, BROIL ELEMENT
36
LEG, LEVELING
37
MAY 4020W035-80
38
PEDESTAL, FRONT
39
MAY 4020F033-80
39
MAY 4020F032-80
40
MAY 7002P304-60
41
MAY 8405P063-60
42
MAY 8405P046-60
43
MAY W10182892
←
