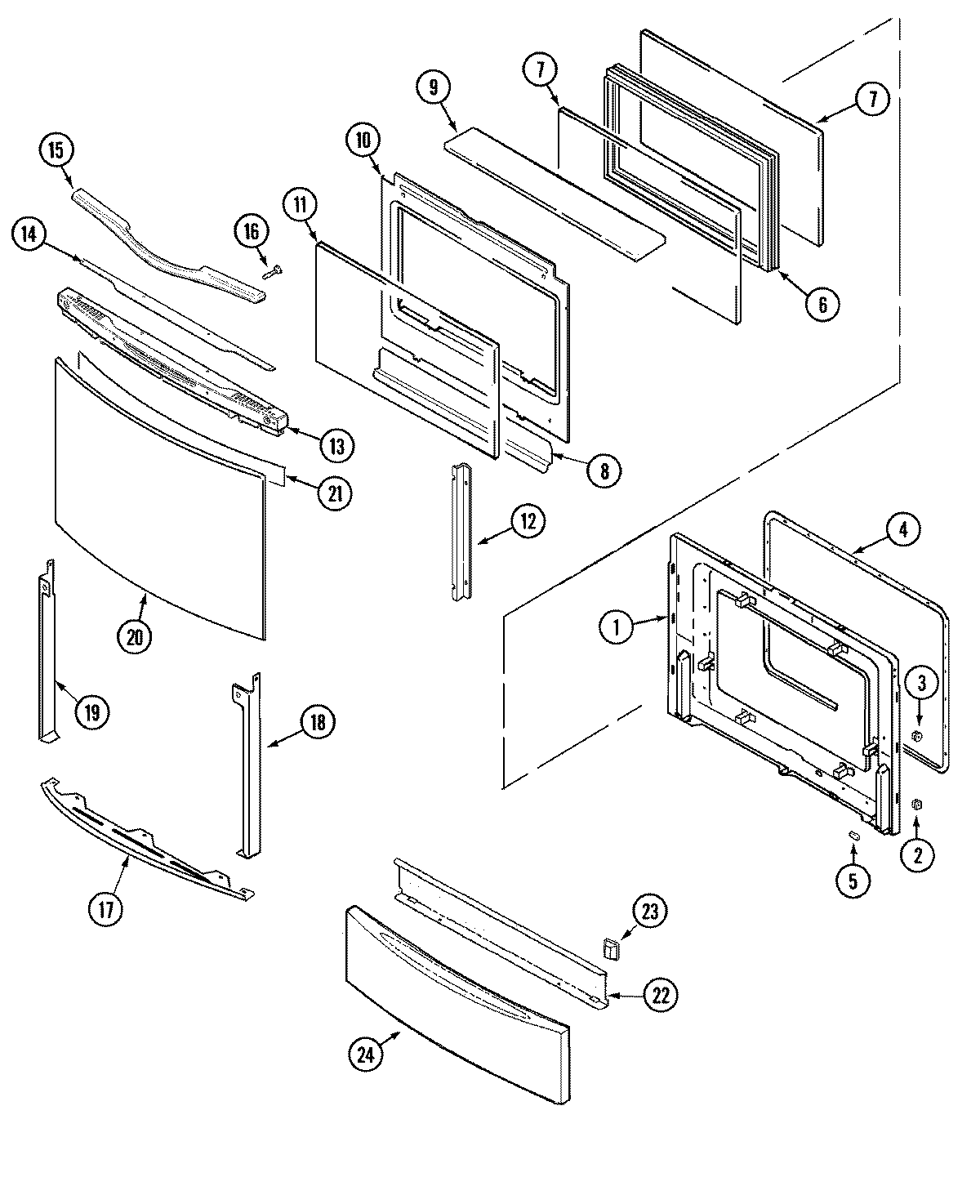

JES9800AAB 04 – DOOR/ACCESS PANEL

JES9800AAB 04 – DOOR/ACCESS PANEL

Written by

in

JES9800AAB 04 – DOOR/ACCESS PANEL

Products

PositionProduct
1MAY 74003642
2NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5WP74005546 Whirlpool RU Spacer
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8MAY 74005761
9INSULATION, OVEN DOOR
10MAY 74003648
11MAY 74005774
12MAY 74003650
13MAY 74005700
14SCREW (8ABX1/2“-BLK)
14MAY 74005704
15MAY 74005698
16MAY 71003275
17MAY 74005763
18MAY 74005693
19MAY 74005695
19WP98008545 Whirlpool Screw
20MAY 74005718
21TAPE, FOIL 29“ X 2“
22SCREW
22MAY 74005807
23MAY 71002106
24MAY 74005692
25MAY 74003639
