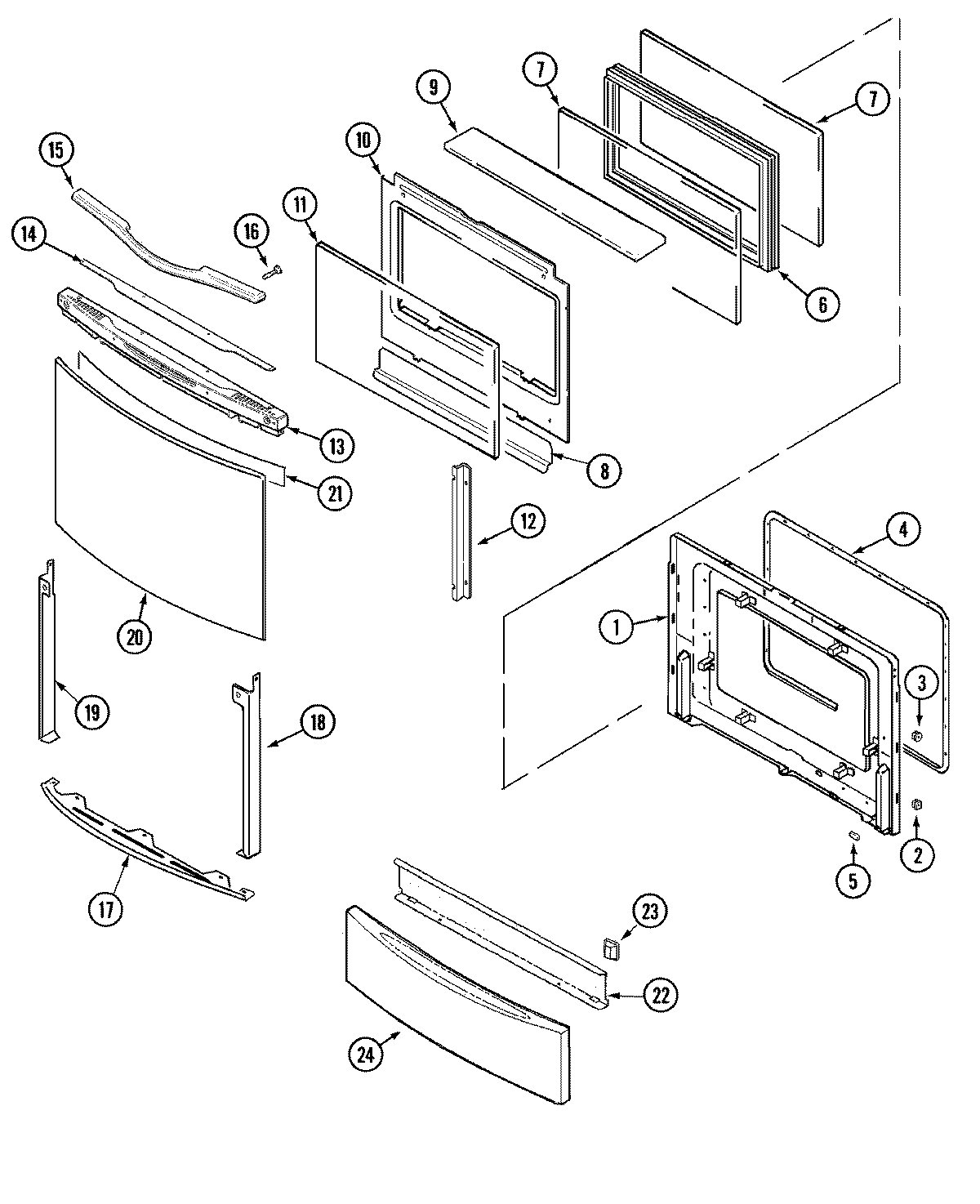

JES9800AAQ 04 – DOOR/ACCESS PANEL

JES9800AAQ 04 – DOOR/ACCESS PANEL

Written by

in

JES9800AAQ 04 – DOOR/ACCESS PANEL

Products

PositionProduct
1MAY 74003642
2NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5WP74005546 Whirlpool RU Spacer
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8MAY 74005761
9INSULATION, OVEN DOOR
10MAY 74003648
11MAY 74005774
12MAY 74003650
13MAY 74005712
14MAY 74005711
15MAY 74005713
16MAY 71003275
17MAY 74005763
18MAY 74005779
19WP74009541 Whirlpool Screw Assembly
19MAY 74005780
20MAY 74005719
21TAPE, FOIL 29“ X 2“
22SCREW
22MAY 74005807
23MAY 71002106
24MAY 74005775
25MAY 74003639
