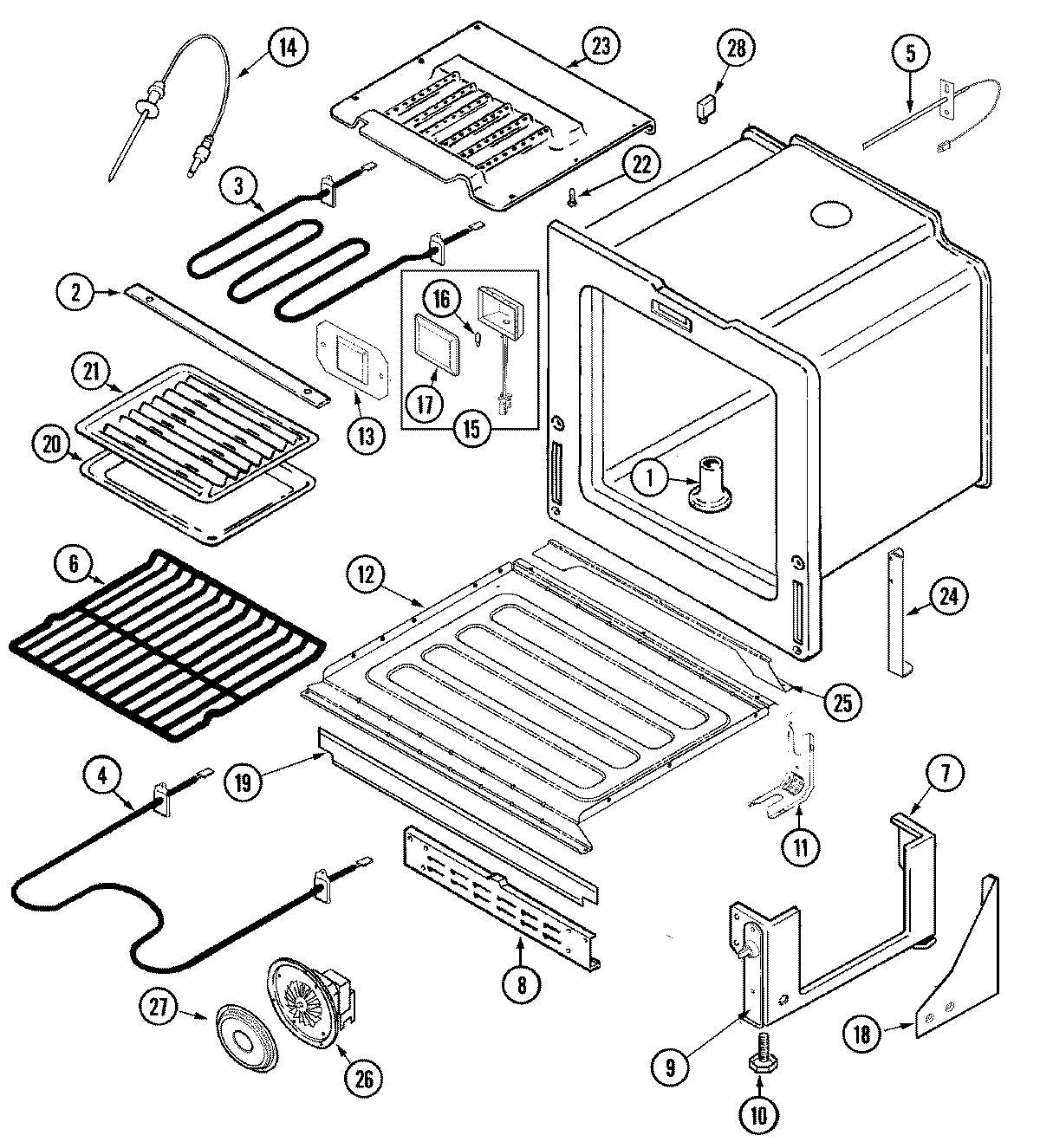

JES9800AAQ 05 – OVEN/BASE

Products

Position	Product
1	MAY 74005720
2	WP400021-1 Whirlpool Screw
2	MAY 74003563
3	W11676350 Whirlpool Broil Element
4	WP74010750 Whirlpool Oven Bake Element
5	12001656 Whirlpool Range Oven Temperature Sensor
6	WPW10282492 Whirlpool Oven Rack
7	MAY 74005772
8	MAY 4020F001-80
9	MAY 74005828
10	W11665456 Whirlpool Range Level Foot
11	WP7101P485-60 Whirlpool Anchor Tip
11	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
12	MAY 74005824
13	MAY 74005777
14	WP71001870 Whirlpool Temperature Probe Sensor
15	MAY 74011220
15	MAY 74005773
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	W10886919 Whirlpool Light Bulb
17	WP74004607 Whirlpool Light Lens
18	MAY 74006083
18	MAY 74006082
19	SCREW (8ABX1/2``-BLK)
19	MAY 74005778
20	MAY Y3401F02019
21	MAY Y3413F01619
23	MAY 74003564
24	SCREW
24	MAY 74004780
25	MAY 74005825
26	MAY 71003203
27	COVER, CONVECT
28	MAY 74009649
28	MAY 71001863
28	MAY Y703356
