JES9800AAS 02 – BODY

JES9800AAS 02 – BODY

Written by

in

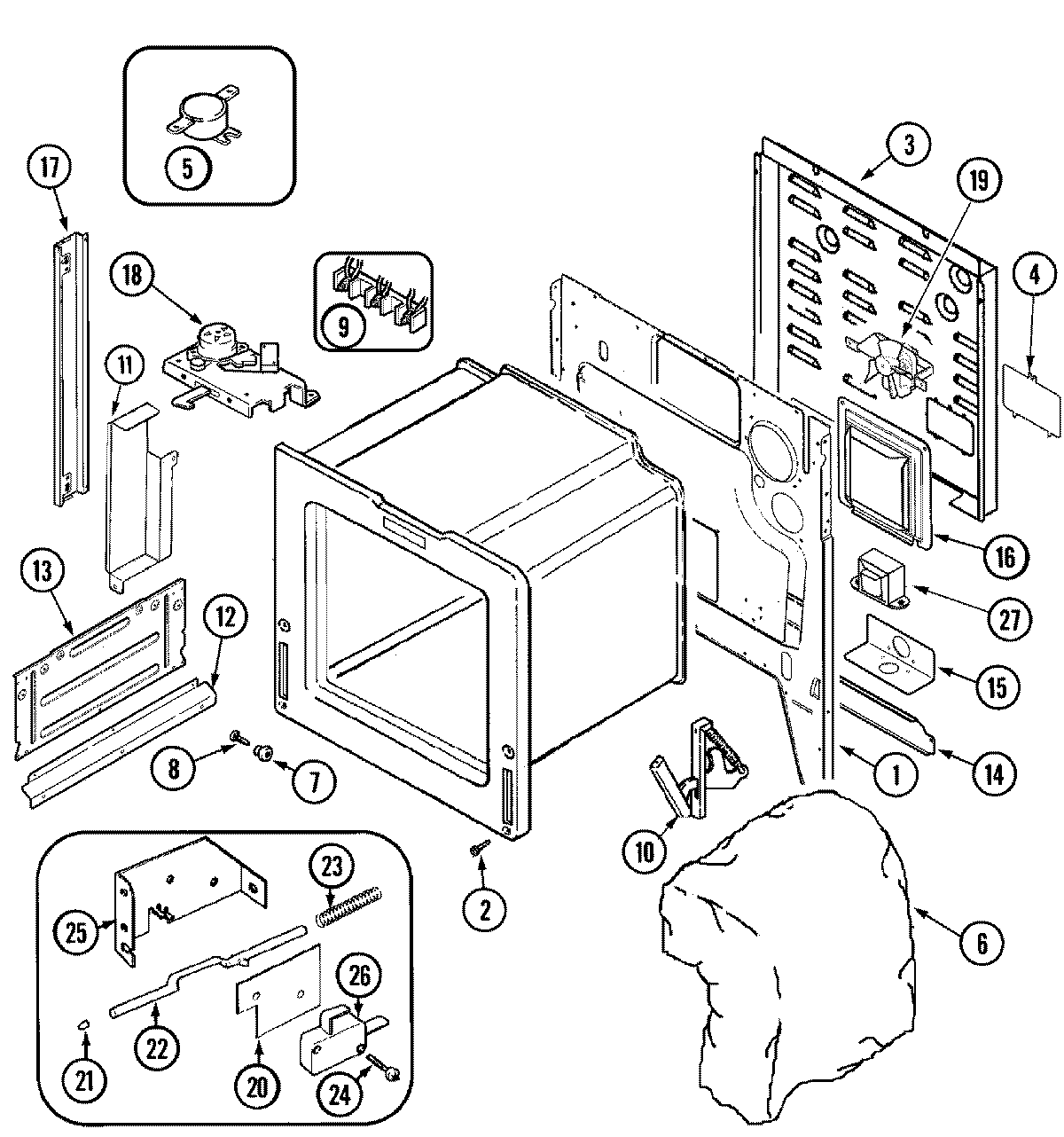

JES9800AAS 02 – BODY

Products

PositionProduct
1MAY 74005721
2SCREW (10-24X5/16-NI)
34005F810-51 Whirlpool Access Cover
4COVER, TERMINAL BLOCK
5WP71001844 Whirlpool Thermostat
6WP74010942 Whirlpool Insulation
6MAY 74005771
6MAY 74003503
7MAY 8004P024-60
8W11693756 Whirlpool Screw Assembly
9MAY 74002230
9WPW10245259 Whirlpool Terminal Block
1074011142 Whirlpool Stove Range Oven Door Hinge and Spring
11MAY 74005876
12MAY 74005728
13MAY 74004177
13MAY 74005854
14MAY 74005722
15W10190166 Whirlpool Service Bracket
16MAY 74004348
17MAY 74004216
18MAY 74005675
18MAY 74004327
1874003975 Whirlpool Screw P1 (8ABX3/8-BLK)
19MAY 74004947
19SCREW
20MAY 74001872
21MAY 74001631
22ROD, DOOR LIGHT SWITCH
24MAY 7101P330-60
25BRACKET, SWITCH ACTUATOR
26MAY 74001802
27MAY 74005416
27NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
