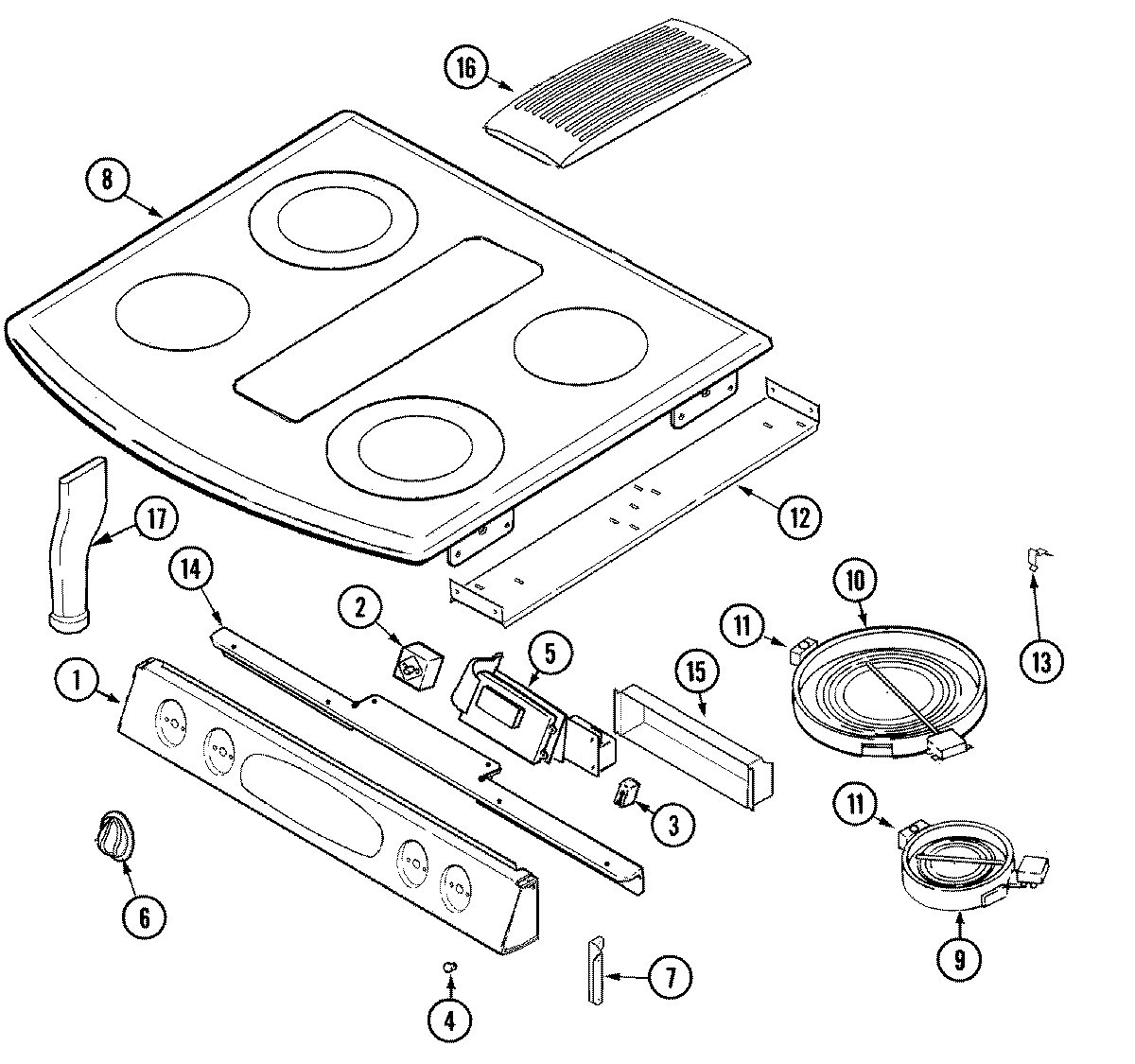

JES9800AAS 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74005747
2	12002125 Whirlpool Range Oven Cooktop Dual Infinite Burner Switch Kit
2	MAY 71003201
2	SWITCH-INF
3	MAY 7407P100-60
4	WP22001948 Whirlpool Indicator Lens
5	MAY 74011559
5	MAY 74006102
5	MAY 74006111
5	MAY 74009618
5	MAY 74007234
5	MAY 74006110
5	MAY 74007235
5	MAY 74009300
5	MAY 74009293
5	MAY 74009320
5	MAY 74005873
6	MAY 74005708
6	MAY 74005706
7	SCREW (8ABX1/2“-BLK)
7	MAY 74005729
8	12002557 Whirlpool Range Cooktop Glass Main Kit
8	MAY 20001099
8	MAY 20001100
9	MAY 74008574
9	MAY 74008573
9	MAY 74007123
9	W10823711 Whirlpool Surface Element Left Front and Right Rear
10	W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
10	MAY 74008577
10	MAY 74007228
11	MAY 71003486
12	MAY 74005760
13	SPRING, ELEMENT SUPPORT
14	MAY 74005756
14	SCREW (8BX3/8-NI)
15	SCREW
15	MAY 74005755
17	MAY 74005808
18	MAY 74005475
18	MAY 71003508
18	MAY 74005529
