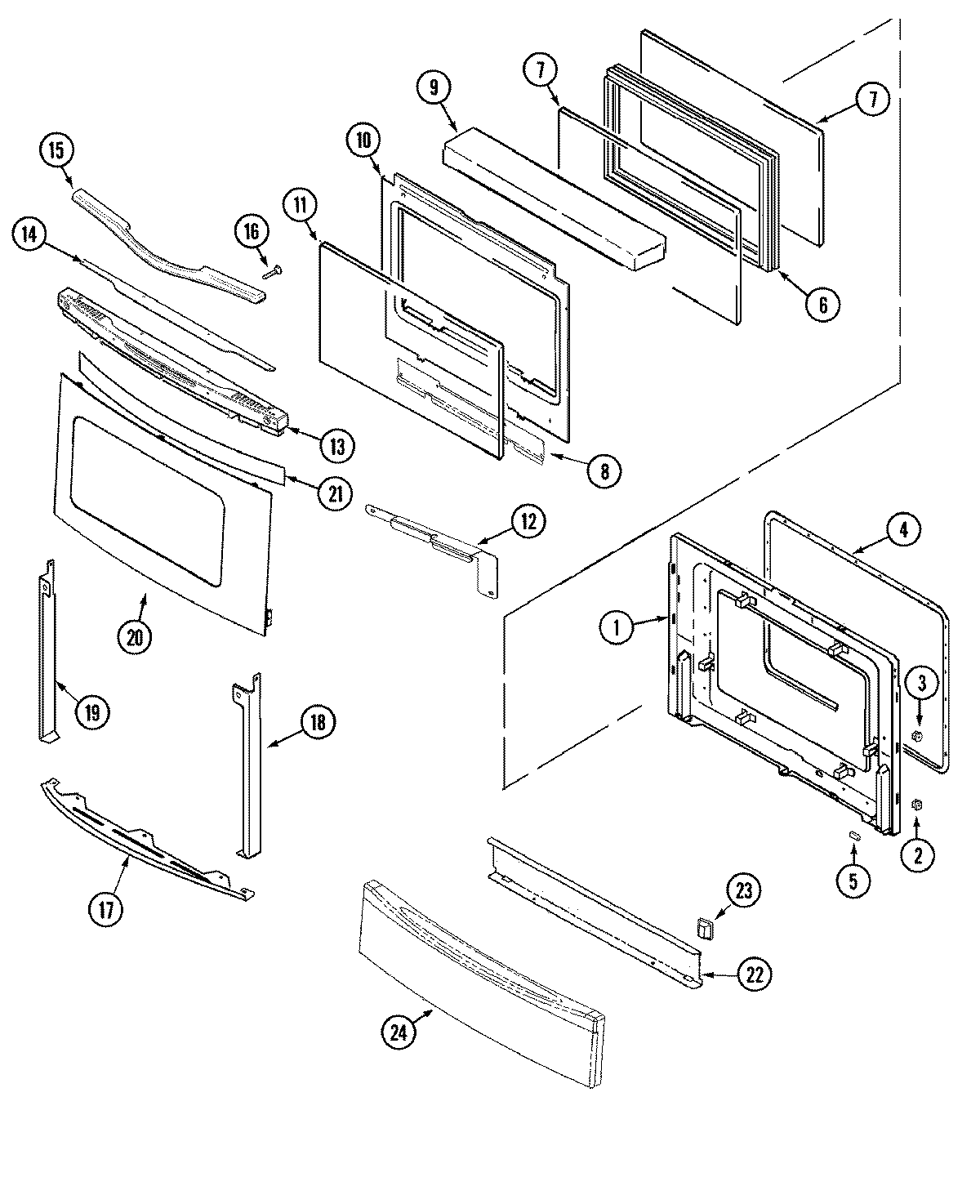

JES9800AAS 04 – DOOR/ACCESS PANEL (STL)

JES9800AAS 04 – DOOR/ACCESS PANEL (STL)

Written by

in

JES9800AAS 04 – DOOR/ACCESS PANEL (STL)

Products

PositionProduct
1MAY 74003642
2NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5WP74005546 Whirlpool RU Spacer
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8MAY 74007215
9INSULATION, OVEN DOOR
10MAY 74003648
11MAY 74007214
12MAY 74007205
12MAY 74001280
12MAY 74007206
13MAY 74005700
14MAY 74005704
14SCREW (8ABX1/2“-BLK)
15MAY 74005698
16MAY 71003275
17MAY 74005763
17MAY 74007207
18MAY 74005693
19MAY 74005695
19WP98008545 Whirlpool Screw
20MAY 74007211
21TAPE, FOIL 29“ X 2“
22SCREW
22MAY 74005807
23MAY 71002106
24MAY 74007210
25MAY 74003639
