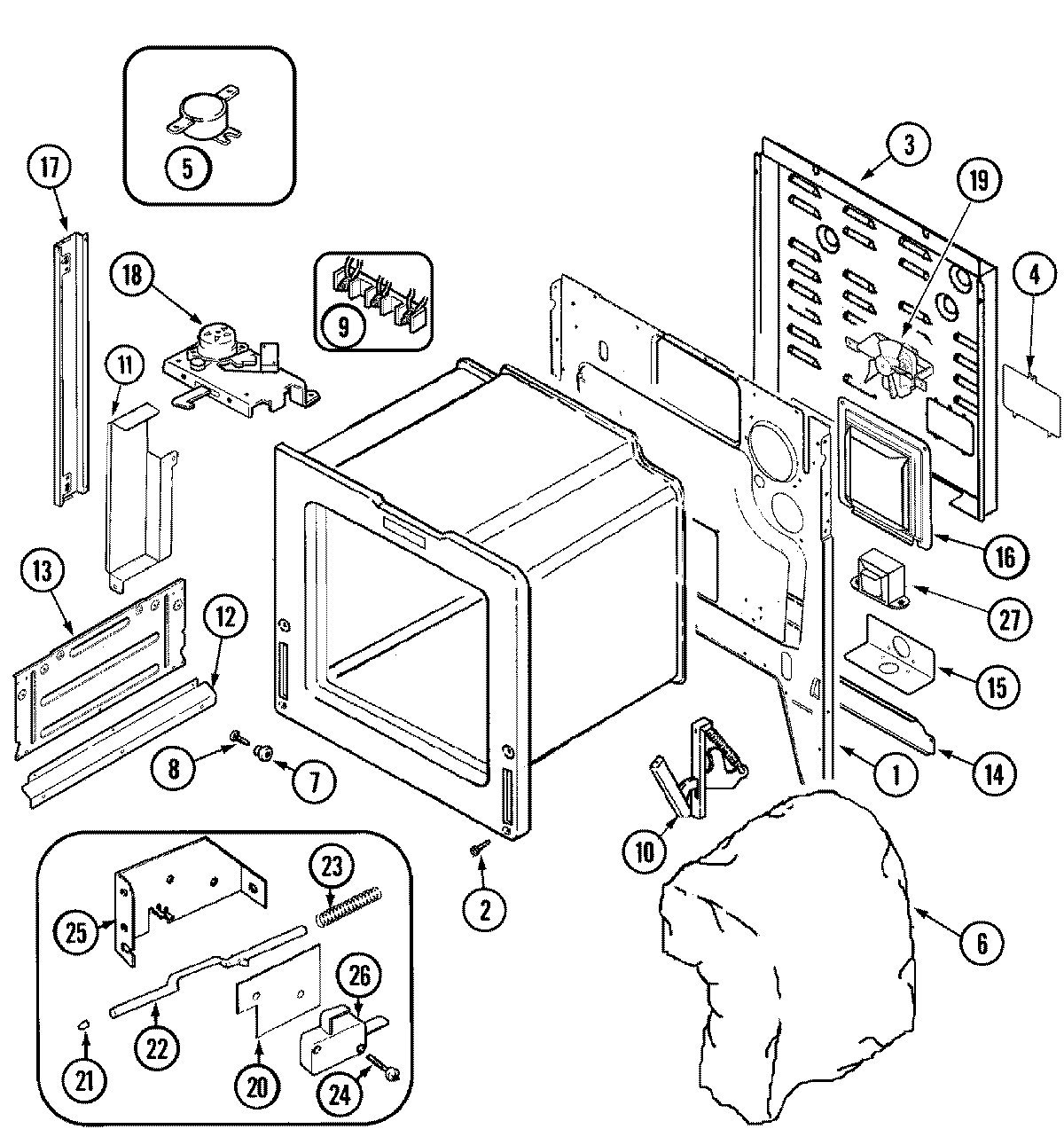

JES9800ACW 02 – BODY

Products

Position	Product
1	MAY 74005721
2	SCREW (10-24X5/16-NI)
3	4005F810-51 Whirlpool Access Cover
4	COVER, TERMINAL BLOCK
5	WP71001844 Whirlpool Thermostat
6	MAY 74005771
6	WP74010942 Whirlpool Insulation
6	MAY 74003503
7	MAY 8004P024-60
8	W11693756 Whirlpool Screw Assembly
9	MAY 74002230
9	WP7103P027-60 Whirlpool Nut
9	WPW10245259 Whirlpool Terminal Block
10	74011142 Whirlpool Stove Range Oven Door Hinge and Spring
11	MAY 74005876
12	MAY 74005728
13	MAY 74006869
14	MAY 74005722
15	W10190166 Whirlpool Service Bracket
16	MAY 74004348
17	MAY 74004182
18	MAY 74007023
18	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
19	MAY 74004947
19	SCREW
20	MAY 74001872
21	MAY 74001631
22	ROD, DOOR LIGHT SWITCH
24	MAY 7101P330-60
25	BRACKET, SWITCH ACTUATOR
26	MAY 74001802
27	MAY 74005416
28	MAY 74006398
29	MAY 74004690
30	SUPPORT, SPARK MODULE
