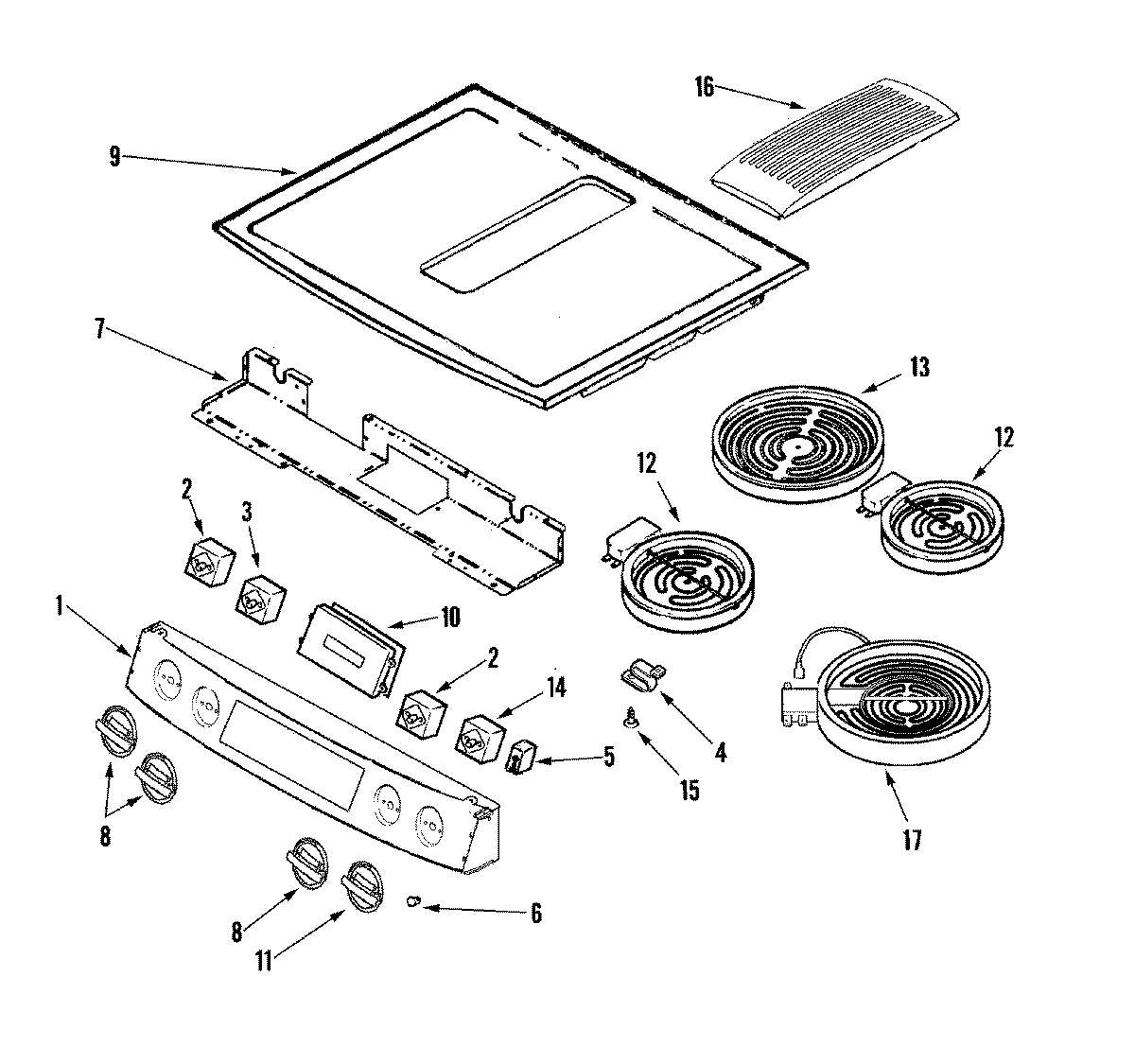

JES9800BAB 03 – CONTROL PANEL/TOP ASY

JES9800BAB 03 – CONTROL PANEL/TOP ASY

Written by

in

JES9800BAB 03 – CONTROL PANEL/TOP ASY

Products

PositionProduct
1WPW10206085 Whirlpool Control Panel
2WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3WP7403P239-60 Whirlpool Oven Switch
4MAY 74007845
5WP74004153 Whirlpool Indicator Light
6WP22001948 Whirlpool Indicator Lens
7MAY 74011761
8WP74011493 Whirlpool Burner Knob
9MAY 74011540
10WP8507P234-60 Whirlpool Control Board
10WP59002061 Whirlpool Microwave Screw
11WP74011550 Whirlpool Stove Burner Control Knob
12MAY 74008573
13MAY 74011552
14SWITCH-ELMNT
15SCREW (6ABX.25-ZN)
17W10823692 Whirlpool Dual Radiant Element
