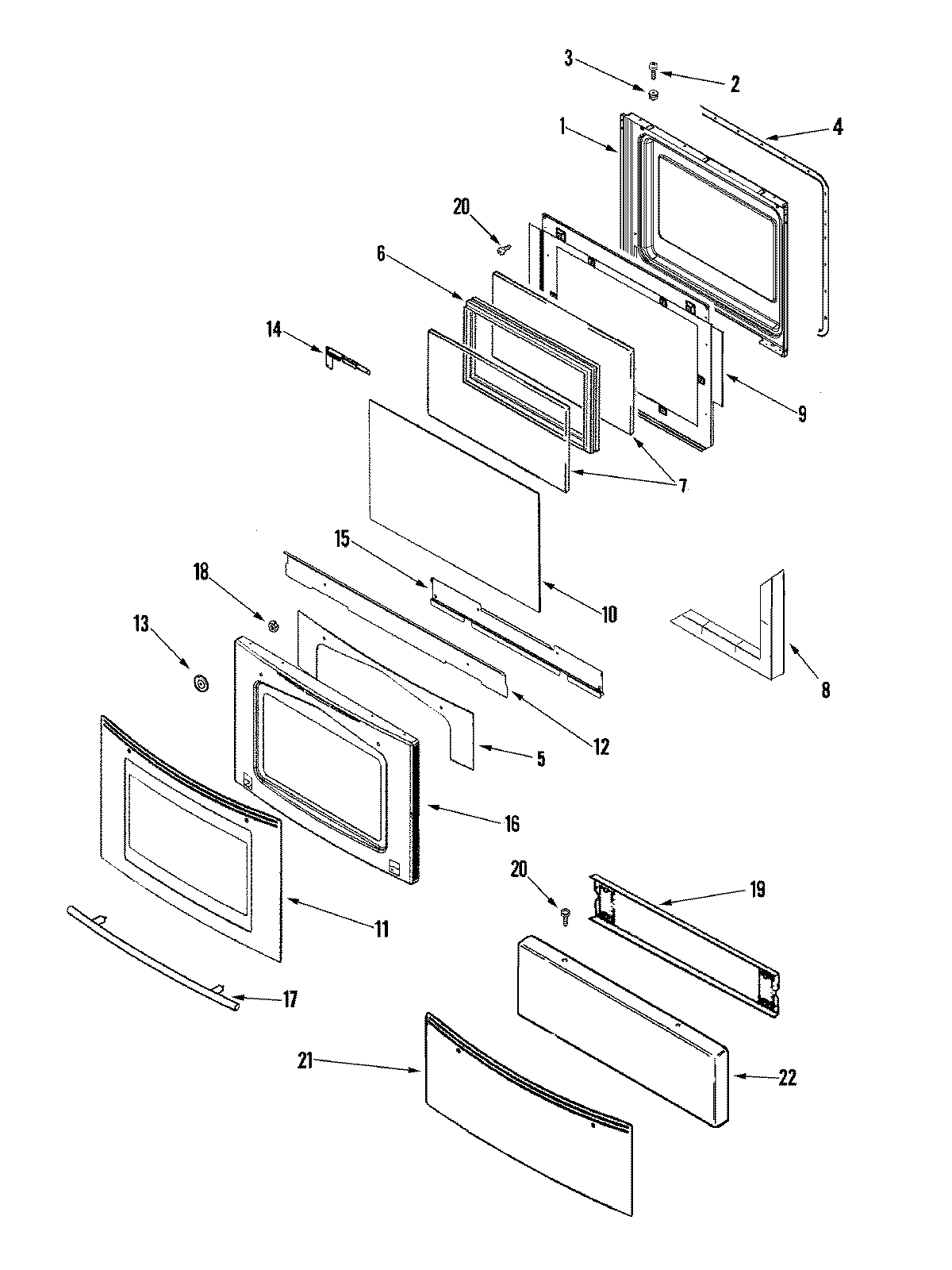

JES9800BAB 04 – DOOR/ACCESS PANEL

Products

PositionProduct
1MAY 74003642
2WP98008545 Whirlpool Screw
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5MAY 74011509
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8INSULATION, OVEN DOOR
9MAY 74011339
10GLASS, DOOR (INNER/COATED)
11MAY 74011511
12MAY 74011049
13MAY 74009194
14MAY 74011503
14MAY 74011504
15MAY 74007215
16MAY 74011507
17WP74008625 Whirlpool Door Handle
18WP3400029 Whirlpool Dishwasher Nut
19MAY 74011554
20WP90767 Whirlpool Screw
21MAY 74011543
22WP2416F086-70 Whirlpool Panel Assembly
