JES9800BAS18 03 – BLOWER ASSEMBLY PARTS – Aparts

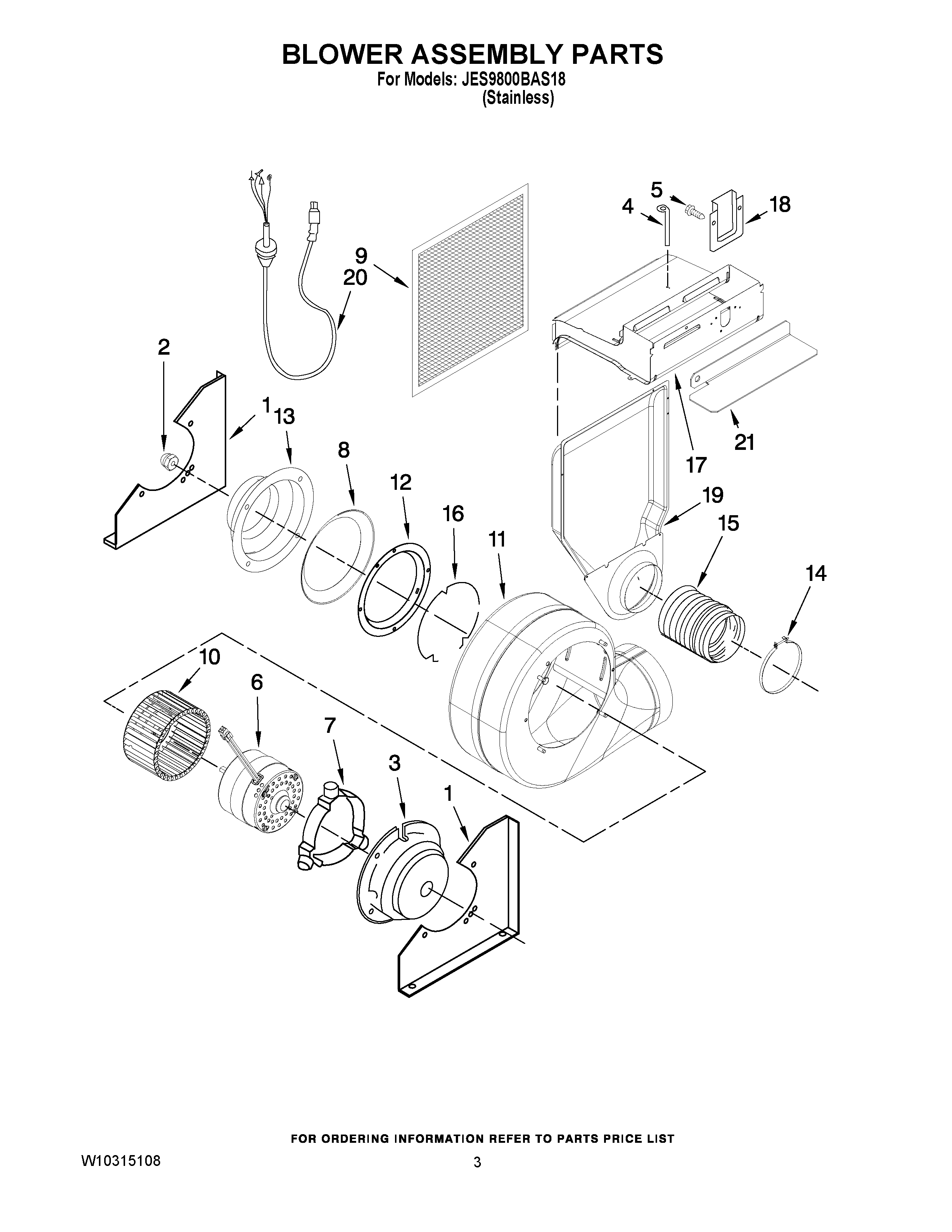

JES9800BAS18 03 – BLOWER ASSEMBLY PARTS

Products

Position	Product
1	MAY 3801F631-51
2	NUT, LOCK
3	MAY 4005F537-80
4	MAY 7809P030-60
5	MAY 7101P426- 60
6	MOTOR, BLOWER
7	ASSEMBLY, MOTOR BAND
8	RING, RESTRICTOR
9	MAY 8310P006-60
10	WHEEL, BLOWER
11	MAY 2822W001-80
12	RING, INLET
13	MAY 2818F001-80
14	MAY 7111P047-60
15	MAY 8032P003-60
16	MAY 8038P003-60
17	ASSEMBLY, PLENUM
18	MAY 4005F779-80
19	ASSEMBLY, PLENUM SIDE
20	MAY 7402P104-60
21	MAY 8404P011-60
