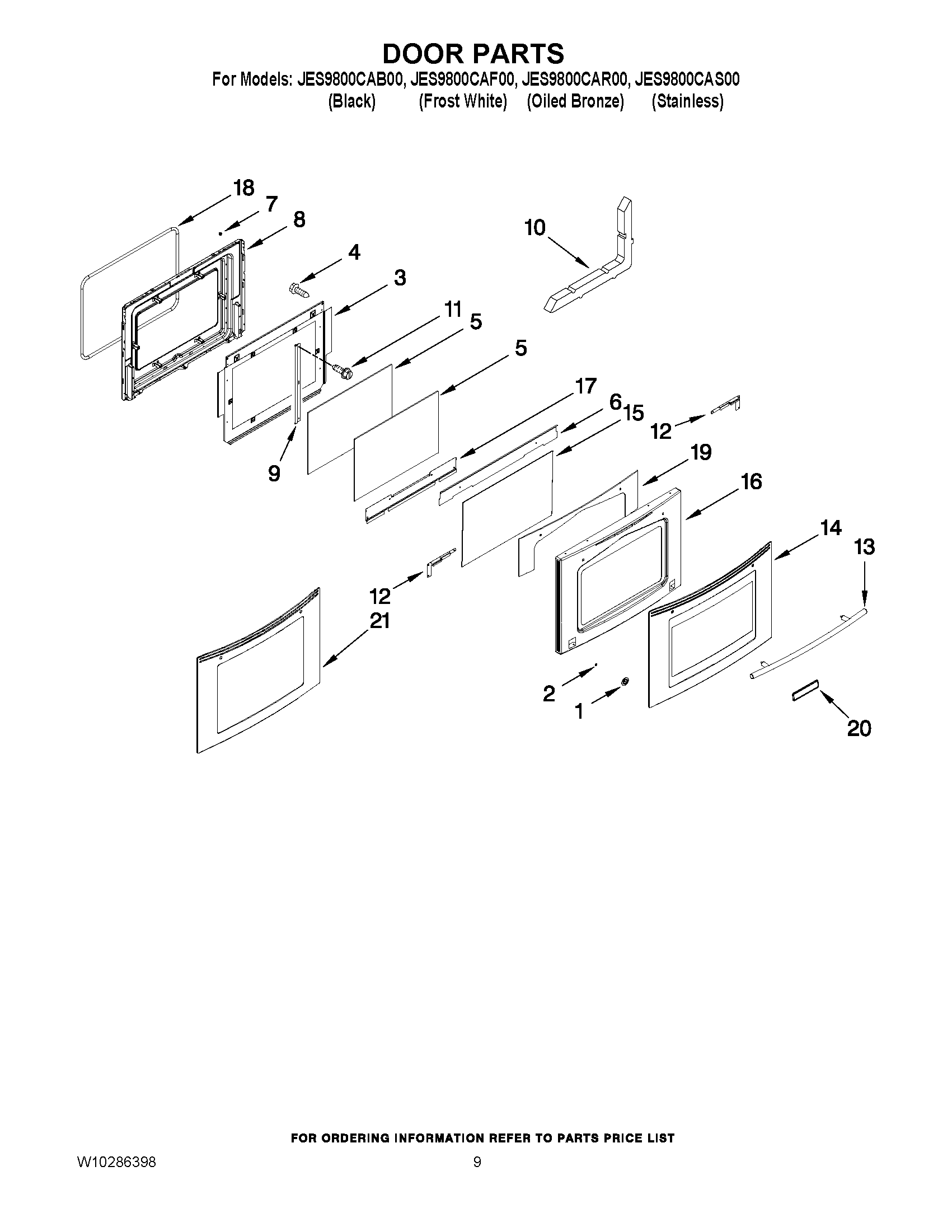

JES9800CAR00 07 – DOOR PARTSadmin2025-04-26T09:23:00+00:00JES9800CAR00 07 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | MAY 7109P082-60 |
| 2 | MAY 7103P176-60 |
| 3 | MAY 3601F373-51 |
| 4 | MAY 7101P376-60 |
| 5 | Glass, Inner |
| 6 | MAY 3604F418-51 |
| 7 | MAY 7103P141-60 |
| 8 | MAY 2402W312-19 |
| 9 | BRACKET, INNER GLASS |
| 10 | MAY 7002P246-60 |
| 11 | MAY 7101P426- 60 |
| 12 | MAY 3804F307-51 |
| 12 | MAY 3804F308-51 |
| 13 | MAY W10223163 |
| 13 | MAY W10223164 |
| 13 | MAY W10223152 |
| 13 | MAY W10223165 |
| 14 | MAY W10235391 |
| 14 | MAY W10235390 |
| 14 | MAY W10272330 |
| 14 | MAY W10272332 |
| 15 | GLASS, INNER COATED |
| 16 | MAY 3603F075-71 |
| 16 | MAY 3603F075-70 |
| 17 | RETAINER, GLASS (LOWER) |
| 18 | MAY W10162384 |
| 19 | MAY 7002P465-60 |
| 20 | ASSEMBLY, BADGE (WHITE) |
| 20 | ASSEMBLY, BADGE (OILED BRONZE) |
| 20 | ASSEMBLY, BADGE (STAINLESS) |
| 20 | ASSEMBLY, BADGE (BLACK) |
| 21 | FRAME, DOOR (OILED BRONZE) |
| 21 | FRAME, DOOR (OVERLAY, SS) |
