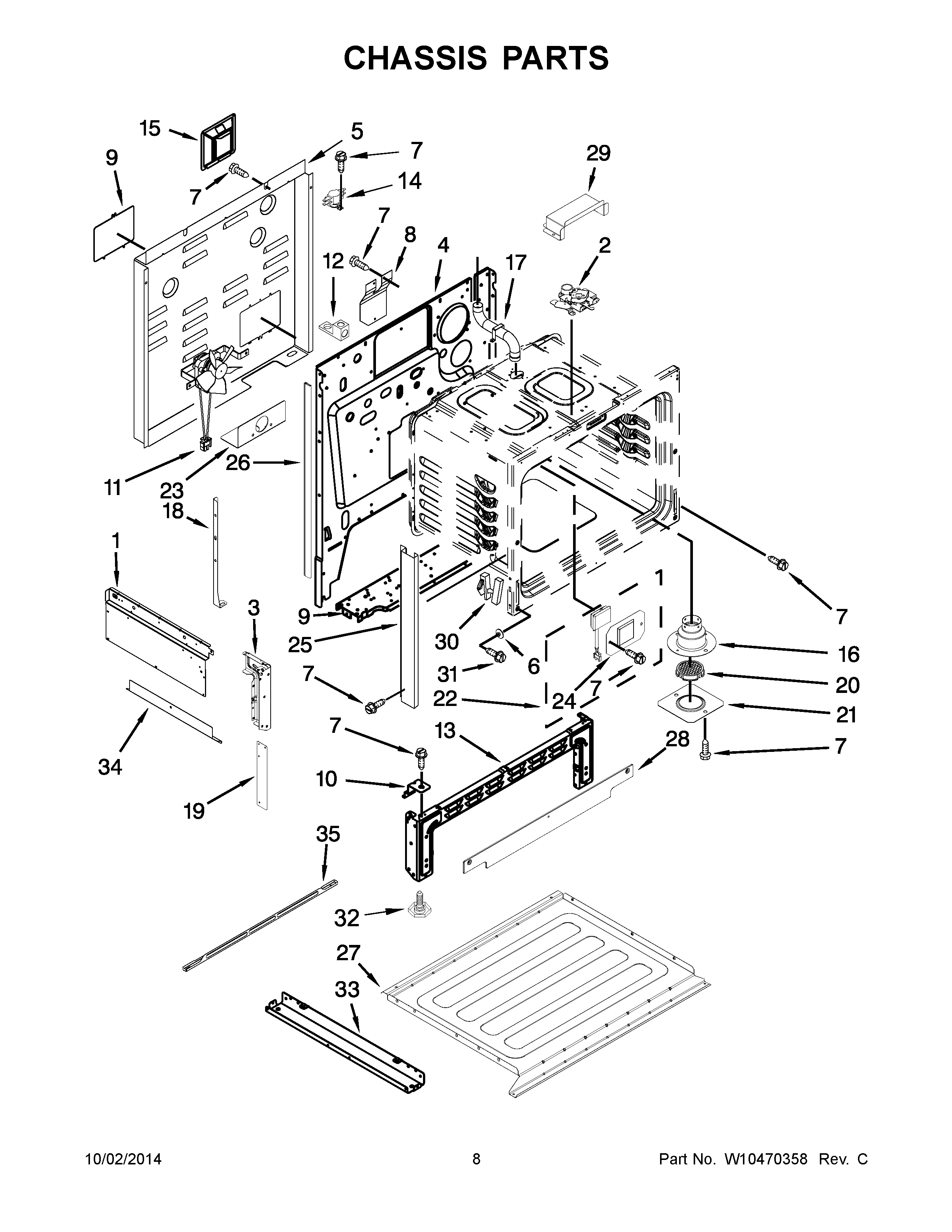

JES9800CAR01 05 – CHASSIS PARTSadmin2025-04-26T09:23:08+00:00JES9800CAR01 05 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY 7002P468-60 |
| NI | INSULATION, OVEN BOTTOM |
| NI | MAY 7002P466-60 |
| 1 | MAY 2618F202-51 |
| 1A | MAY 2618F206-51 |
| 2 | LATCH ASSEMBLY |
| 3 | MAY 4020F033-80 |
| 3A | MAY 4020F032-80 |
| 4 | BACK, MAIN |
| 5 | COVER, MAIN WIRE |
| 6 | MAY 8004P024-60 |
| 7 | MAY 7101P426- 60 |
| 8 | MAY 7003P101-60 |
| 9 | COVER, TERMINAL |
| 10 | MAY 3807F615-51 |
| 11 | MAY W10586440 |
| 12 | BLOCK, WIRE ADAPTER (3) |
| 13 | PEDESTAL, FRONT |
| 14 | THERMOSTAT, HI-LIMIT |
| 15 | INSULATION |
| 16 | MAY 8026P096-60 |
| 17 | MAY 8026P094-60 |
| 18 | MAY 3807F732-51 |
| 19 | MAY 3801F929-51 |
| 20 | SCREEN, SMOKE ELM. |
| 21 | MAY 3605F344-45 |
| 22 | MAY 7407P180-60 |
| 23 | MAY 3801F911-51 |
| 24 | MAY 4005F684-51 |
| 25A | MAY 3608F138-71 |
| 25 | TRIM, SIDE (BLACK (2)) |
| 26 | MAY W10183566 |
| 27 | RETAINER, INSUL. (BOTTOM) |
| 28 | TRIM, FRONT FRAME |
| 29 | COVER, DOOR LATCH |
| 30 | Hinge, Door (2) |
| 31 | SCREW, SHOULDER |
| 32 | LEG, LEVELING |
| 33 | MAY 4020W035-80 |
| 34 | MAY 3826F064-51 |
| 35 | SUPPORT, BROIL ELEMENT |
