JES9800CAS02 05 – CHASSIS PARTS

JES9800CAS02 05 – CHASSIS PARTS

Written by

in

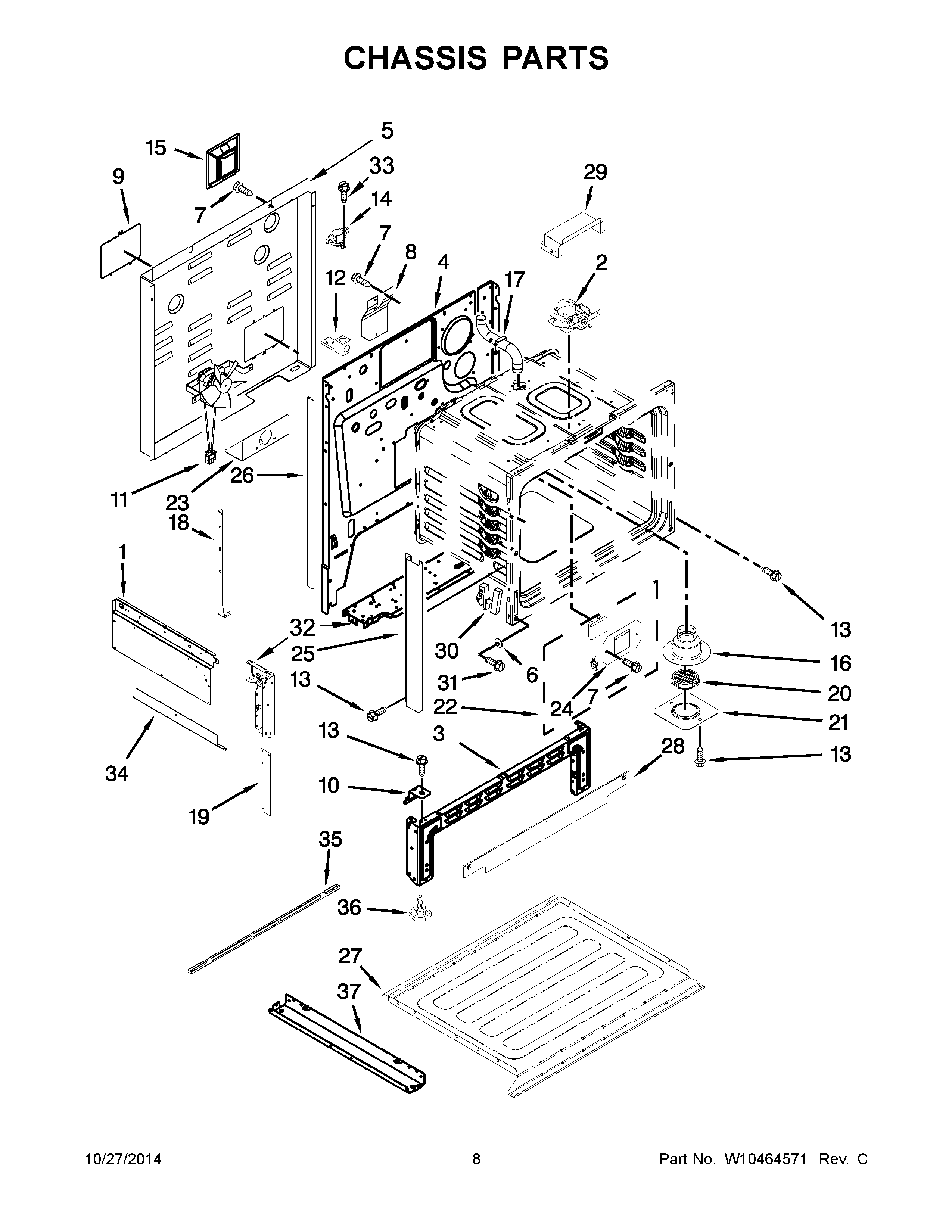

JES9800CAS02 05 – CHASSIS PARTS

Products

Position	Product
NI	MAY 3804F305-51
NI	MAY 7002P468-60
NI	INSULATION, OVEN BOTTOM
NI	MAY 7002P466-60
1	MAY 2618F202-51
1A	MAY 2618F206-51
2	LATCH ASSEMBLY
3	PEDESTAL, FRONT
4	BACK, MAIN
5	COVER, MAIN WIRE
6	MAY 8004P024-60
8	MAY 7003P101-60
9	COVER, TERMINAL
10	MAY 3807F615-51
11	MAY W10586440
12	BLOCK, WIRE ADAPTER (3)
14	THERMOSTAT, HI-LIMIT
15	INSULATION
16	MAY 8026P096-60
17	MAY 8026P094-60
18	MAY 3807F732-51
19	MAY 3801F929-51
20	SCREEN, SMOKE ELM.
21	MAY 3605F344-45
22	MAY 7407P180-60
23	MAY 3801F911-51
24	MAY 4005F684-51
25	TRIM, SIDE (BLACK (2))
26	MAY W10183566
27	RETAINER, INSUL. (BOTTOM)
28	TRIM, FRONT FRAME
29	COVER, DOOR LATCH
30	Hinge, Door (2)
31	MAY W10601078
32	MAY 4020F033-80
32A	MAY 4020F032-80
33	MAY 7101P426- 60
34	MAY 3826F064-51
35	SUPPORT, BROIL ELEMENT
36	LEG, LEVELING
37	MAY 4020W035-80
