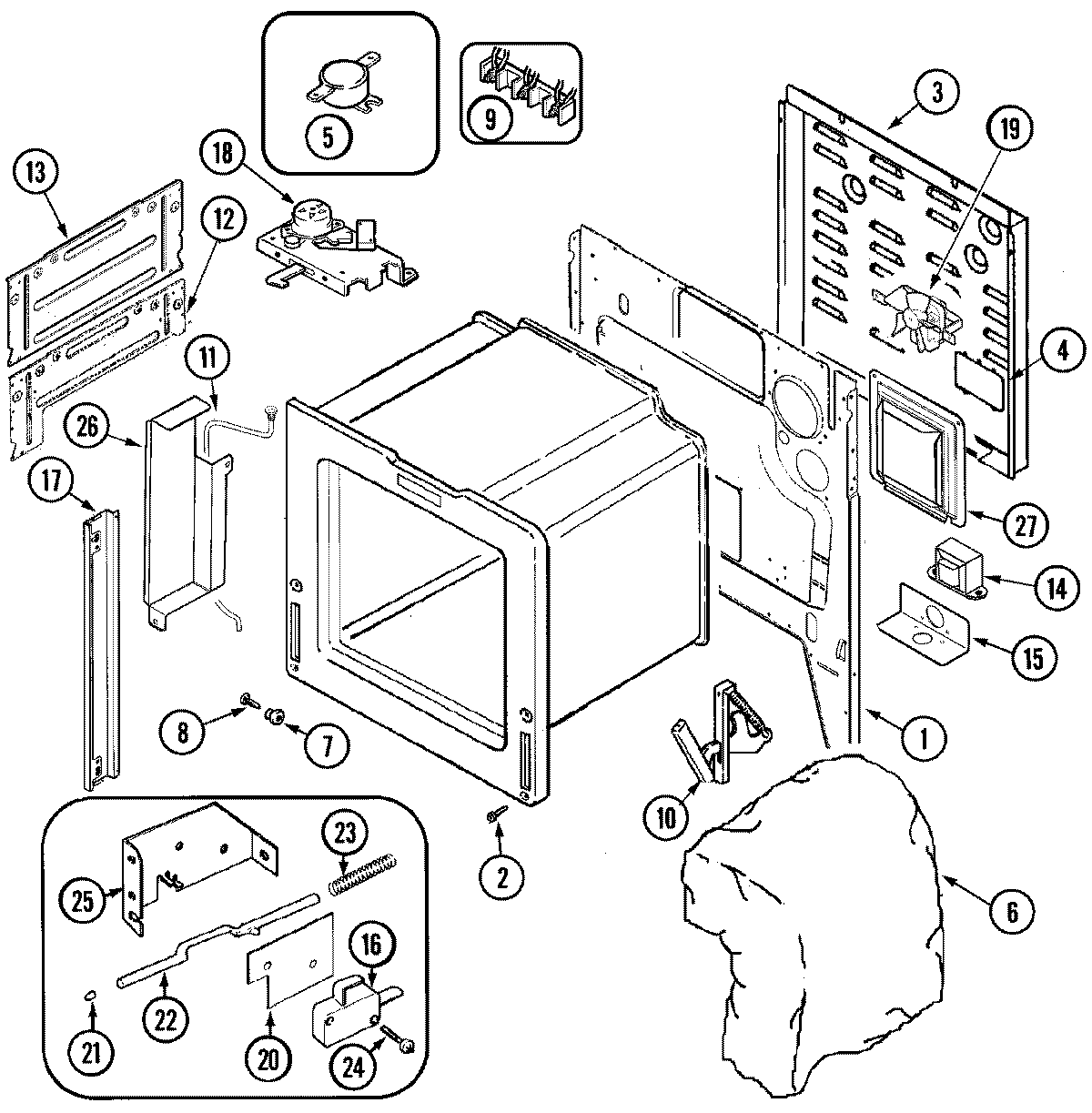

JES9860AAB 02 – BODY

JES9860AAB 02 – BODY

Written by

in

JES9860AAB 02 – BODY

Products

PositionProduct
1MAY 74005721
2SCREW (10-24X5/16-NI)
3MAY 74005265
4COVER, TERMINAL BLOCK
5WP71001844 Whirlpool Thermostat
6MAY 74005838
6MAY 74005840
6MAY 74005839
7MAY 8004P024-60
8W11693756 Whirlpool Screw Assembly
9WPW10245259 Whirlpool Terminal Block
9MAY 74002230
1074011142 Whirlpool Stove Range Oven Door Hinge and Spring
11MAY 702748
11MAY 74005855
12MAY 74005854
12MAY 74005728
13MAY 74004177
14NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
14MAY 74005416
15MAY 71003644
16MAY 74001802
17MAY 74004216
18MAY 74004327
18MAY 74005675
1874003975 Whirlpool Screw P1 (8ABX3/8-BLK)
19MAY 74004947
19SCREW
20MAY 74001872
21MAY 74001631
22ROD, DOOR LIGHT SWITCH
24MAY 7101P330-60
25BRACKET, SWITCH ACTUATOR
26MAY 74005876
27MAY 74004348
