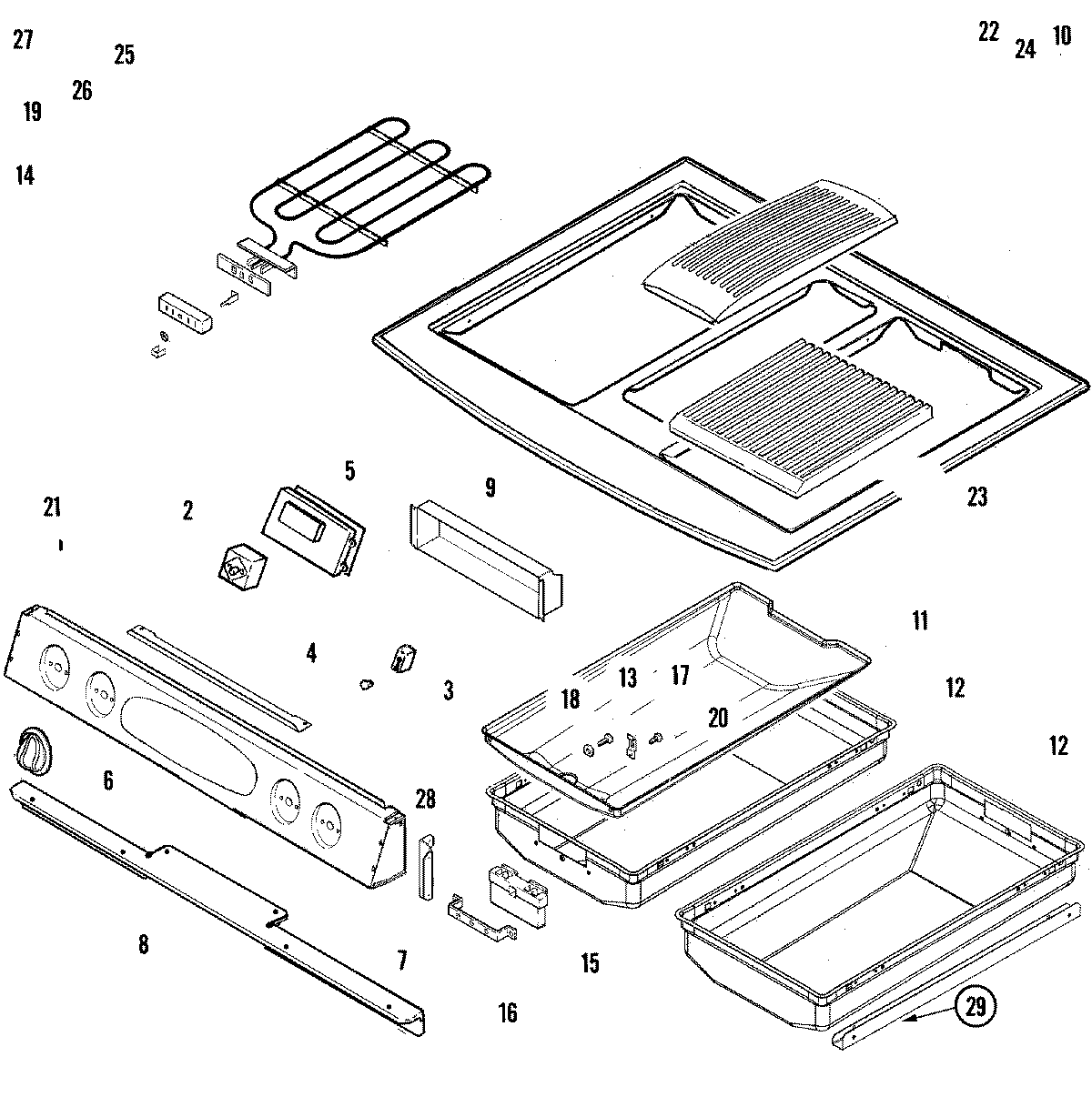

JES9860AAW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74005748
2	SWITCH-INF
2	MAY 71003201
3	MAY 7407P100-60
4	WP22001948 Whirlpool Indicator Lens
5	MAY 74006362
5	MAY 74009319
5	MAY 74005873
5	MAY 74005924
5	MAY 74006102
5	MAY 74009295
5	MAY 74011561
5	MAY 74005922
5	MAY 74005923
5	MAY 74005925
6	MAY 74005705
7	MAY 74005729
7	SCREW (8ABX1/2“-BLK)
8	MAY 74005756
8	SCREW (8BX3/8-NI)
9	MAY 74005755
9	SCREW
10	MAY 74005808
11	MAY 74005797
12	MAY Y702825
12	MAY 74005800
12	MAY 74005799
14	WPY708730 Whirlpool Terminal Block
15	MAY 71002328
15	MAY 71002327
15	MAY 74005815
15	MAY 74005816
15	MAY 74005813
15	WPY702434 Whirlpool Receptacle
15	WP5708M007-60 Whirlpool Wire Harness
15	MAY 71002325
16	MAY 74005798
16	MAY 702748
17	74004835 Whirlpool Clip
18	MAY 702747
19	Y708862 Whirlpool Speed Nut
20	WP489128 Whirlpool Refrigerator Screw
21	MAY Y700450
22	GRILLE
23	MAY 74006513
23	MAY 74005795
24	MAY 74005819
25	MAY Y700449
26	Y708572 Whirlpool Spade Contact
27	WPW10310263 Whirlpool Grille Element
28	MAY 74005877
29	MAY 74005817
30	MAY 71003508
30	MAY 16008409
30	MAY 74005475
30	MAY 74005523
