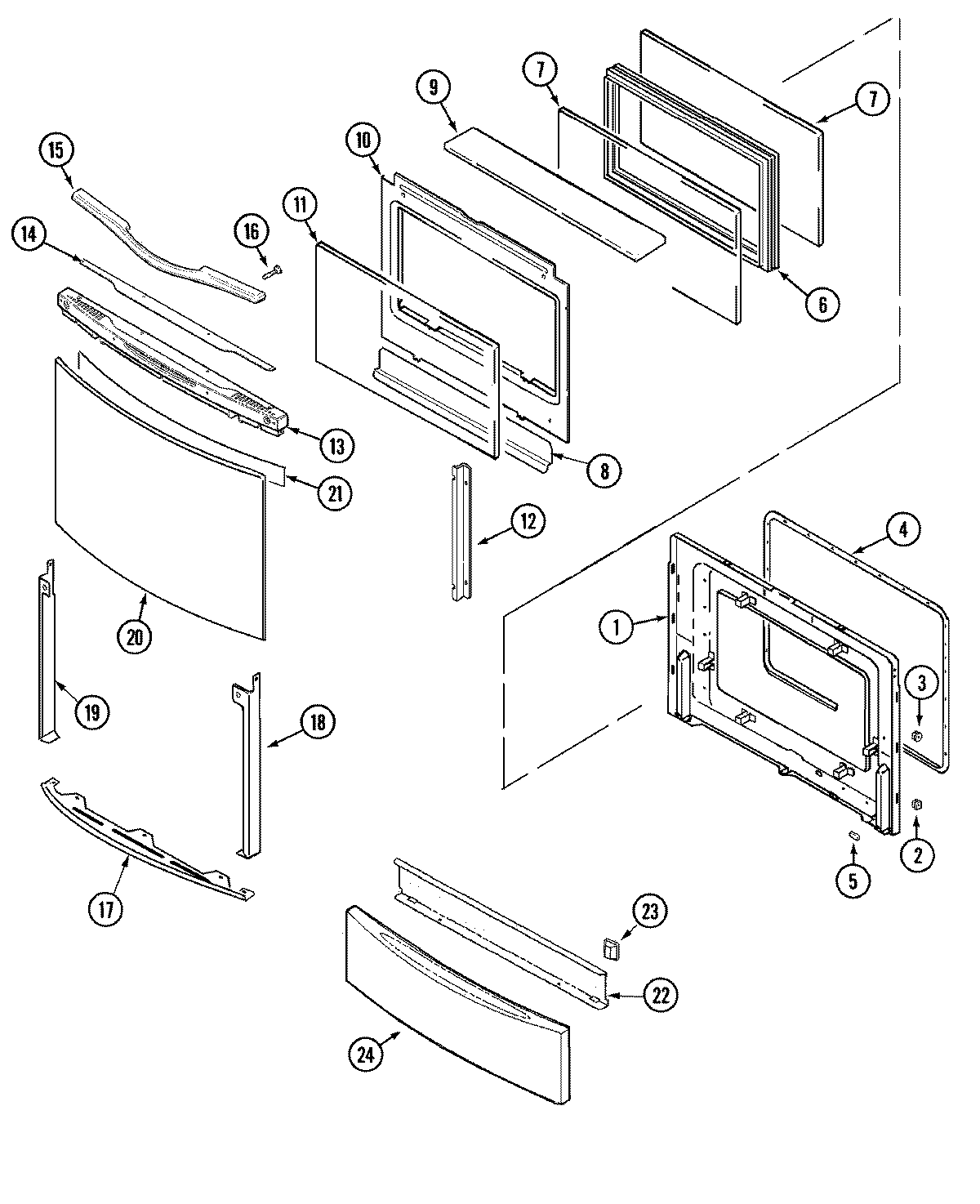

JES9860ACB 04 – DOOR/ACCESS PANEL

Products

Position	Product
1	MAY 74003642
2	NUT, SNAP (ROUND-WHT)
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
5	WP74005546 Whirlpool RU Spacer
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	MAY 74005761
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	MAY 74005774
12	MAY 74003650
13	MAY 74005700
14	SCREW (8ABX1/2``-BLK)
14	MAY 74005704
15	MAY 74005698
16	MAY 71003275
17	MAY 74005763
18	MAY 74005693
19	MAY 74005695
19	WP98008545 Whirlpool Screw
20	MAY 74005718
21	TAPE, FOIL 29`` X 2``
22	SCREW
22	MAY 74005807
23	MAY 71002106
24	MAY 74005692
25	MAY 74003639
