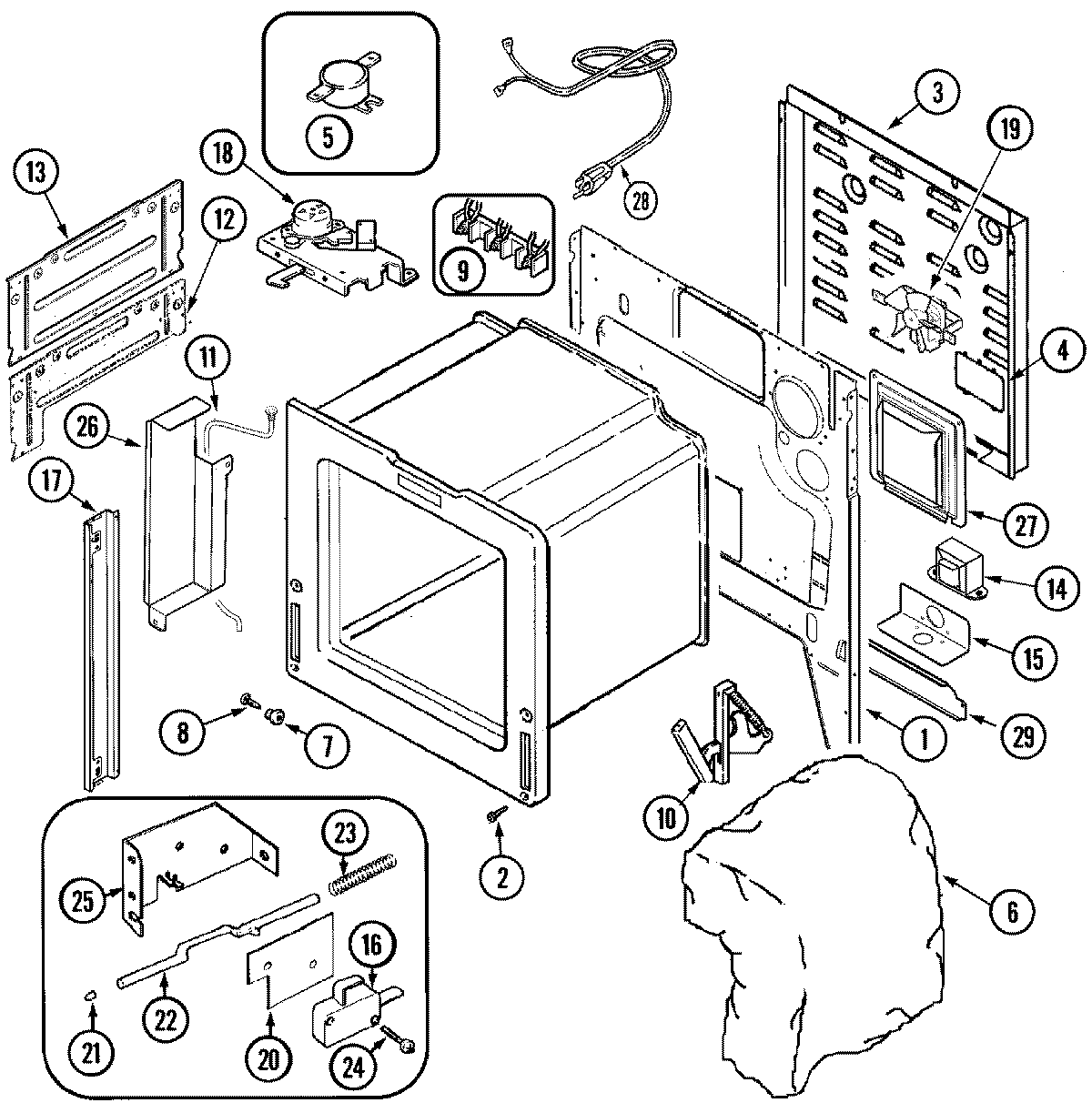

| 1 | MAY 74005721 |
| 2 | SCREW (10-24X5/16-NI) |
| 3 | 4005F810-51 Whirlpool Access Cover |
| 4 | COVER, TERMINAL BLOCK |
| 5 | WP71001844 Whirlpool Thermostat |
| 6 | MAY 74006357 |
| 6 | MAY 74005839 |
| 6 | MAY 74005840 |
| 7 | MAY 8004P024-60 |
| 8 | W11693756 Whirlpool Screw Assembly |
| 9 | MAY 7401P038-60 |
| 9 | MAY 74002230 |
| 10 | 74011142 Whirlpool Stove Range Oven Door Hinge and Spring |
| 11 | MAY 74005855 |
| 12 | MAY 74005728 |
| 12 | MAY 74005854 |
| 13 | MAY 74004177 |
| 14 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 14 | MAY 74005416 |
| 15 | MAY 71003644 |
| 16 | MAY 74001802 |
| 17 | MAY 74004182 |
| 18 | 74003975 Whirlpool Screw P1 (8ABX3/8-BLK) |
| 18 | MAY 74005675 |
| 19 | MAY 74004947 |
| 19 | SCREW |
| 20 | MAY 74001872 |
| 21 | MAY 74001631 |
| 22 | ROD, DOOR LIGHT SWITCH |
| 24 | MAY 7101P330-60 |
| 25 | BRACKET, SWITCH ACTUATOR |
| 26 | MAY 74005876 |
| 27 | MAY 74004348 |
| 28 | MAY 7402P050-60 |
| 28 | SCREW (10ABX1.0-ZN) |
| 28 | INSULATOR, POWER CORD |
| 29 | MAY 74005722 |
