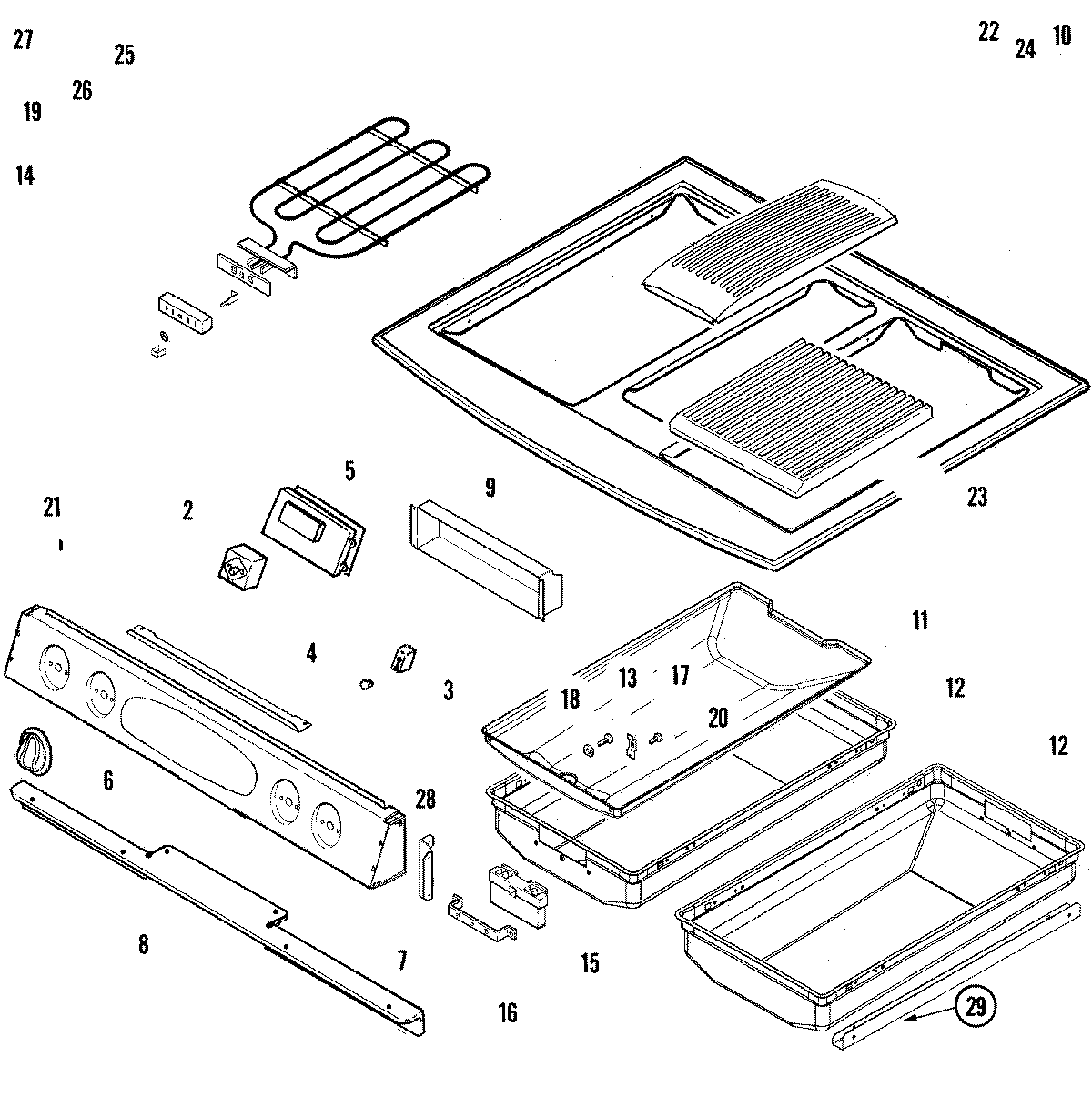

JES9860ACW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74005748
2	MAY 71003201
2	SWITCH-INF
3	MAY 7407P100-60
4	WP22001948 Whirlpool Indicator Lens
4	MAY 74009868
5	MAY 74005925
5	MAY 74005735
5	MAY 74006102
5	MAY 74005873
6	MAY 74005705
7	MAY 74005729
7	SCREW (8ABX1/2“-BLK)
8	MAY 74005756
8	SCREW (8BX3/8-NI)
9	MAY 74005755
9	SCREW
10	MAY 74005808
11	MAY 74005797
12	MAY 74005799
12	MAY 74005800
12	MAY Y702825
14	WPY708730 Whirlpool Terminal Block
15	WPY702434 Whirlpool Receptacle
15	MAY 74007224
15	MAY 74007223
16	MAY 702748
16	MAY 74005798
17	74004835 Whirlpool Clip
18	MAY 702747
19	Y708862 Whirlpool Speed Nut
20	WP489128 Whirlpool Refrigerator Screw
21	MAY Y700450
22	GRILLE
23	MAY 74005795
23	MAY 74006513
24	MAY 74005819
25	MAY Y700449
26	Y708572 Whirlpool Spade Contact
27	WPW10310263 Whirlpool Grille Element
28	MAY 74005877
28	WP12990527 Whirlpool Microwave Screw
29	W10828565 Whirlpool Screw
29	MAY 74005817
30	MAY 74005523
30	MAY 74005475
30	MAY 71003508
30	MAY 16008409
