JES9860BAW 03 – CONTROL PANEL/TOP ASSEMBLY

JES9860BAW 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

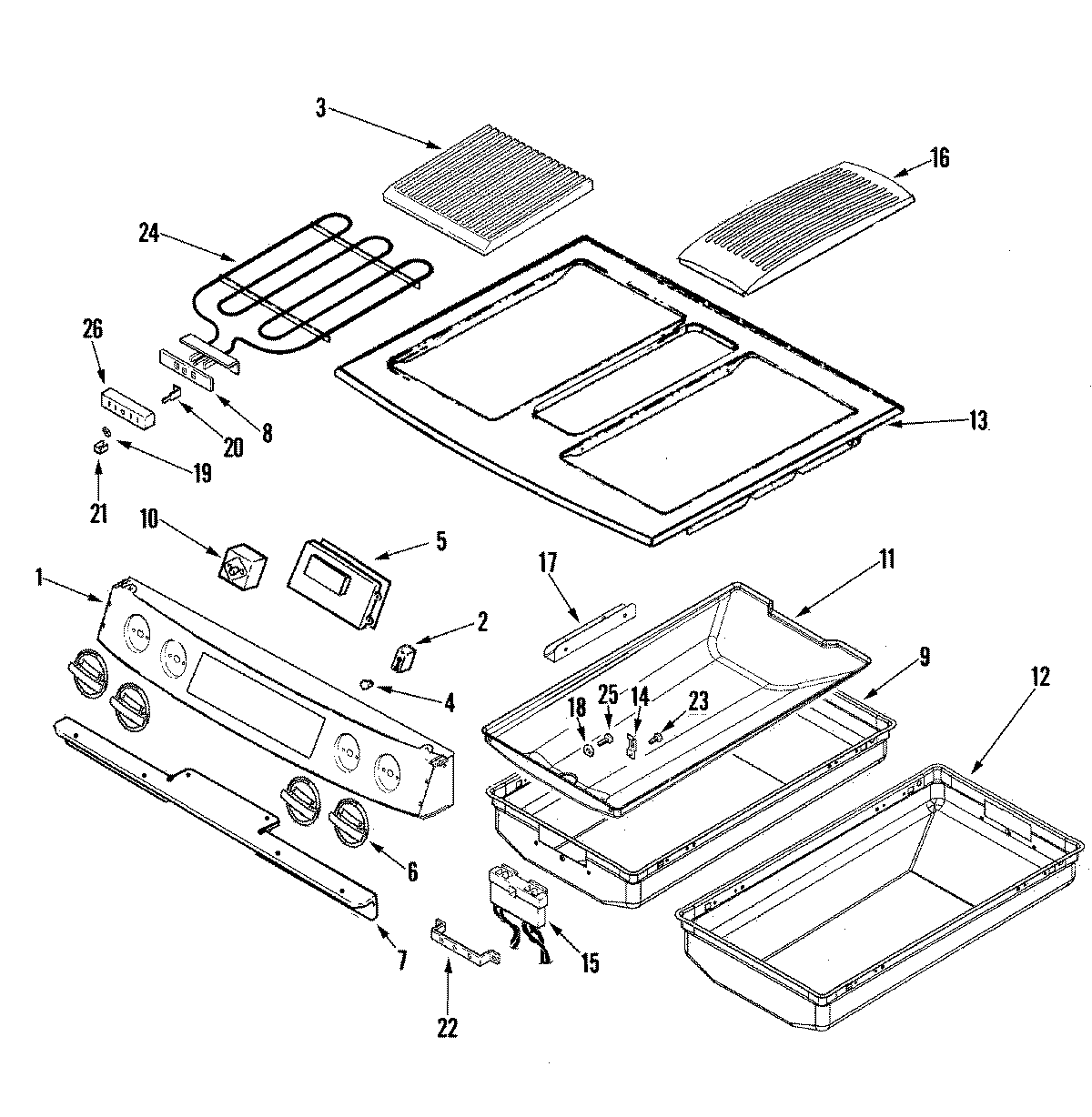

JES9860BAW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011539
2WP74004153 Whirlpool Indicator Light
3MAY 74006513
4WP22001948 Whirlpool Indicator Lens
5WP8507P234-60 Whirlpool Control Board
5WP59002061 Whirlpool Microwave Screw
6WP74011493 Whirlpool Burner Knob
7WP90767 Whirlpool Screw
7MAY 74011495
8MAY Y700449
9MAY 74005799
10WP74011489 Whirlpool Switch Assembly
11MAY 74005797
12MAY 74005800
13COOKTOP (WHITE)
13MAY 74011501
1474004835 Whirlpool Clip
15MAY 74011496
15MAY 74011497
17MAY 74011599
18MAY 702747
19Y708862 Whirlpool Speed Nut
20Y708572 Whirlpool Spade Contact
21MAY Y700450
22MAY 74005798
24WPW10310263 Whirlpool Grille Element
25WP489128 Whirlpool Refrigerator Screw
26WPY708730 Whirlpool Terminal Block
