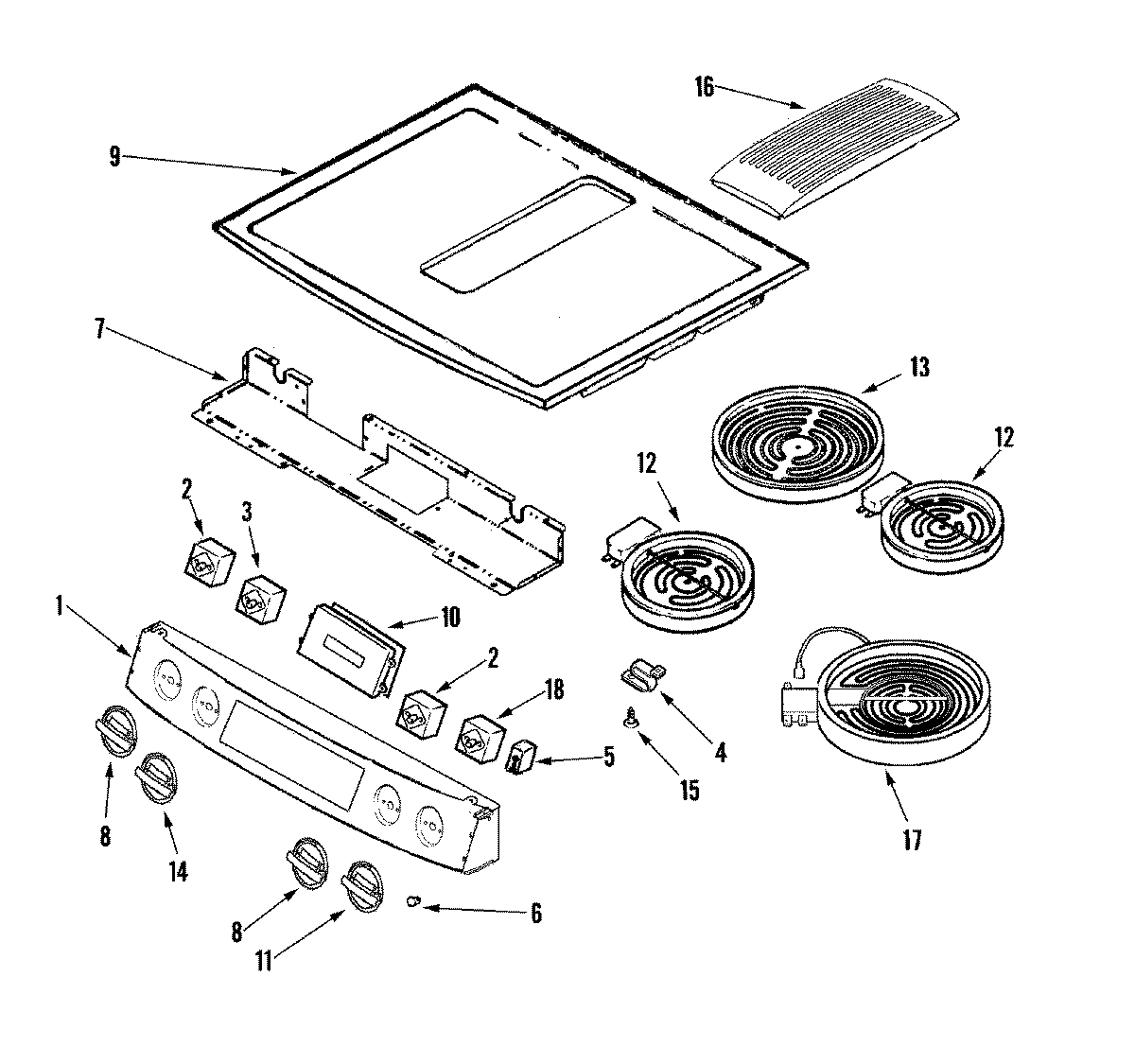

JES9900BAB 03 – CONTROL PANEL/TOP ASY

JES9900BAB 03 – CONTROL PANEL/TOP ASY

Written by

in

JES9900BAB 03 – CONTROL PANEL/TOP ASY

Products

PositionProduct
1MAY 74011576
2WP74008940 Whirlpool Infinite Switch
3SWITCH-ELMNT
4MAY 74007845
5WP74004153 Whirlpool Indicator Light
6WP22001948 Whirlpool Indicator Lens
7MAY 74011761
8WP74011580 Whirlpool Flex Control Knob
9MAY 74011697
10WP8507P234-60 Whirlpool Control Board
10WP59002061 Whirlpool Microwave Screw
11WP74011579 Whirlpool Control Knob
12MAY 74008573
13W10823692 Whirlpool Dual Radiant Element
14WP74011550 Whirlpool Stove Burner Control Knob
15SCREW (6ABX.25-ZN)
17W10823722 Whirlpool Surface Element
17MAY 74011986
18MAY W10185286
18SWITCH-INF
