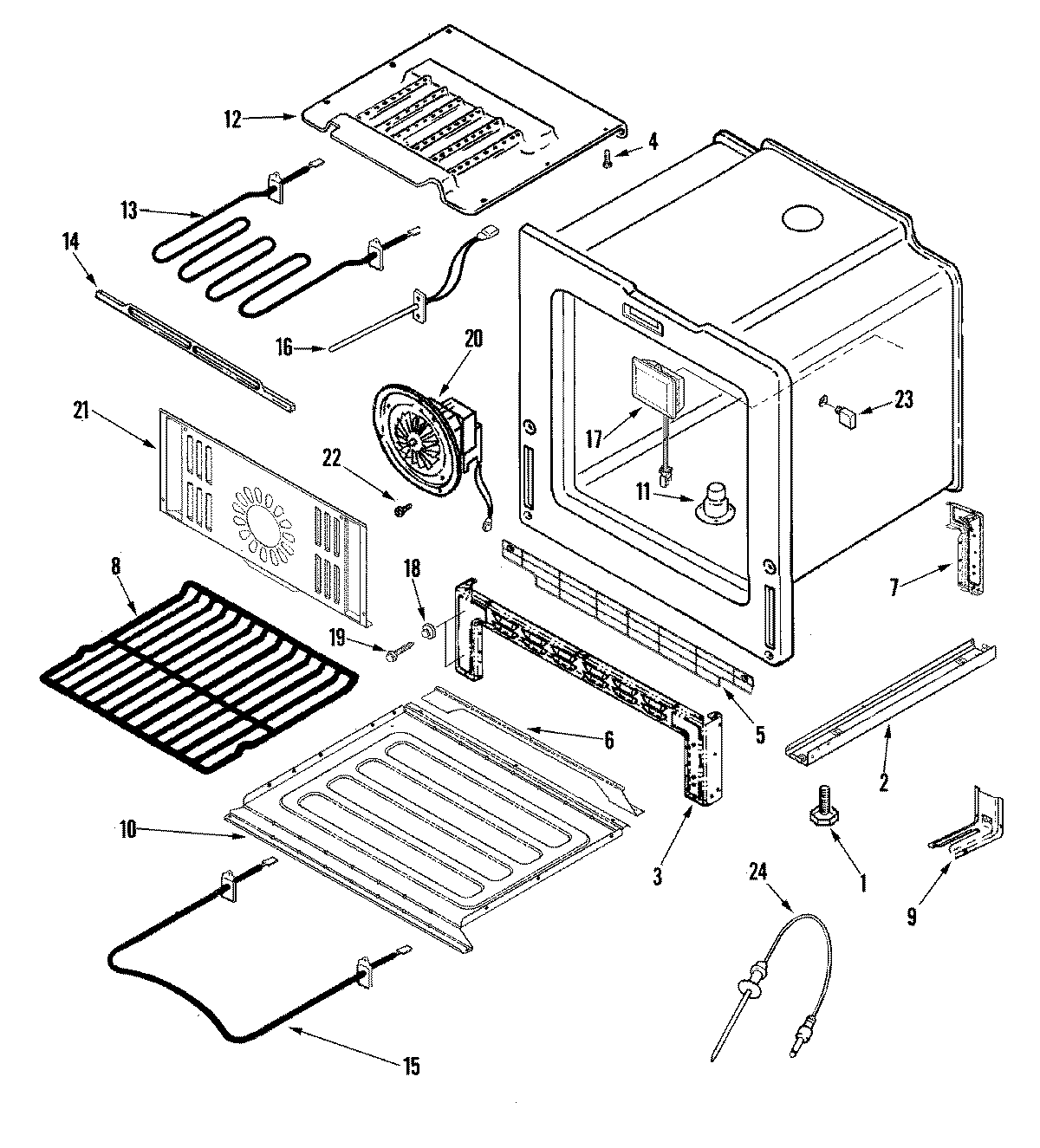

JES9900BAF 06 – OVEN/BASE

Products

Position	Product
1	WP74010805 Whirlpool Screw
2	4020W035-80 Whirlpool Bottom PE
3	PEDESTAL, FRONT
4	MAY 74010505
5	MAY 74011482
6	MAY 74005825
7	WP4020F033-80 Whirlpool Pedestal
7	MAY 74011515
8	WPW10282492 Whirlpool Oven Rack
9	WP7101P485-60 Whirlpool Anchor Tip
9	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
10	MAY 74005824
11	MAY 74010808
12	MAY 74008408
13	MAY 74011479
14	MAY 74003563
15	WPW10310274 Whirlpool Bake Element
16	12001656 Whirlpool Range Oven Temperature Sensor
17	MAY 74011220
18	MAY 8004P024-60
19	MAY 74007476
20	MAY 74011517
21	WPW10186795 Whirlpool Convection Baffle
22	WP74003976 Whirlpool Screw
23	WP7408P086-60 Whirlpool Receptacle
24	WP7430P038-60 Whirlpool Meat Probe Sensor
