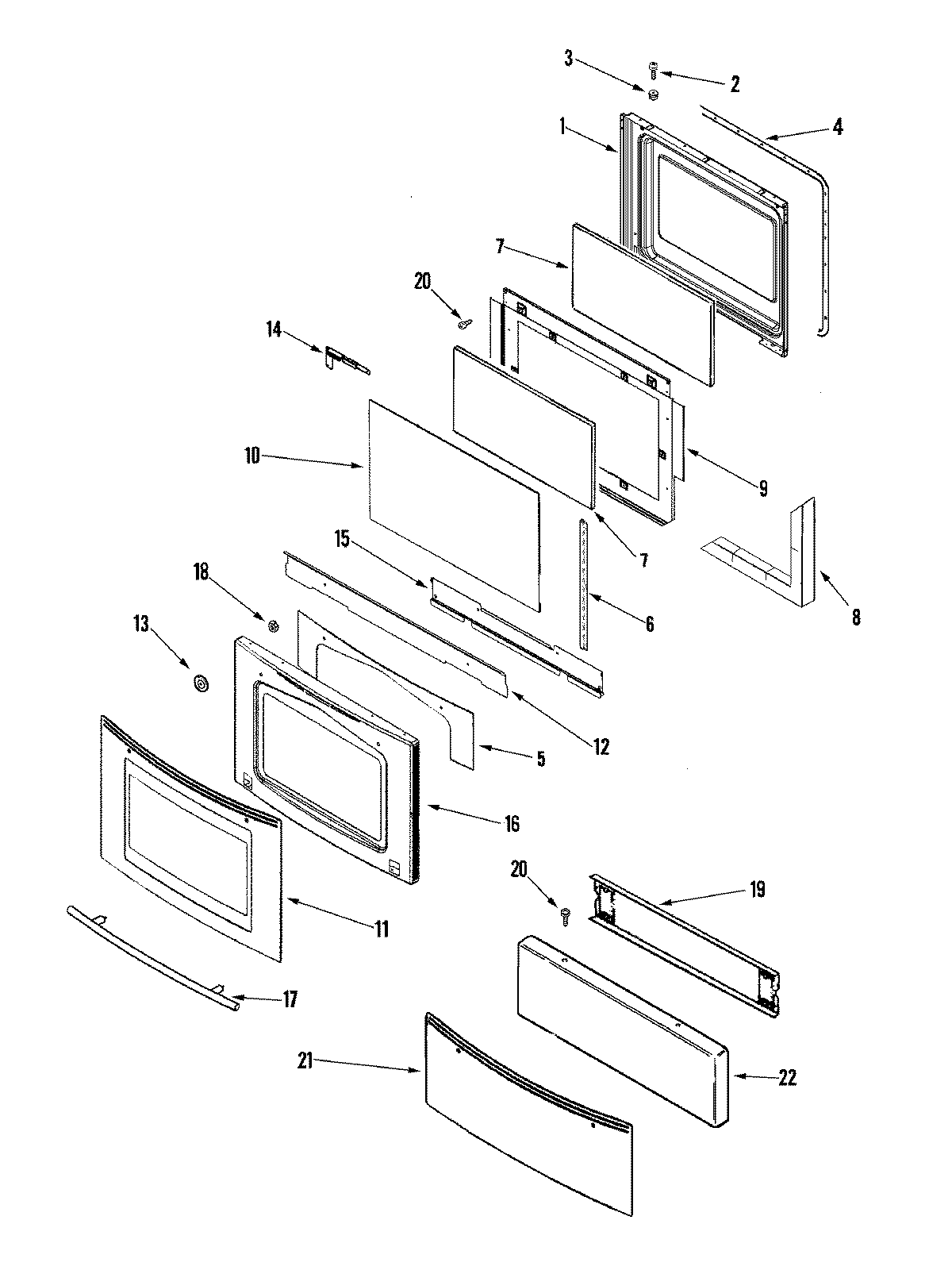

JES9900BCB 05 – DOOR/ACCESS PANEL (SER PRE 11)

Products

Position	Product
1	LINING, DOOR
2	WP98008545 Whirlpool Screw
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
5	MAY 74011509
6	3801F886-51 Whirlpool Mounting Bracket
7	74003645 Whirlpool Range Oven Door Inner Glass
8	INSULATION, OVEN DOOR
9	3601F373-51 Whirlpool Baffle
10	GLASS, DOOR (INNER/COATED)
11	MAY 74011511
12	MAY 74011049
13	MAY 74009194
14	MAY 74011463
14	MAY 74011797
15	MAY 74011464
16	MAY 74011507
17	WP74008625 Whirlpool Door Handle
18	WP3400029 Whirlpool Dishwasher Nut
19	MAY 74011554
20	WP90767 Whirlpool Screw
21	MAY 74011543
22	WP2416F086-70 Whirlpool Panel Assembly
