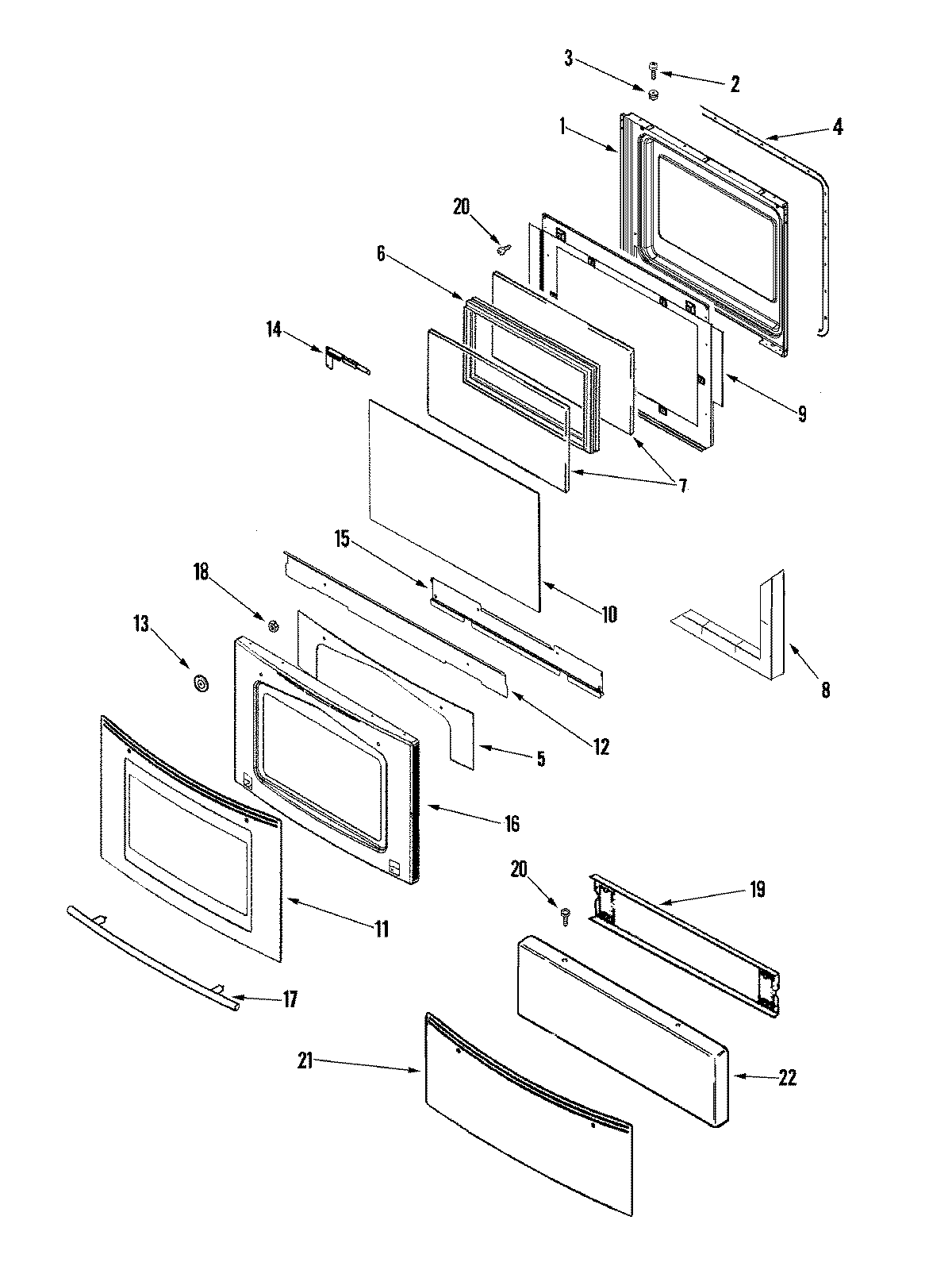

JES9900BCS 04 – DOOR/ACCESS PANEL

Products

PositionProduct
1MAY 74003642
2WP98008545 Whirlpool Screw
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5MAY 74011509
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8INSULATION, OVEN DOOR
9MAY 74011339
10GLASS, DOOR (INNER/COATED)
11MAY 74011542
12MAY 74011049
13MAY 74009194
14MAY 74011503
14MAY 74011504
15MAY 74007215
16MAY 74011507
17WP74008625 Whirlpool Door Handle
18WP3400029 Whirlpool Dishwasher Nut
19MAY 74011554
20WP90767 Whirlpool Screw
21WPW10297248 Whirlpool Drawer Panel
22WP2416F086-70 Whirlpool Panel Assembly
