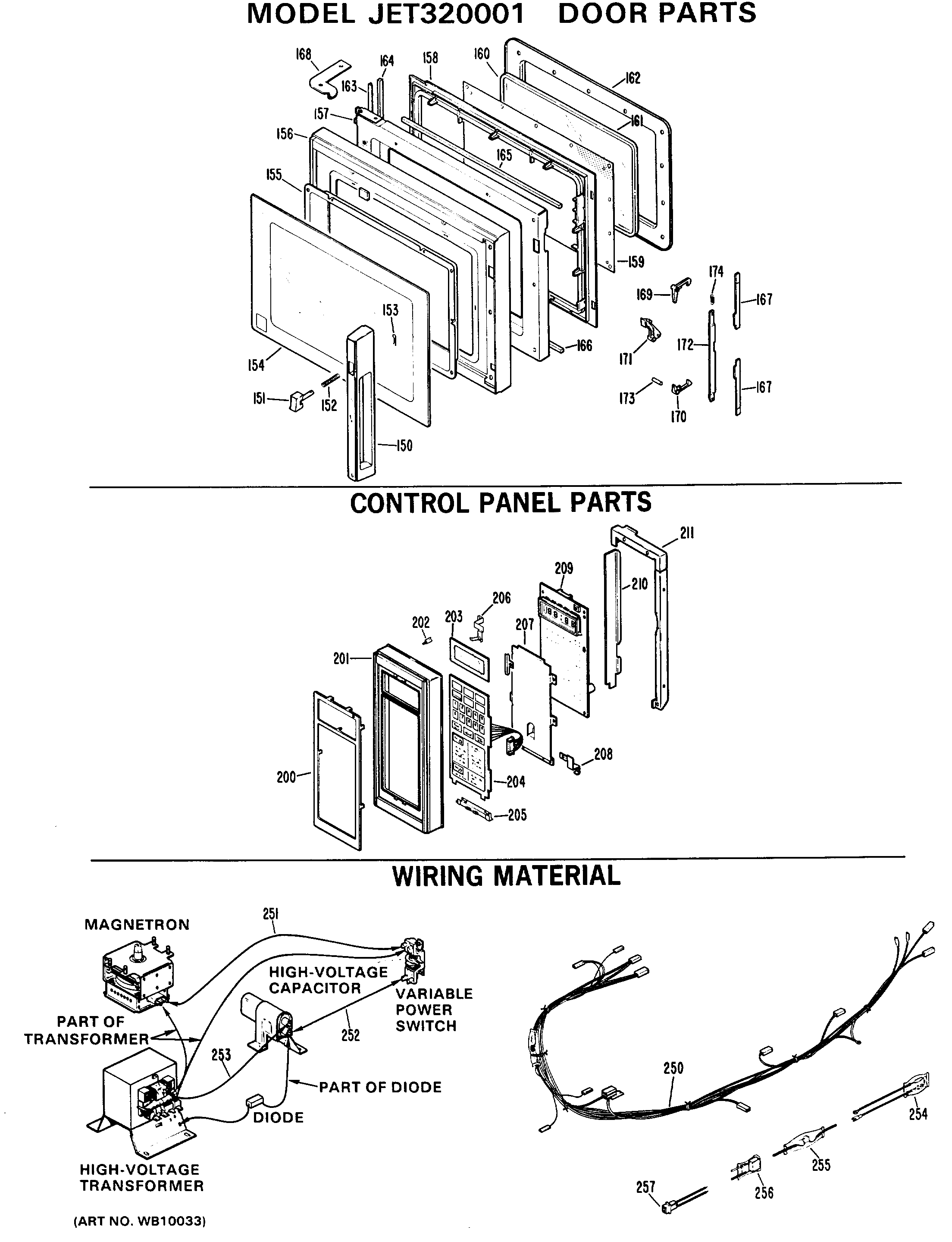

JET320001 DOOR PARTS

JET320001 DOOR PARTS

Written by

in

JET320001 DOOR PARTS

Products

Position	Product
150	GEN WB15X5136
151	GEN WB03X5622
152	GEN WB09X5097
153	PIN WIRE
154	GEN WB36X5475
155	BRKT FRAME
156	GEN WB56X5887
157	LINER & CHOKE ASM
158	GEN WB55X5239
159	GEN WB02X7169
160	GEN WB36X5474
161	GEN WB02X7168
162	SCREW MTG FRAME
162	GEN WB55X5238
163	FERRITE RUBBER LH
164	GEN WB02X7170
165	FERRITE RUBBER TOP
166	FERRITE RUBBER BOTTOM
167	FERRITE RUBBER RH
168	GEN WB10X5143
169	GEN WB10X5144
170	GEN WB10X5145
171	GEN WB10X5147
172	GEN WB10X5146
173	GEN WB02X7175
174	GEN WB09X5096
200	TRIM
201	TRIM CONTROL
202	GEN WB03X5623
203	GEN WB36X5476
204	GEN WB27X5359
205	GEN WB02X7176
206	GEN WB02X7180
207	GEN WB02X7178
208	GEN WB02X7177
209	GEN WB27X5358
210	GEN WB02X7181
211	BRACKET
250	WIRE HARNESS
251	LEAD WIRE WITH PROTECTOR
252	GEN WB17X5082
253	GEN WB17X5083
254	GEN WB27X5259
255	VARISTOR ASM IN LEAD ASM
256	SPARK KILLER ASM IN HARN
257	LEAD WIRE (SOLENOID)
9999	GEN WB01X5604
9999	GEN WB01X5606
9999	GEN WB01X5607
9999	GEN WB01X5608
9999	GEN WB01X5610
9999	GEN WB01X5611
9999	UPPER HEATER PANEL SCREW
9999	WAVE GUIDE REF 75 NUT M4
9999	GEN WB01X5590
9999	GEN WB01X5589
9999	SHAFT WASHER M4
9999	WAVE GUIDE REF 75 SCREW
9999	FAN MOTOR SCREW 4X8
9999	WASHER
9999	GEN WB01X5603
9999	GEN WB01
9999	GEN WB01X5593
