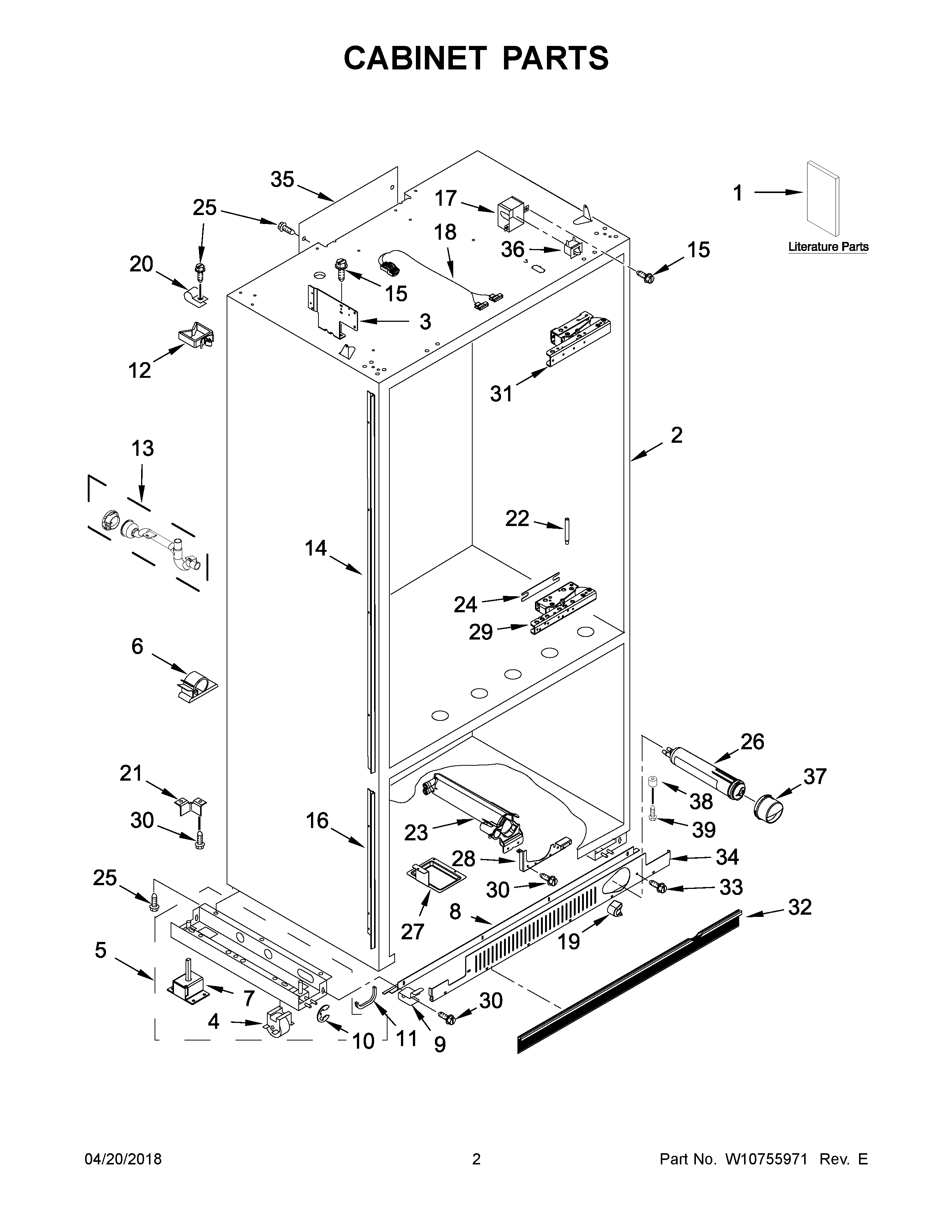

JF36NXFXDE00 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1D	MAY W10735232
1	MAY W10728796
1B	MAY W10600683
1C	MAY W10717764
2	LINER (NOT A SERVICEABLE PART)
3	BRACKET, GRILLE LEFT HAND (GREY)
3A	BRACKET, GRILLE RIGHT HAND (GREY)
4	MAY W10138054
5	SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
5A	SUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
6	CLIP
7	LEVELER ASSY
8	MAY W10634858
9	Mounting Stud, Grille
10	Ring, Retainer
11	GROMMET, CROSSOVERTUBE
12	Wire Clip (5)
13	MAY W10702350
14A	MAY W10687582
14	MAY W10687588
15	Screw
16A	MAY W10687583
16	MAY W10714137
17A	COVER, SWITCH (RH)
17	COVER, SWITCH (LH)
18	MAY W10740131
19	Button, Filter (Black)
20	MAY 2221070
21	Bracket, Support Base (Rear) (2)
22	Pin-Stop, Door
23	MAY W10121140
24	MAY W10291661
25	SCREW
26	Filter, Water
27	Tray, Drip Filter
28	MAY W10674648
29	HINGE, BOTTOM (GREY)
30	MAY W10001250
31	HINGE (TOP) LEFT HAND (GREY)
31A	HINGE (TOP) RIGHT HAND (GREY)
32	MAY W10188547
33	MAY W10005050
34	MAY W10189196
35	Cover, Rear
36	SWITCH, LIGHT
37	CAP, WATER FILTER (BLACK)
38	Spacer, Door-Skin (Top)
39	MAY 9741232
