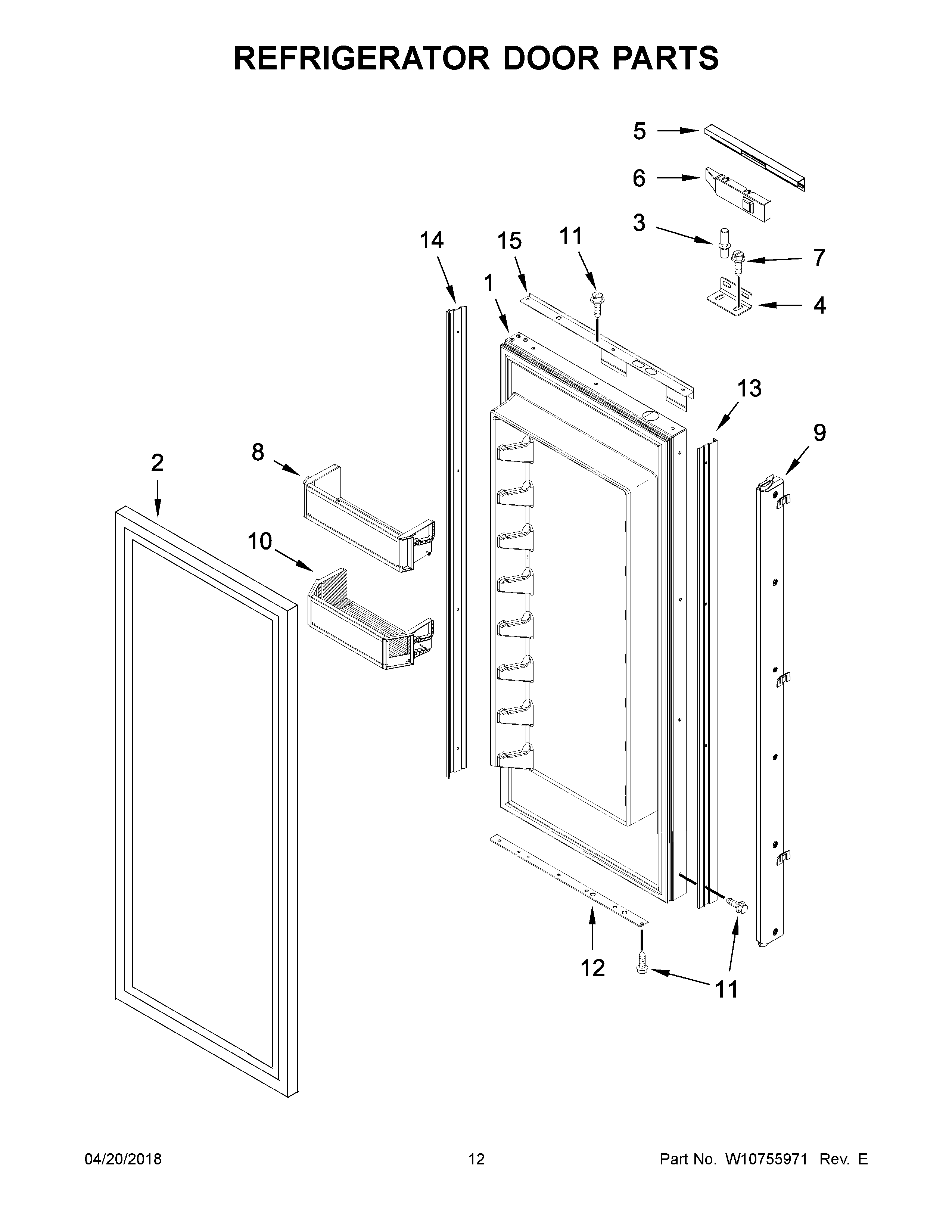

JF36NXFXDE00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
NIMAT, DOOR BIN
NILINER (NOT A SERVICEABLE PART)
1ADOOR, REFRIGERATOR (INCLUDES ITEM 2) (RIGHT HAND)
1DOOR, REFRIGERATOR (INCLUDES ITEM 2) (LEFT HAND)
2GASKET, DOOR (BLACK)
3Pin-Door, Top
4BRACKET, PANEL MOUNTING (GREY)
5ACOVER, DOOR (TOP) RIGHT HAND (GREY)
5COVER, DOOR (TOP) LEFT HAND (GREY)
6INSERT, DOOR ARM TOP (GREY)
6AINSERT, DOOR ARM BOTTOM (GREY)
7SCREW 10-32 X 1/2
8BIN, DOOR (SHALLOW)
9ASSEMBLY, MULLION (GREY)
10BIN, DOOR (GALLON)
11Screw, 8-15 x .500 (Black)
12ATRIM, DOOR (BOTTOM) RIGHT HAND (GREY)
12TRIM, DOOR (BOTTOM) LEFT HAND (GREY)
13TRIM, DOOR (HANDLE SIDE) LEFT HAND (GREY)
13ATRIM, DOOR (HANDLE SIDE) RIGHT HAND (GREY)
14TRIM, DOOR (HINGE SIDE) (GREY)
15TRIM, DOOR (TOP) LEFT HAND (GREY)
15ATRIM, DOOR (TOP) RIGHT HAND (GREY)
